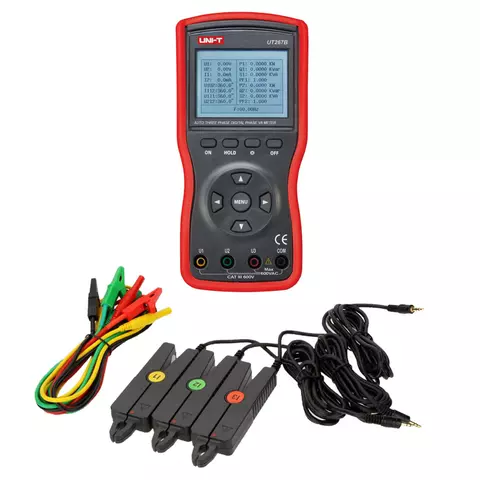

3-phase Digital Clamp Meter UNI-T UT267B

id: 844698
2 kg
Availability in stock: HK
Warranty: 24 month (s)
Designed for measuring three-phase AC voltage and current, phase angles between voltages, currents or both, frequency, phase sequence, active, reactive and apparent power, power factor, sum of current vector.
USD 929.50
Add to cart
USD 929.50
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

UNI-T UT267B is a powerful 3-phase digital clamp meter which is designed for measuring three-phase AC voltage and current, phase angles between voltages, currents or both, frequency, phase sequence, active, reactive and apparent power, power factor, sum of current vector.

Features

  • Measurement functions:
    • AC voltage
    • AC current
    • phase angles
    • phase sequence
    • frequency
    • active, reactive and apparent power
    • power factor
    • sum of current vector
  • Data hold
  • USB data transmission
  • Auto power-off
  • Auto ranging
  • Low battery indication

Technical Specifications

Display LCD, 240×160
AC current Range 0.0 mA ~ 20.0 A
Accuracy ±(1.5%+3)
AC voltage Range 0.00 V ~ 600 V
Accuracy ±(1.5%+3)
Frequency Range 45 Hz ~ 65 Hz
Accuracy ±(2%+3)
Active power Range 0.0 W ~ 12 kW
Accuracy ±(3%+3)
Apparent power Range 0.0 VA ~ 12 kVA
Accuracy ±(3%+3)
Reactive power Range 0.0 VAR ~ 12 kVAR
Accuracy ±(3%+3)
Power factor -1 ~ +1
Phase angle 0.0° ~ 360°
Current vector 0 mA ~ 60.0 A
Phase sequence measurement Forward sequence: U1 → U2 → U3 or I1 → I2 → I3;
Reverse sequence: U1 → U3 → U2 or I1 → I3 → I2
Power 4 × 1.5 V battery
Dimensions 196 × 92 × 54 mm
Weight 550 g

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Sofware

Download UNI-T UT267B Sofware.

Package Contents

  • Clamp meter UNI-T UT267B (1 pc.)
  • Test leads (4 pcs.)
  • Current clamps (3 pcs.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Measured Values
  • AC voltage
  • AC
  • frequency
  • power
  • cos φ
Additional Functions
  • data hold
  • connection to PC (RS232)
  • automatic shutdown/sleep mode
Range Selection
  • auto range
Type
  • for AC
Jaw diameter
  • diameter 7.5 mm
AC Voltage
  • up to 600 V
AC
  • up to 20 A
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Temperature
  • no
Power
  • yes
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • USB
Diode test
  • no
Analog bar graph
  • no
DC Voltage
  • does not measure the DC voltage
Continuity test
  • no
Three-phase voltage measurement
  • yes
Three-phase current measurement
  • yes
Resistance
  • doesn't measure resistance
Frequency
  • up to 60 Hz
Digit Capacity
  • graphic display
NCV
  • no
Video
Youtube video
Youtube video
Delivery
Payment
Warranty
3 phase Digital Clamp Meter UNI T UT267B - Short description
