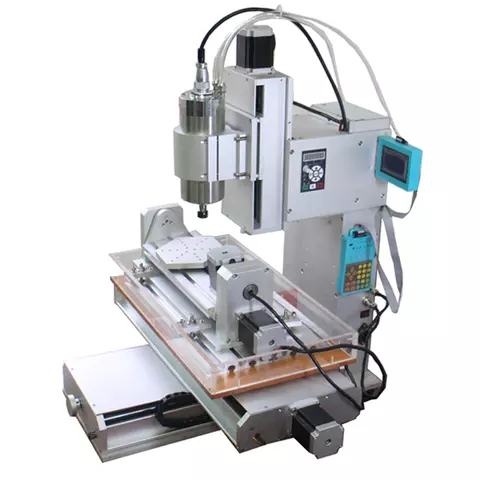

5-axis CNC Router Engraver ChinaCNCzone HY-3040 (2200 W)
id: 861475
5-axis CNC Router Engraver ChinaCNCzone HY-3040 (2200 W)
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
100 kg 220 V Warranty: 6 months
5-axis CNC Router Engraver ChinaCNCzone HY-3040. Integrated high-speed microcomputer. Suitable for iron, brass, wood, plastic, PVC, plywood etc. 2200 W water cooled spindle. Eight-speed motor drive. High accuracy, smooth run. Read more
Discontinued
Description
CNC Router Engraver ChinaCNCzone HY-3040 (2200 W) is a powerful device designed for professional work with iron, brass, wood, plastic, PVC, plywood etc.
Features
- Integrated high-speed intelligent control chip.
- 2200 W water cooled spindle.
- External LCD monitor connectable.
- Manual data input for automatic run.
- 8-speed motor drive.
- Overheating protection.
- Auto checking function.
- Automatic semi-flow control.
- Built-in switching power supply.
- High accuracy, smooth run.
- Simple installation and operation.
Technical Specifications
| Dimensions | 520 × 660 × 580 mm |
| Effective working area | 300 × 400 × 150 mm |
| Stepping motor type | 57 × 78 two-phase 3.5 A, low-noise |
| A-axis and B-axis rotation speed | 0-180 RPM |
| Processing speed | 0-4000 mm/min |
| Operating voltage | AC 110/220 V |
| Switching power supply | integrated 24 V, 350 W |
| Weight | 90 kg |
Package Contents
- CNC Router Engraver ChinaCNCzone HY-3040 (2200 W) – 1 pc.
- User guide – 1 pc.
