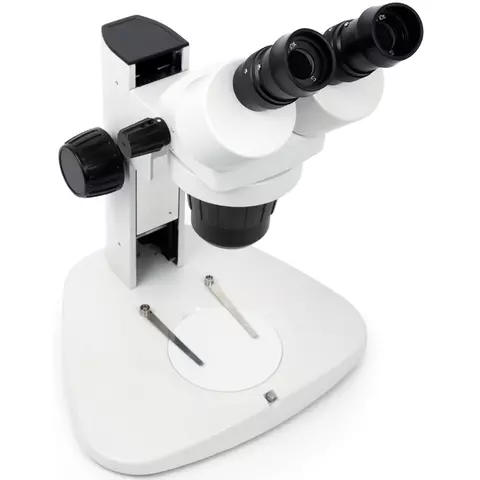

Binocular Microscope XTX-series LBX

LBX Binocular Microscope Features

• Sharp stereo erect image over a wide field view.
• 45° inclined and rotatable binocular head mounted on curved arm stand.
• Binocular head rotating angel: 360°
• Illumination: inside incident light, brightness adjustable.
• Electric apparatus has CE approval.
• Power supply 110 V/60 Hz or 220 V/50 Hz

LBX Binocular Microscope Technical Specification

• Objective zoom range: 0.75x-5x
• Eyepiece: SWF10xφ23
• Zoom ratio 1:6.7
• Total magnification: 7.5x-50x
• Working distance: 113 mm
• Focusing range: 80 mm
• Visual field: Ø33 mm - Ø 5 mm
• Lux of incident LED light: 6800 lux
• Lux of transmitted LED light: 2100 lux
• Interpupillary distance: 55-75 mm.
• Left ocular-tube diopter adjustment +/-5dp.
