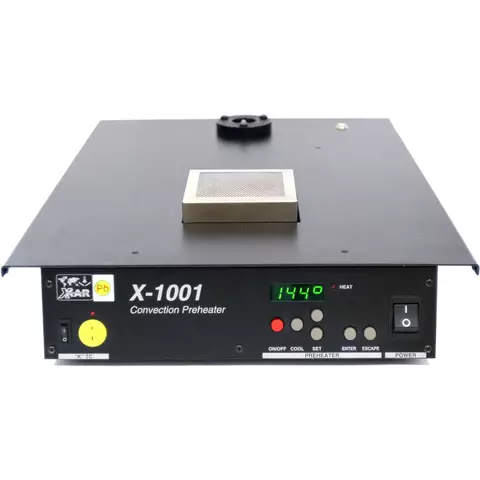

BOKAR X-1001 PREHEATER
id: 811833
BOKAR X-1001 PREHEATER
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 1210.00
Overview
10.5 kg 220 V Warranty: 12 months
Preheat area: 52 cm²;Preheat temperature: 60-150 °C; Average PCB preheat time to 150 °C: < 2 min. Read more
Buy wholesale and save
Description
The most advanced and powerful pre-heater for SMT REWORK and REPAIR offering full Process Control, increased rework speed, board protection and operator convenience. The X-1001 was designed to reduce the workspace required for SMT Rework and Repair. The Pre-heater Units are microprocessor controlled to maintain accuracy and also to extend the life of the heating element.
FEATURES OF BOKAR X-1001 PREHEATER
- Upgradeable Firmware via DataStore Port without opening the unit
- DataStore Port allows customization of settings and changes by simple connection to PC via X-KAR or other RS-USB converter and downloading the upgraded or customized firmware received by e-mail from the Factory.
- Control of the AIR Volume by the user from Front Panel Controls
- Unmatched accuracy in setting the desire temperature on the surface of the reworked PCB
SPECIFICATION OF BOKAR X-1001 PREHEATER
| Overall System | MODEL | X-1001 |
X-1001S |
| Input Voltages | 220-240VAC |
||
| Power Consumption | Max. 1080VA |
||
| Weight | 5,5 kg (12.1 lbs.) |
||
| System dimensions | 19.1" x 11.4" x 3.2" (487 x 291 x 82 mm) |
||
|
Pre-heater Section |
Max. Power | 1050 VA |
|
| Preheat temperature measured on a PCB | 140-302 °F (60-150 °C) |
||
| Preheat area | More than 52 cm² | More than 13 cm² | |
| Average PCB preheat time to 150B°C | Less than 2 min. | ||
PACKAGE CONTENTS OF BOKAR X-1001 PREHEATER
- X-1001 Base Unit
- XK-TC 26/39 "K" Type Thermocouple .
- AS3-B ESD grounding cord
- AML-301A wireless"+" wrist strap
- One Power cord: ( P/N XPC-1 for 220V units)
- Manual
- Guarantee card
