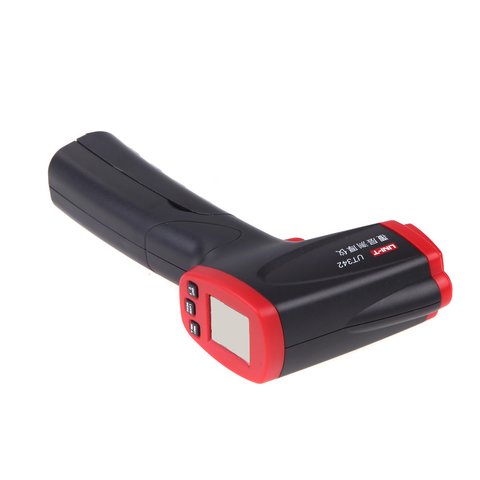

Coating Thickness Gauge UNI-T UT342
sales team
UNI-T UT342 – can accurately measure the coating thickness of magnetic conductive matrix and non-magnetic conductive matrix (for example, iron surface and aluminum surface coatings) without damaging the coating. It can be used in manufacturing, metal processing, chemical industry and other sectors.
UNI-T UT342 is often used to measure and control the vehicle paint film. It is possible to find the additional layers of paint and track the hidden repair works.
Features
- LCD display
- Zeroing and two-point calibration
- Probe errors correction
- Single and continuous modes
- µm (metric) / mil (imperial) measurement units selectable
- MAX/MIN modes
- 2000-group data storage
- Manual/auto storage modes
- Data hold
- Auto power off
- LCD backlight
UNI-T UT342 – can accurately measure the coating thickness of magnetic conductive matrix and non-magnetic conductive matrix (for example, iron surface and aluminum surface coatings) without damaging the coating. It can be used in manufacturing, metal processing, chemical industry and other sectors.
UNI-T UT342 is often used to measure and control the vehicle paint film. It is possible to find the additional layers of paint and track the hidden repair works.
Features
- LCD display
- Zeroing and two-point calibration
- Probe errors correction
- Single and continuous modes
- µm (metric) / mil (imperial) measurement units selectable
- MAX/MIN modes
- 2000-group data storage
- Manual/auto storage modes
- Data hold
- Auto power off
- LCD backlight
Technical Specifications
| Range | Accuracy | |
|---|---|---|
| Iron matrix measurement | 0 μm ~ 55 μm | ±3 dgt |
| 56 μm ~ 1000 μm | ±(3.0%+1 dgt) | |
| Aluminum matrix measurement | 0 μm ~ 55 μm | ±3 dgt |
| 56 μm ~ 1000 μm | ±(3.0%+1 dgt) | |
| Resolution | 1 μm | |
| General Characteristics | ||
| Power supply | 9 V battery (6LF22) | |
| Display | LCD, 22 × 22 mm | |
| Size | 153 × 110 × 40 mm | |
| Weight | 144 g | |
Package Contents
- Battery — 1 pc.
- Standard membrane slice — 1 pc.
- Iron matrix slice — 1 pc.
- Aluminum matrix slice — 1 pc.
- Carrying bag — 1 pc.
