Large high-precision clamp meter designed for the measurement of AC current leakage, current and voltage. Range: 0.001 mA - 2000 A. Read more
Frequently bought together
Description

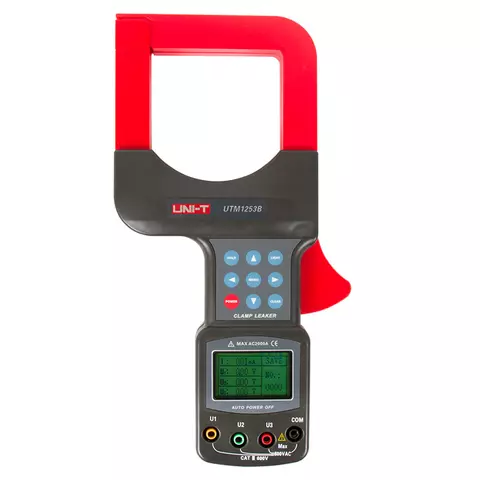

UNI-T UT253B is a large high-precision clamp meter designed for the measurement of AC current leakage, current and voltage.
Features
- Data hold function.
- Auto ranging.
- Auto power-off function.
- Low battery display.
- Built-in RS232 interface.
Technical Specifications
| Basic functions | Range | Accuracy |
|---|---|---|
| Current leakage | 0.00 mA～300 A | ±(1.5%+3) |
| 300 A～1200 A | ±(2%+3) | |
| 1200 A～2000 A | ±(3%+3) | AC voltage | 0.00 V～600 V | ±(1.5%+3) |
| Jaw size | 80 × 80 mm | |
| General characteristics | ||
| Battery | 4 × 1.5 V battery | |
| Display | LCD, 128×64 | |
| Weight | 1 kg | |
| Dimensions | 275 × 145 × 40 mm | |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- UNI-T UT253B current leakage clamp meter (1 pc.)
- Test leads (4 pcs.)
- Carrying case (1 pc.)
- RS232 data cable (1 pc.)
- Software CD (1 pc.)
- User manual (1 pc.)
Note! Batteries are not included in the package.
