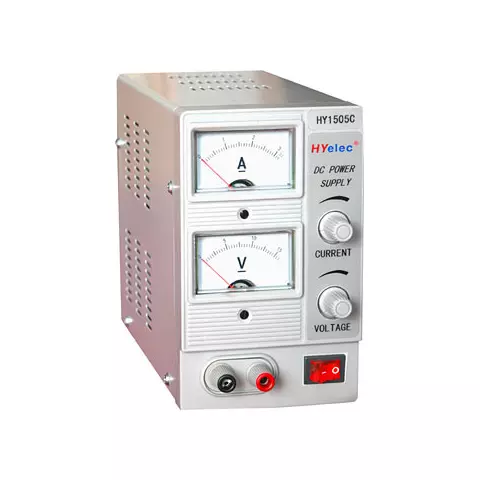

DC Power Supply HYelec HY1505C

id: 11146
DC Power Supply HYelec HY1505C
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 58.00
Contact
sales team
Overview
Brand: HYelec
3.65 kg 220 V Warranty: 6 months
Voltage from 0 to 15 V and current from 0 to 5 A. 2 analogue indicating scales (voltmeter and amperemeter).
USD 58.00
Contact
sales team
Compare
Compare
USD 58.00
Contact
sales team
Impossible to estimate the shipping cost
Description

Power supply HY1505C provides electronic devices and schemes with power supply by continuous voltage in the range from 0 to 15 V and by current in the range of 0 to 5 A.

Features

Read more
Description

Power supply HY1505C provides electronic devices and schemes with power supply by continuous voltage in the range from 0 to 15 V and by current in the range of 0 to 5 A.

Features

  • Indication: 2 analogue scales.
  • Protection: reverse polarity protection, current restricted and short-circuit protection.
  • Parameter adjustment by means of potentiometers.
  • Output current and voltage are controlled by amperemeter and voltmeter with movable-pointer indicating scales. Measurement error is less than 2,5 %.
  • Output terminals from which you can turn off the voltage and ground connector are located in the lower part of HY1505C faceplate .
  • The device is powered from AC mains 220 V.
  • Switching on/off by means of key switch.

Technical specifications

Output voltage, V 0 - 15
Output current, A 0 - 5
Ripple level By current , mA ≤ 3
By voltage, mV ≤ 0,5
Load effect, % By current , mA ≤ 0,2 + 5 mA
By voltage , mV ≤ 0,01 + 5 mV
Supply voltage effect, % By current, mA ≤ 0,2 + 1 mA
By voltage, mV ≤ 0,01 + 1 mV
Output current and voltage indication 2 analogue indicating scales
Dimensions, mm 230 × 160 × 95
Input voltage 104~127 V AC (60 Hz), 207~253 V AC (50 Hz)
Power supply ~ 220 / 110 V ± 10 %
Weight 3,650
Specifications
Type
  • transformer
Number of channels
  • single-channel
Max. Voltage
  • up to 15 V
Max. Current
  • up to 5 A
Indicator type
  • analog
