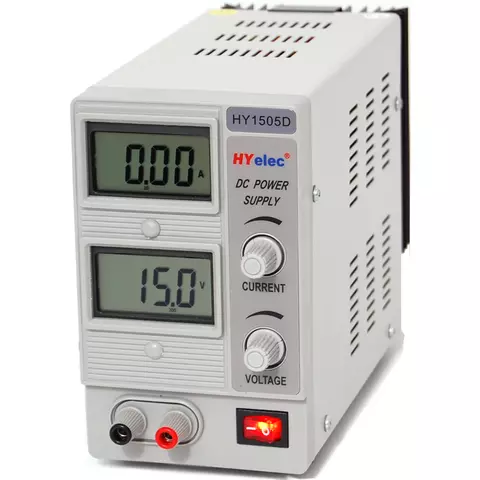

DC Power Supply HYelec HY1505D ( LCD display ; 0-15V;0-5A )
id: 11148
DC Power Supply HYelec HY1505D ( LCD display ; 0-15V;0-5A )
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 64.00
Overview
Brand:
HYelec
3.61 kg 220 V Warranty: 6 months
Indication: current/voltage 3-digit LED-displays.Short-circuit protection. Read more
USD 64.00
Buy wholesale and save
Description
DC Power Supply HYelec HY1505D ( LCD display ; 0-15V;0-5A ).
Features
- Indication: current/voltage 3-digit LCD-displays.
- Smooth adjustment of output parameters: Coarse/Fine.
- Current /voltage stabilized mode.
- Short-circuit protection.
- Accuracy: Voltage ±1%; Current: ±2%.
- Dimensions: 230 × 160 × 95 mm.
Technical specifications
| Output valtage | 0~15V set-on accuracy 0.1V |
| Output current: | 0~5A, set-on accuracy 0.01A |
| Ripple | ≤ 0.5mVrms |
| Load Effect: | ≤ 0.01% ±3mV |
| Line voltage Effect: | ≤ 0.01% ±2mV |
| Power supply: | 220V ±10% |
Specifications
| Type |
|
| Number of channels |
|
| Max. Voltage |
|
| Max. Current |
|
| Indicator type |
|
