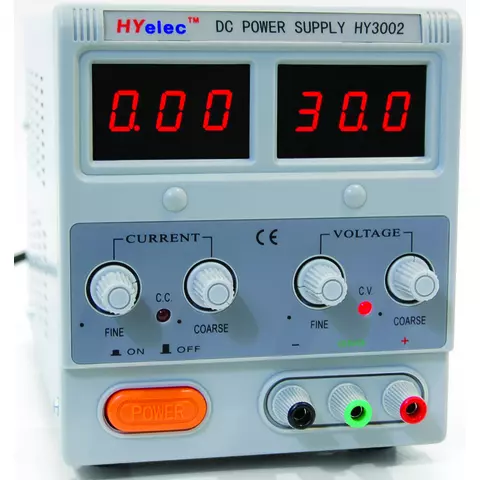

DC Power Supply HYelec HY3002 (LED display; 0-30V; 0-2A)

id: 6216
DC Power Supply HYelec HY3002 (LED display; 0-30V; 0-2A)
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 75.00
Contact
sales team
Overview
Rate product
Brand: HYelec
4.5 kg 220 V Warranty: 6 months
Ensures power supply of electronic devices and schemes by continuous voltage from 0 to 30V and by current from 0 to 2 A. 3-digits red LED indicators. Short circuit protection. Read more
USD 75.00
Contact
sales team
Compare
Compare
USD 75.00
Contact
sales team
Impossible to estimate the shipping cost
Description

Power supply unit HY3002 provides electronic devises and schemes with power supply by continuous voltage in the range from 0 to 30V and by current in the range from 0 to 2 A.

Features

  • Parameters adjustment is made by means of potentiometers. There are two adjusters to control each parameter (Coarse/Fine).
  • Output current value and output voltage value are displayed on 3-digits red colour LED-indicators.
  • There is a fault protection of the secondary circuit in the power supply HY3002. In case of shutdown, appropriate LED indicators flash on by current or by voltage.
  • Output terminals, from which one can turn off the voltage and ground connector, are in the bottom of power supply faceplate HY3002.
  • Power supply is made from the alternating current network 220 V. To turn on/off power supply source HY3002 the big key switch with safe position fixation is used.

Technical specifications

Output voltage, V 0 - 30
Accuracy of output voltage system , V 0,1
Ripple level By current, m A ≤ 3
By voltage, m V ≤ 0,5
Load effect, % By current, m A ≤ 0,2 + 2 mA
By voltage ≤ 0,01 + 3 mV
Supply voltage effect, % By current, m A ≤ 0,2 + 2 mA
By voltage ≤ 0,01 + 2 mV
Output current, A 0 - 2
Accuracy of output current system, A 0,01
Indication of output current value and output current voltage LED-displays
Overload protection By current, short-circuit protection
Power supply, V ~ 220 / 110 V ± 10 %
Specifications
Type
  • transformer
Number of channels
  • single-channel
Max. Voltage
  • up to 30 V
Max. Current
  • up to 2 A
Indicator type
  • LED indicators
