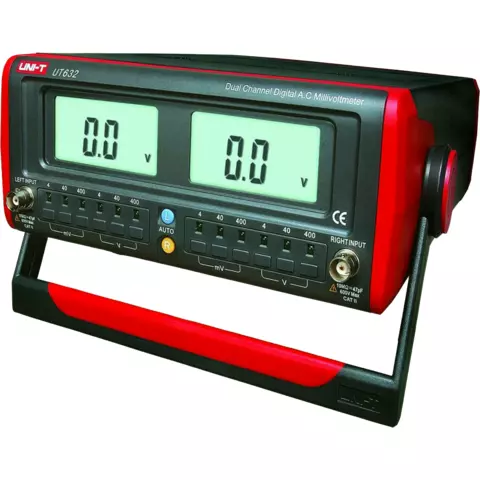

Digital AC Voltmeter UNI-T UT632

id: 819450
Digital AC Voltmeter UNI-T UT632
Overview
Description
Video
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
4.7 kg 220 V Warranty: 24 months
This digital voltmeter measures AC voltage within 40mV-400V range.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

This digital voltmeter measures AC voltage within 40mV-400V range.

UNI-T UT632 Digital AC Voltmeter Features

  • AC voltage measurements within 4mV-400V range
  • True RMS measurements
  • Auto/Manual ranging

Video

Youtube video

UNI-T UT632 Digital AC Voltmeter Technical Specifications

Display LCD, 157 × 36 mm
AC Voltage
Range Best accuracy
1KHz 200Hz~500KHz 10Hz~200Hz
500KHz~2MHz
4mV (1%+15) (1%+0.1) (2%+0.1)
40mV/400mV/4V/40V/400V (0.5%+15) (3%+20) (5%+20)
Power 220V ± 10% or 110V ± 10%
(50Hz ± 4%, 7VA)
Dimensions (H × W × D), mm 370 × 222 × 106
Weight, kg 3

UNI-T UT632 Digital AC Voltmeter Package contains

  • AC voltmeter UT632
  • Test lead
  • 3-power lead
  • USB interface cable
  • CD with software
  • User manual
Read more
Description

This digital voltmeter measures AC voltage within 40mV-400V range.

UNI-T UT632 Digital AC Voltmeter Features

  • AC voltage measurements within 4mV-400V range
  • True RMS measurements
  • Auto/Manual ranging

Video

Youtube video

UNI-T UT632 Digital AC Voltmeter Technical Specifications

Display LCD, 157 × 36 mm
AC Voltage
Range Best accuracy
1KHz 200Hz~500KHz 10Hz~200Hz
500KHz~2MHz
4mV (1%+15) (1%+0.1) (2%+0.1)
40mV/400mV/4V/40V/400V (0.5%+15) (3%+20) (5%+20)
Power 220V ± 10% or 110V ± 10%
(50Hz ± 4%, 7VA)
Dimensions (H × W × D), mm 370 × 222 × 106
Weight, kg 3

UNI-T UT632 Digital AC Voltmeter Package contains

  • AC voltmeter UT632
  • Test lead
  • 3-power lead
  • USB interface cable
  • CD with software
  • User manual
