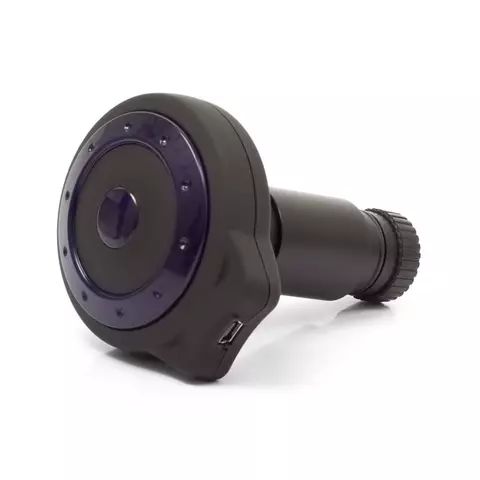

Digital Camera Eyepiece HDCE-50C

id: 828286
Digital Camera Eyepiece HDCE-50C
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 220.00
Contact
sales team
Overview
0.35 kg Warranty: 6 months
ST-series 5.0 Mpix digital eyepiece for microscopes. 2560 x 1944 resolution, 3.7 f/s frame rate. USB 2.0.
USD 220.00
Contact
sales team
Compare
Compare
USD 220.00
Contact
sales team
Impossible to estimate the shipping cost
Description

5.0 Mpix HDCE-50C digital camera eyepiece is compatible with any standard biological microscope, metallography microscope or stereomicroscope. HDCE-50C transfers digital image of the object to PC, capturing still photos of 2560 × 1944 pixels. The digital camera eyepiece can be connected to projection machine, CD rewriter or laptop.

Features

  • Advanced application software
  • MTF evaluation based optical system
  • Stable mounting
  • High resolution setting
  • Fits for the microscopes with fluorescent, halogen or LED lighting

Technical Specifications

Model HDCE-10C HDCE-30C HDCE-50C
Sensor parameters 1.2′, 1.3 Mpx CMOS 1.2′, 3.0 Mpx CMOS 1/2.5′, 5.0 Mpx CMOS
Maximum resolution 1280 × 1024 2048 × 1536 2560 × 1944
USB device USB 2.0
Frame rate 16 f/s at 1280 ×1024 resolution 7.5 f/s 3.7 f/s
Preview model 1280 ×1024, 640 × 480, 320 × 240 2048 ×1536, 1280 × 1024, 1024 × 768 -
Pixels size 5.2 µm × 5.2 µm 3.18 µm × 3.18 µm 2.2 µm × 2.2 µm
Sensitivity 1.8 V/lux·sec at 550 nm 0.9 V/lux·sec TBD
S/N ratio - 40 dB
Dynamic range - 60 dB
White balance auto
Operating system Windows (XP2, Vista)
Basic PC requirements Pentium IV 2.0 GHz or more
512 MB RAM or more
USB 2.0 port
17′ or more monitor
Pentium IV 2.0 GHz or more
1024 MB RAM or more
USB 2.0 port
17′ or more monitor

Package

  • Digital camera eyepiece HDCE-50C
  • Adaptor ring
  • USB 2.0 cable
  • CD with drivers and software
Read more
Description

5.0 Mpix HDCE-50C digital camera eyepiece is compatible with any standard biological microscope, metallography microscope or stereomicroscope. HDCE-50C transfers digital image of the object to PC, capturing still photos of 2560 × 1944 pixels. The digital camera eyepiece can be connected to projection machine, CD rewriter or laptop.

Features

  • Advanced application software
  • MTF evaluation based optical system
  • Stable mounting
  • High resolution setting
  • Fits for the microscopes with fluorescent, halogen or LED lighting

Technical Specifications

Model HDCE-10C HDCE-30C HDCE-50C
Sensor parameters 1.2′, 1.3 Mpx CMOS 1.2′, 3.0 Mpx CMOS 1/2.5′, 5.0 Mpx CMOS
Maximum resolution 1280 × 1024 2048 × 1536 2560 × 1944
USB device USB 2.0
Frame rate 16 f/s at 1280 ×1024 resolution 7.5 f/s 3.7 f/s
Preview model 1280 ×1024, 640 × 480, 320 × 240 2048 ×1536, 1280 × 1024, 1024 × 768 -
Pixels size 5.2 µm × 5.2 µm 3.18 µm × 3.18 µm 2.2 µm × 2.2 µm
Sensitivity 1.8 V/lux·sec at 550 nm 0.9 V/lux·sec TBD
S/N ratio - 40 dB
Dynamic range - 60 dB
White balance auto
Operating system Windows (XP2, Vista)
Basic PC requirements Pentium IV 2.0 GHz or more
512 MB RAM or more
USB 2.0 port
17′ or more monitor
Pentium IV 2.0 GHz or more
1024 MB RAM or more
USB 2.0 port
17′ or more monitor

Package

  • Digital camera eyepiece HDCE-50C
  • Adaptor ring
  • USB 2.0 cable
  • CD with drivers and software
Specifications
Die size
  • 5,0 MP
