Overview
Rate product
1 kg Warranty: 24 months
The reliable digital clamp meter which measures AC and DC voltage, AC current, resistance, frequency, temperature, and performs diode check and continuity test. Read more
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

This True RMS clamp meter measures AC/DC voltage and current, resistance, capacitance, frequency, NCV, and is also used to perform diode and continuity testing.
Availability in stock: HK
Shipping cost
ID: 891579 0.6 kg
True RMS digital clamp meter designed to measure AC/DC voltage, AC current, resistance, capacitance, NCV, and to perform diode and continuity testing.
Availability in stock: HK
Shipping cost
ID: 891578 0.6 kg
The tool used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, temperature, as well as to perform live wire/continuity/diode testing.
Availability in stock: HK
Shipping cost
ID: 898893 0.85 kg
Description

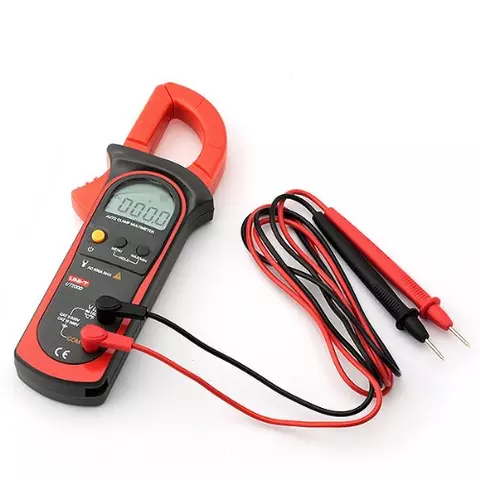

UNI-T UT200D is reliable digital clamp meter that is designed for measuring AC/DC voltage and AC current, resistance, frequency, temperature, and performing a diode check and continuity test.

UNI-T UT200D Digital Clamp Meter Features

  • Measuring functions:
    • AC/DC voltage
    • AC current
    • resistance
    • frequency
    • temperature
    • continuity test (with buzzer)
    • diode test
  • Data Hold function

UNI-T UT200D Digital Clamp Meter Techical Specifications

Display 5999 digit LCD, 35.6 × 18 mm
DC voltage Range 60 / 600 V
Accuracy ±(1.0%+3)
AC voltage Range 600 V
Accuracy ±(1.2%+5)
AC current Range 60 A / 600 A
Accuracy ±(2%+5)
Resistance Range 600 kΩ / 6 kΩ / 60 kΩ
Accuracy ±(1.0%+4)
Frequency Range 10 Hz ~ 60 kHz
Accuracy ±(1.0%+4)
Temperature Range -40 °C ~ 300 °C
Accuracy ±(2.0%+8)
Power 9 V battery (6F22)
Dimensions (H × W × D) 210 × 75.6 × 30 mm
Weight 300 g

Video

Youtube video

Youtube video

UNI-T UT200D Digital Clamp Meter Package Contents

  • UNI-T UT200D clamp meter (1 pc.)
  • Test lead (1 pair)
  • Temperature probe (1 pc.)
  • Battery (1 pc.)
  • Carrying case (1 pc.)
  • User manual (1 pc.)
Specifications
Digit Capacity
  • 5999
Type
  • for AC
Jaw diameter
  • diameter 28 mm
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Continuity test
  • yes
AC
  • up to 600 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
Frequency
  • up to 60 kHz
Resistance
  • up to 60 kΩ
NCV
  • no
