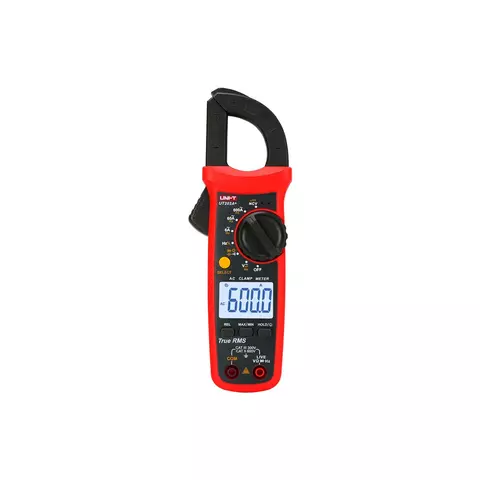

Digital Clamp Meter UNI-T UT202A+
id: 898458
Digital Clamp Meter UNI-T UT202A+
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 18.86
Overview
0.8 kg Warranty: 24 months
True RMS clamp meter which measures AC/DC voltage, AC current, resistance, capacitance, frequency, duty ratio, continuity, and also may be used for live/neutral wire detection and diodes testing. Read more
USD 18.86
Buy wholesale and save
You may also like
This True RMS clamp meter measures AC/DC voltage and current, resistance, capacitance, frequency, NCV, and is also used to perform diode and continuity testing.
Availability in stock:
HK
ID: 891579 0.6 kg
The tool used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, temperature, as well as to perform live wire/continuity/diode testing.
Availability in stock:
HK
ID: 898893 0.85 kg
Frequently bought together
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock:
HK
ID: 834649 0.061 kg
Description
UNI-T UT202A+ is a True RMS clamp meter which measures AC and DC voltage, AC current, resistance, capacitance, frequency, duty ratio, continuity, and also may be used for live/neutral wire detection and diodes testing.
Features
- Functions:
- AC current;
- AC/DC voltage;
- resistance;
- capacitance;
- frequency;
- duty ratio;
- live/neutral wire detection;
- continuity test;
- diode test.
- True RMS measurement.
- Audio visual NCV detection.
- Large LCD.
- Full-featured false detection protection for up to 600 V energy surges; overvoltage and overcurrent alarm functions.
- The power consumption of the meter is about 1.8 mA. The circuit has an automatic power saving function. The consumption in sleep state is <11 μA, which extends the battery life to 400 hours.
- Low battery indication.
- Automatic power of after 15 of no-operation (function can be turned off).
- Data hold function.
- Max/Min mode.
- REL mode.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC Current | 6 A | ±(4%+10) |
| 60 A / 600 A | ±(2%+10) | |
| AC Voltage | 6 V | ±(1%+5) |
| 60 V / 600 V | ±(0.8%+5) | |
| DC Voltage | 600 mV | ±(0.7%+3) |
| 6 V | ±(0.5%+2) | |
| 60 V / 600 V | ±(0.7%+3) | |
| Resistance | 600 Ω | ±(1%+2) |
| 6 kΩ / 60 kΩ / 600 kΩ | ±(0.8%+2) | |
| 6 MΩ / 60 MΩ | ±(2%+5) | |
| Capacitance | 6 nF / 60 nF / 600 nF | ±(4%+10) |
| 6 μf / 60 μf / 600 μf | ±(4%+5) | |
| 6 mF / 60 mF | ±10% | |
| Frequency | 10 Hz~10 MHz | ±(0.1%+4) |
| Duty Ratio | 0.1~99.9% | ±(3.0%+5) |
| General Specifications | ||
| Display | 4099 count LCD | |
| Max. jaw opening | 28 mm in diameter | |
| Drop test | 1 m | |
| Power | 1.5V battery AAA × 2 pcs. | |
| Dimensions | 215 × 63.5 × 36 mm | |
| Weight | 248 g (with batteries) | |
User Manual
Download UNI-T UT202A+ user manual.
Package Contents
- Digital Clamp Meter UNI-T UT202A+ — 1 pc.
- Test Leads — 1 pair
- Case — 1 pc.
- User Manual — 1 pc.
