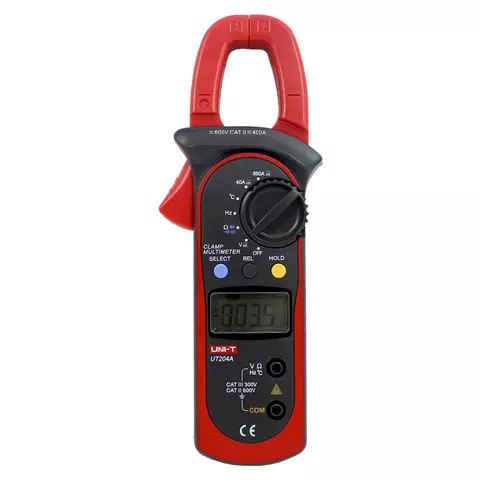

Digital Clamp Meter UNI-T UT204A

id: 834634
Digital Clamp Meter UNI-T UT204A
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
0.55 kg Warranty: 24 months
The reliable digital clamp meter measures AC/DC voltage and current, resistance, frequency, capacitance, duty cycle and performes diode check and continuity test.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Clamp Meter Accta AT 600C
Bestseller
New
Add to wishlist
Digital Clamp Meter Accta AT-600C
USD 41.00
USD 31.00
Add to wishlist
Add to cart
This True RMS clamp meter measures AC/DC voltage and current, resistance, capacitance, frequency, NCV, and is also used to perform diode and continuity testing.
Bestseller
New
Availability in stock: HK
Shipping cost
ID: 891579 0.6 kg
Digital Clamp Meter UNI T UT203+
Add to wishlist
Digital Clamp Meter UNI-T UT203+
USD 37.72
Add to wishlist
Add to cart
True RMS clamp meter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty ratio, continuity, and also may be used for diodes testing.
Availability in stock: HK
Shipping cost
ID: 897073 0.8 kg
Digital Clamp Meter UNI T UT204+
Bestseller
Add to wishlist
Digital Clamp Meter UNI-T UT204+
USD 41.96
Add to wishlist
Add to cart
The tool used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, temperature, as well as to perform live wire/continuity/diode testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898893 0.85 kg
Description

UNI-T UT204A is reliable digital clamp meter that is designed for measuring AC/DC voltage and current, resistance, frequency, capacitance, duty cycle and performes diode check and continuity test.

UNI-T UT204A Digital Clamp Meter User Manual

Download UNI-T UT204A digital clamp meter user manual

UNI-T UT204A Digital Clamp Meter Features

  • Measuring functions:
    • AC/DC current
    • AC/DC voltage
    • resistance
    • frequency
    • capacitance
    • temperature
    • duty cycle
    • continuity test (with buzzer)
    • diode test
  • Auto ranging
  • Relative measurements mode
  • Data Hold function
  • Low battery indication

UNI-T UT204A Digital Clamp Meter Techical Specifications

Display 3999 digit LCD, 38 × 18 mm
DC voltage Range 400 mV / 4 V / 40 V / 400 V / 600 V
Accuracy ±(0.8%+1)
AC voltage Range 4 V / 40 V / 400 V / 600 V
Accuracy ±(1%+5)
DC current Range 40 A / 600 A
Accuracy ±(2%+3)
AC current Range 40 A / 600 A
Accuracy ±(2.5%+5)
Resistance Range 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Frequency Range 10 Hz ~ 10 MHz
Accuracy ±(0.1%+3)
Temperature Range –40℃ ~ 1000℃
Accuracy –40℃ ~ 0℃: ±(8% +5)
0 ℃ ~ 400 ℃: ±(2.5% +3)
400 ℃ ~ 1000 ℃: ±(3.0% +3)
Duty cycle Range 0.1% ~ 99.9%
Power 9 V battery (6F22)
Dimensions (H × W × D) 210 × 76 × 30 mm
Weight 200 g

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

UNI-T UT204A Digital Clamp Meter Package Contents

  • UNI-T UT204A clamp meter module (1 pc.)
  • Test lead (1 pair.)
  • Thermocouple (1 pc.)
  • Carrying case (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Read more
Description

UNI-T UT204A is reliable digital clamp meter that is designed for measuring AC/DC voltage and current, resistance, frequency, capacitance, duty cycle and performes diode check and continuity test.

UNI-T UT204A Digital Clamp Meter User Manual

Download UNI-T UT204A digital clamp meter user manual

UNI-T UT204A Digital Clamp Meter Features

  • Measuring functions:
    • AC/DC current
    • AC/DC voltage
    • resistance
    • frequency
    • capacitance
    • temperature
    • duty cycle
    • continuity test (with buzzer)
    • diode test
  • Auto ranging
  • Relative measurements mode
  • Data Hold function
  • Low battery indication

UNI-T UT204A Digital Clamp Meter Techical Specifications

Display 3999 digit LCD, 38 × 18 mm
DC voltage Range 400 mV / 4 V / 40 V / 400 V / 600 V
Accuracy ±(0.8%+1)
AC voltage Range 4 V / 40 V / 400 V / 600 V
Accuracy ±(1%+5)
DC current Range 40 A / 600 A
Accuracy ±(2%+3)
AC current Range 40 A / 600 A
Accuracy ±(2.5%+5)
Resistance Range 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Frequency Range 10 Hz ~ 10 MHz
Accuracy ±(0.1%+3)
Temperature Range –40℃ ~ 1000℃
Accuracy –40℃ ~ 0℃: ±(8% +5)
0 ℃ ~ 400 ℃: ±(2.5% +3)
400 ℃ ~ 1000 ℃: ±(3.0% +3)
Duty cycle Range 0.1% ~ 99.9%
Power 9 V battery (6F22)
Dimensions (H × W × D) 210 × 76 × 30 mm
Weight 200 g

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

UNI-T UT204A Digital Clamp Meter Package Contents

  • UNI-T UT204A clamp meter module (1 pc.)
  • Test lead (1 pair.)
  • Thermocouple (1 pc.)
  • Carrying case (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • max / min
  • diode test
Range Selection
  • auto range
  • manual range
Digit Capacity
  • 3999
Type
  • for AC/DC
Jaw diameter
  • diameter 28 mm
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 100 μF
Frequency
  • up to 10 MHz
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
DC
  • up to 600 A
AC
  • up to 600 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
NCV
  • no
