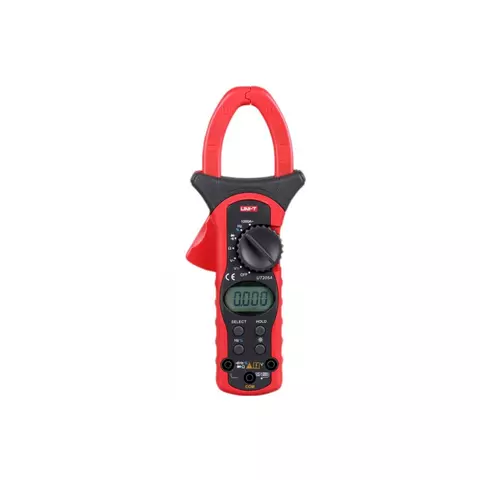

Digital Clamp Meter UNI-T UT205A

id: 886867
Digital Clamp Meter UNI-T UT205A
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 37.30
Add to cart
Overview
0.85 kg
Availability in stock: HK
Warranty: 24 months
Reliable clamp used for measuring current, voltage, resistance, frequency, duty cycle, and performing diode check and continuity test.
USD 37.30
Add to cart
Compare
Compare
USD 37.30
Add to cart
Impossible to estimate the shipping cost
Note! This item is shipped within 10 working days.
Description

UNI-T UT205A is a digital clamp meter designed to measure AC currents up to 1000 A. This tool also performs multimeter measuring functions, namely voltage, resistance, frequency, duty cycle, relative measurements, as well as diode and continuity tests.

Features

  • Measuring functions: AC current and AC/DC voltage, resistance, frequency, capacitance.
  • Data hold functions.
  • Diode and continuity testing.
  • Automatic and manual range selection.
  • Auto power off.

Technical Specifications

Read more
Description

UNI-T UT205A is a digital clamp meter designed to measure AC currents up to 1000 A. This tool also performs multimeter measuring functions, namely voltage, resistance, frequency, duty cycle, relative measurements, as well as diode and continuity tests.

Features

  • Measuring functions: AC current and AC/DC voltage, resistance, frequency, capacitance.
  • Data hold functions.
  • Diode and continuity testing.
  • Automatic and manual range selection.
  • Auto power off.

Technical Specifications

Display 3999 LCD
AC current Range 400 A / 1000 A
Accuracy ± 2% + 5
DC voltage Range 400 mV / 4 V / 40 V / 400 V / 600 V
Accuracy ± 0,8% +1
AC voltage Range 4 V / 40 V / 400 V / 600 V
Accuracy ± 1,5% + 5
Resistance Range 400 Ω / 4 kΩ / 40 kΩ/ 400 kΩ/ 4 MΩ / 40 MΩ
Accuracy ± 1,5% + 2
Frequency Range from 10 Hz to 10 MHz
Accuracy ± 0,1% + 3
Duty cycle 0,1 % ~ 99,9%
Power 9 V battery (6F22)
Dimensions(H × W × D) 260 × 104 × 52 mm
Weight 530g

User Manual

PDF  Download UNI-T UT205A User Manual.

Video

Youtube video

Youtube video

Package Contents

  • Digital Clamp Meter UNI-T UT205A — 1 pc.
  • Test leads — 1 pair.
  • Carrying bag — 1 pc.
  • User manual — 1 pc.

Note! Batteries are not included in the package.

Specifications
Digit Capacity
  • 3999
Type
  • for AC
Jaw diameter
  • diameter 40 mm
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 40 MOhm
Frequency
  • up to 10 MHz
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Temperature
  • no
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Continuity test
  • yes
AC
  • up to 1000 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
NCV
  • no
