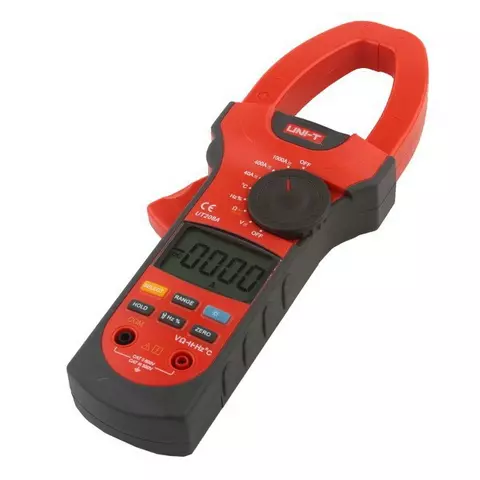

Digital Clamp Meter UNI-T UT208A

id: 863640
Digital Clamp Meter UNI-T UT208A
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
1.41 kg Warranty: 24 months
Clamp multimeter for measuring AC/DC voltage and current, resistance, frequency, temperature, capacitance, duty cycle, also performing diode check and continuity test.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Clamp Meter Accta AT 1000E
Bestseller
Add to wishlist
Digital Clamp Meter Accta AT-1000E
USD 51.00
Add to wishlist
Add to cart
True RMS clamp meter designed to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 891581 0.9 kg
Description

UNI-T UT208A is a reliable and low consumption clamp multimeter. UNI-T UT208A digital clamp meter measures AC/DC voltage and current, resistance, frequency, temperature, capacitance, duty cycle, also performing diode check and continuity test. This digital clamp meter has overload protection.

User Manuals

Download user manual for UNI-T UT208A digital clamp meter

Features

  • Measuring functions:
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Temperature
    • Capacitance
    • Frequency
    • Diode check
    • Continuity test
    • Duty cycle
  • Auto ranging
  • True RMS
  • Data hold function
  • Sleep mode
  • Low battery display
  • Display backlight
  • 55 mm maximum jaw diameter
  • Measurement update speed 3 times/second
  • Compact and comfortable design
  • Compliance with safety requirements IEC 61010 CAT II 600 V, CAT III 300 V

Comparative Specifications: UNI-T UT208A & UT209A

Model UT208A UT209A
Display LED, max. 4000 digits
47 × 30 mm
LED, max. 4000 digits
47 × 30 mm
DC voltage Range 400 mV / 4 V / 40 V / 400 V / 1000 V 400 mV / 4 V / 40 V / 400 V / 1000 V
Accuracy ±(0.8%+1) ±(1.2%+3)
Input impedance 10 MΩ
Overload protection DC 1000 V / AC 750 V rms
AC voltage Range 400 mV / 4 V / 40 V / 400 V / 750 V 400 mV / 4 V / 40 V / 400 V / 750 V
Accuracy ±(1.2%+3) ±(1.5%+5)
Input impedance 10 MΩ
Overload protection DC 1000 V / AC 750 V rms
DC current Range 40 A / 400 A / 1000 A 40 A / 400 A / 1000 A
Accuracy ±(1.5%+5) ±(1.5%+5)
Overload protection 1000 A DC/AC
AC current Range 40 A / 400 A / 1000 A 40 A / 400 A / 1000 A
Accuracy ±(2%+2) ±(2%+2)
Overload protection 1000 A DC/AC
Resistance Range 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Duty cycle 0.1%~99.9%
Temperature  Range -40°C ~ 1000°C
Accuracy ±(2.5%+3)
Capacitance Range 4 nF / 40 nF / 400 nF / 4 µF / 40 µF / 100 µF
Accuracy ±(4%+3)
Frequency Range 10 Hz / 100 Hz / 1 kHz / 10 kHz / 1 MHz / 10 MHz
Accuracy ±(0.1%+3)
Power supply alakline battery 1604A or 6LF22 (9 V)
Dimensions 286 × 105 × 45 mm
Weight 533 g

Video

Youtube video

Youtube video

Package Contents

  • Clamp meter UNI-T UT208A (1 pc.)
  • Test lead (1 pc.)
  • Tool box (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Read more
Description

UNI-T UT208A is a reliable and low consumption clamp multimeter. UNI-T UT208A digital clamp meter measures AC/DC voltage and current, resistance, frequency, temperature, capacitance, duty cycle, also performing diode check and continuity test. This digital clamp meter has overload protection.

User Manuals

Download user manual for UNI-T UT208A digital clamp meter

Features

  • Measuring functions:
    • AC/DC voltage
    • AC/DC current
    • Resistance
    • Temperature
    • Capacitance
    • Frequency
    • Diode check
    • Continuity test
    • Duty cycle
  • Auto ranging
  • True RMS
  • Data hold function
  • Sleep mode
  • Low battery display
  • Display backlight
  • 55 mm maximum jaw diameter
  • Measurement update speed 3 times/second
  • Compact and comfortable design
  • Compliance with safety requirements IEC 61010 CAT II 600 V, CAT III 300 V

Comparative Specifications: UNI-T UT208A & UT209A

Model UT208A UT209A
Display LED, max. 4000 digits
47 × 30 mm
LED, max. 4000 digits
47 × 30 mm
DC voltage Range 400 mV / 4 V / 40 V / 400 V / 1000 V 400 mV / 4 V / 40 V / 400 V / 1000 V
Accuracy ±(0.8%+1) ±(1.2%+3)
Input impedance 10 MΩ
Overload protection DC 1000 V / AC 750 V rms
AC voltage Range 400 mV / 4 V / 40 V / 400 V / 750 V 400 mV / 4 V / 40 V / 400 V / 750 V
Accuracy ±(1.2%+3) ±(1.5%+5)
Input impedance 10 MΩ
Overload protection DC 1000 V / AC 750 V rms
DC current Range 40 A / 400 A / 1000 A 40 A / 400 A / 1000 A
Accuracy ±(1.5%+5) ±(1.5%+5)
Overload protection 1000 A DC/AC
AC current Range 40 A / 400 A / 1000 A 40 A / 400 A / 1000 A
Accuracy ±(2%+2) ±(2%+2)
Overload protection 1000 A DC/AC
Resistance Range 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Duty cycle 0.1%~99.9%
Temperature  Range -40°C ~ 1000°C
Accuracy ±(2.5%+3)
Capacitance Range 4 nF / 40 nF / 400 nF / 4 µF / 40 µF / 100 µF
Accuracy ±(4%+3)
Frequency Range 10 Hz / 100 Hz / 1 kHz / 10 kHz / 1 MHz / 10 MHz
Accuracy ±(0.1%+3)
Power supply alakline battery 1604A or 6LF22 (9 V)
Dimensions 286 × 105 × 45 mm
Weight 533 g

Video

Youtube video

Youtube video

Package Contents

  • Clamp meter UNI-T UT208A (1 pc.)
  • Test lead (1 pc.)
  • Tool box (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Digit Capacity
  • 3999
Type
  • for AC/DC
Jaw diameter
  • diameter 55 mm
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 100 μF
Frequency
  • up to 10 MHz
Temperature
  • yes
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Continuity test
  • yes
DC
  • up to 1000 A
AC
  • up to 1000 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
NCV
  • no
