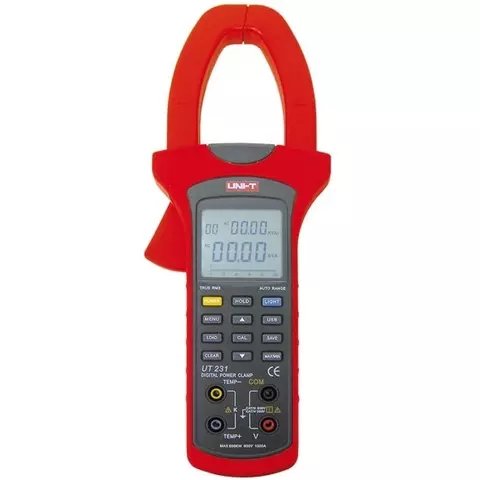

Digital Clamp Meter UNI-T UT231

id: 822378
2.85 kg Warranty: 24 month (s)
The power meter measuring AC voltage and current, active, apparent and reactive power, temperature, frequency, active energy.Supports PC-connection.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

The digital clamp meter UNI-T UT231 is a power meter measuring not only AC voltage and current but also active, apparent and reactive power. The UNI-T UT231 clamp meter measures temperature, frequency, active energy and can be connected to PC.

Digital Clamp Meter UNI-T UT231 User Manuals

Download user manual for digital clamp meter UNI-T UT231

Download drivers for digital clamp meter

Digital Clamp Meter UNI-T UT231 Features

  • Measuring functions:
    • AC voltage
    • AC current
    • Active and full power
    • Reactive power
    • Power factor
    • Phase angle
    • Active energy
    • Frequency
    • Temperature
  • Auto ranging
  • True RMS
  • Maximum and minimum data hold
  • Single-phase 2-wire measurements
  • Calibration function
  • Data hold function
  • Sleep mode
  • Low battery display
  • Display backlight
  • USB connection
  • 55 mm maximum jaw diameter
  • Measurement update speed 3 times/second
  • Compact and comfortable design
  • Compliance with safety requirements IEC 61010 CAT III 600 V, CAT IV 300 V

Digital Clamp Meter UNI-T UT231 Technical Specifications

Display LED, max. 9999 digits
46 × 42 mm
AC voltage Range 15 V / 100 V / 300 V / 600 V
Accuracy ±(1.2%+5)
Input impedance 10 MΩ
Overload protection 600 V rms
AC current Range 40 A / 100 A / 400 A / 1000 A
Accuracy ±(2%+5)
Overload protection 1000 A rms
Active power Range up to 600 kW
Accuracy ±(3%+5)
Apparent power Range up to 600 kWA
Accuracy ±(3%+5)
Reactive power Range up to 600 kWAr
Accuracy ±(4%+5)
Power factor 0.3~1 (±0.02%±2)
Phase angle 0º~360º
Frequency 20 Hz – 500 Hz
Active energy up to 9999 kWh
Temperature -50ºC~1000ºC
Power supply 4 batteries LR6 (1.5 V)
Dimensions, mm 303 × 112 × 39
Weight, g 601

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Digital Clamp Meter UNI-T UT231 Package

  • Clamp meter UNI-T UT231 (1 pc.)
  • Test lead (1 pc.)
  • Alligator clip (1 pc.)
  • Point contact temperature probe (1 pc.)
  • USB interface cable (1 pc.)
  • Software (1 pc.)
  • Tool box (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Measured Values
  • AC voltage
  • AC
  • frequency
  • temperature
  • power
  • cos φ
Additional Functions
  • data hold
  • connection to PC (USB)
  • automatic shutdown/sleep mode
  • mnemonic
  • max / min
  • RMS measurement
Range Selection
  • auto range
Type
  • for AC
Jaw diameter
  • diameter 55 mm
Digit Capacity
  • 9999
AC Voltage
  • up to 600 V
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Temperature
  • yes
Power
  • yes
Duty cycle
  • no
True RMS
  • yes
Backlight
  • yes
PC connection
  • USB
Diode test
  • no
Analog bar graph
  • yes
DC Voltage
  • does not measure the DC voltage
Continuity test
  • no
AC
  • up to 1000 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
Resistance
  • doesn't measure resistance
Frequency
  • up to 500 Hz
NCV
  • no
