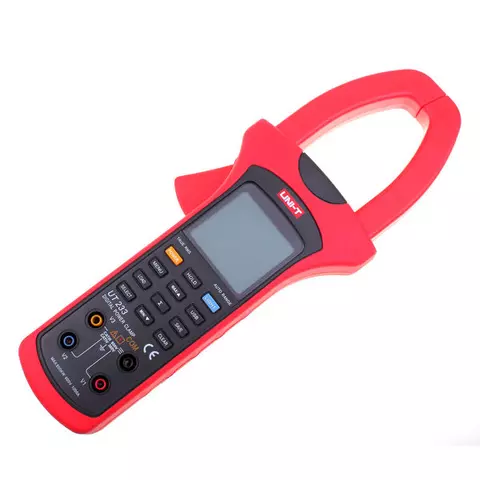

Digital Clamp Meter UNI-T UT233

id: 834635
Digital Clamp Meter UNI-T UT233
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
2.85 kg Warranty: 24 months
Handheld digital clamp meter that can measure voltage, current, active power, apparent power, reactive power, power factor, phase angle, frequency, active energy and phase sequence.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

UNI-T UT233 is a handheld digital clamp meter that can measure voltage, current, active power, apparent power, reactive power, power factor, phase angle, frequency, active energy and phase sequence.

UNI-T UT233 Digital Clamp Meter User Manual

Download UNI-T UT233 digital clamp meter user manual

Download drivers for digital clamp meter

UNI-T UT233 Digital Clamp Meter Features

  • Measuring functions:
    • AC voltage
    • AC current
    • Active and apparent power
    • Reactive power
    • Power factor
    • Phase angle
    • Active energy
    • Frequency
  • Auto ranging
  • Phase rotation test
  • Data hold function
  • Low battery indication

UNI-T UT233 Digital Clamp Meter Technical Specifications

Display LCD, max. 9999 digits
46 × 42 mm
AC voltage Range 15 V / 100 V / 300 V / 600 V
Accuracy ±(1.2%+5)
AC current Range 40 A / 100 A / 400 A / 1000 A
Accuracy ±(2%+5)
Active power Range 0.01 kW - 600 kW
Accuracy ±(3%+5)
Apparent power Range 0.01 kVA - 600 kVA
Accuracy ±(3%+5)
Reactive power Range 0.01 kVAr - 600 kVAr
Accuracy ±(4%+5)
Power factor 0.3 ~ 1
Phase angle 0º ~ 360º
Frequency 20 Hz - 500 Hz
Active energy up to 9999 kWh
Power supply 4 batteries LR6 (1.5 V)
Dimensions 303 × 112 × 39 mm
Weight 601 g

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

UNI-T UT233 Digital Clamp Meter Package Contents

  • UNI-T UT233 clamp meter module (1 pc.)
  • Test lead (4 pcs.)
  • Alligator clip (4 pcs.)
  • USB cable (1 pc.)
  • Case (1 pc.)
  • User manual and software (1 pc.)

Note! Batteries are not included in the package.

Read more
Description

UNI-T UT233 is a handheld digital clamp meter that can measure voltage, current, active power, apparent power, reactive power, power factor, phase angle, frequency, active energy and phase sequence.

UNI-T UT233 Digital Clamp Meter User Manual

Download UNI-T UT233 digital clamp meter user manual

Download drivers for digital clamp meter

UNI-T UT233 Digital Clamp Meter Features

  • Measuring functions:
    • AC voltage
    • AC current
    • Active and apparent power
    • Reactive power
    • Power factor
    • Phase angle
    • Active energy
    • Frequency
  • Auto ranging
  • Phase rotation test
  • Data hold function
  • Low battery indication

UNI-T UT233 Digital Clamp Meter Technical Specifications

Display LCD, max. 9999 digits
46 × 42 mm
AC voltage Range 15 V / 100 V / 300 V / 600 V
Accuracy ±(1.2%+5)
AC current Range 40 A / 100 A / 400 A / 1000 A
Accuracy ±(2%+5)
Active power Range 0.01 kW - 600 kW
Accuracy ±(3%+5)
Apparent power Range 0.01 kVA - 600 kVA
Accuracy ±(3%+5)
Reactive power Range 0.01 kVAr - 600 kVAr
Accuracy ±(4%+5)
Power factor 0.3 ~ 1
Phase angle 0º ~ 360º
Frequency 20 Hz - 500 Hz
Active energy up to 9999 kWh
Power supply 4 batteries LR6 (1.5 V)
Dimensions 303 × 112 × 39 mm
Weight 601 g

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

UNI-T UT233 Digital Clamp Meter Package Contents

  • UNI-T UT233 clamp meter module (1 pc.)
  • Test lead (4 pcs.)
  • Alligator clip (4 pcs.)
  • USB cable (1 pc.)
  • Case (1 pc.)
  • User manual and software (1 pc.)

Note! Batteries are not included in the package.

Specifications
Measured Values
  • AC voltage
  • AC
  • frequency
  • power
  • cos φ
Additional Functions
  • data hold
  • connection to PC (USB)
  • mnemonic
  • max / min
  • RMS measurement
  • backlight
Range Selection
  • auto range
Type
  • for AC
Jaw diameter
  • diameter 55 mm
Digit Capacity
  • 9999
AC Voltage
  • up to 600 V
Capacitance
  • does not measure the capacitance
DC
  • does not measure the DC
Temperature
  • yes
Power
  • yes
Duty cycle
  • no
True RMS
  • yes
Backlight
  • yes
PC connection
  • USB
Diode test
  • no
Analog bar graph
  • no
DC Voltage
  • does not measure the DC voltage
Continuity test
  • no
AC
  • up to 1000 A
Three-phase voltage measurement
  • yes
Three-phase current measurement
  • no
Resistance
  • doesn't measure resistance
Frequency
  • up to 500 Hz
NCV
  • no
