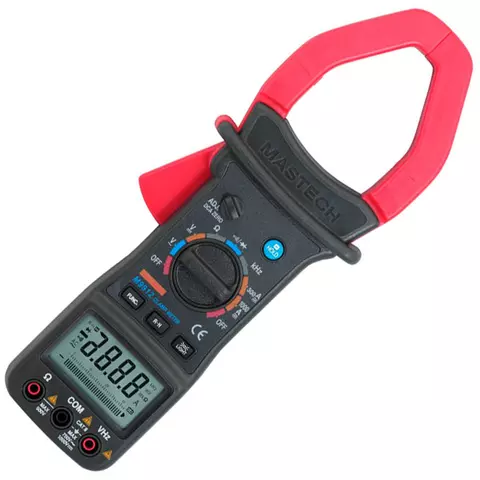

Digital Clamp on Meter MASTECH M9912

id: 819036
Digital Clamp on Meter MASTECH M9912
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
Overview
1.4 kg Warranty: 6 months
A digital clamp on meter for DC/AC voltage and current, resistance, frequency, duty cycle measurements and continuity and diode tests.
Price coming soon
Contact
sales team
Compare
Compare
Price coming soon
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Clamp Meter UNI T UT208B
Bestseller
Add to wishlist
Digital Clamp Meter UNI-T UT208B
USD 83.92
Add to wishlist
Add to cart
True RMS clamp measures AC/DC current, AC/DC voltage, resistance, capacitance, temperature, duty cycle, continuity, and may be used for diode testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898466 1 kg
Digital Clamp Meter UNI T UT207B
Bestseller
Add to wishlist
Digital Clamp Meter UNI-T UT207B
USD 62.73
Add to wishlist
Add to cart
True RMS clamp measures AC/DC current, AC/DC voltage, resistance, capacitance, duty cycle, continuity, and may be used for diode testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898464 1 kg
Digital Clamp Meter Accta AT 1000E
Bestseller
Add to wishlist
Digital Clamp Meter Accta AT-1000E
USD 51.00
Add to wishlist
Add to cart
True RMS clamp meter designed to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 891581 0.9 kg
Description

A digital clamp on meter measures DC/AC voltage and current, resistance, frequency, duty cycle, tests continuity and diodes.

MASTECH M9912 Digital Clamp on Meter Features

  • Backlit large 3¾ digit (3200) backlit LCD
  • Functions:
    • DC/AC voltage and current
    • resistance
    • frequency
    • duty cycle
    • continuity test (with buzzer)
    • diode test
  • Data hold function
  • Low battery indicator

MASTECH M9912 Digital Clamp on Meter Technical Specifications

Display 3¾ digit (3200) LCD
DC Voltage, V 3V/30V/300V ±0.8%
1000V ±1.0%
AC Voltage, V 3V/30V/300V ±1.0%
750V ±1.2%
DC Current, A 300/1000A
<600A±2.5%
≥600A±3.0%
AC Current, A 300/1000A
<600A±2.5%
≥600A±3.0%
Resistance, Ω 300Ω/3kΩ/30kΩ/300kΩ/3MΩ±2.0%
30MΩ±2.5%
Frequency, Hz 30kHz±2.0%
Continuity test audible signal for R<18Ω
Power Source battery 9V 6F22
Size (H × W × D), mm 282 × 104 × 47
Weight, g 550

Video

Youtube video
Read more
Description

A digital clamp on meter measures DC/AC voltage and current, resistance, frequency, duty cycle, tests continuity and diodes.

MASTECH M9912 Digital Clamp on Meter Features

  • Backlit large 3¾ digit (3200) backlit LCD
  • Functions:
    • DC/AC voltage and current
    • resistance
    • frequency
    • duty cycle
    • continuity test (with buzzer)
    • diode test
  • Data hold function
  • Low battery indicator

MASTECH M9912 Digital Clamp on Meter Technical Specifications

Display 3¾ digit (3200) LCD
DC Voltage, V 3V/30V/300V ±0.8%
1000V ±1.0%
AC Voltage, V 3V/30V/300V ±1.0%
750V ±1.2%
DC Current, A 300/1000A
<600A±2.5%
≥600A±3.0%
AC Current, A 300/1000A
<600A±2.5%
≥600A±3.0%
Resistance, Ω 300Ω/3kΩ/30kΩ/300kΩ/3MΩ±2.0%
30MΩ±2.5%
Frequency, Hz 30kHz±2.0%
Continuity test audible signal for R<18Ω
Power Source battery 9V 6F22
Size (H × W × D), mm 282 × 104 × 47
Weight, g 550

Video

Youtube video
Specifications
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • frequency
Additional Functions
  • acoustic continuity test
  • mnemonic
  • diode test
  • backlight
Range Selection
  • auto range
  • manual range
Type
  • for AC/DC
Jaw diameter
  • diameter 55 mm
Digit Capacity
  • 3200
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Capacitance
  • does not measure the capacitance
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
Continuity test
  • yes
DC
  • up to 1000 A
AC
  • up to 1000 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
Frequency
  • up to 30 kHz
Resistance
  • up to 30 MΩ
