Digital Multimeter MASTECH MS8218

id: 9370

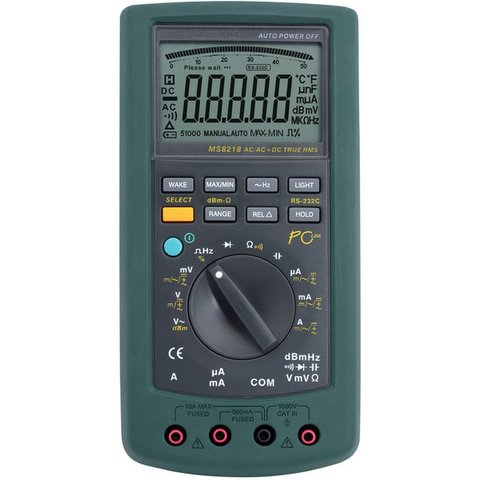

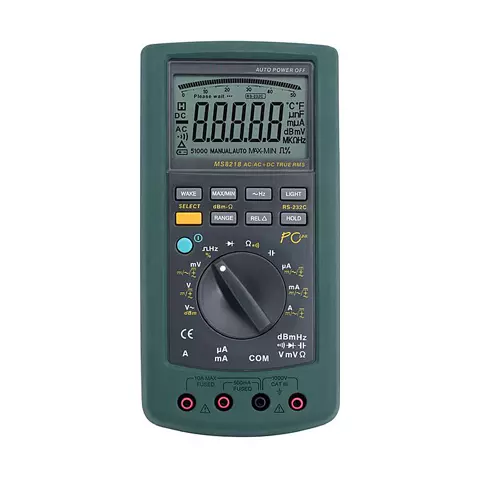

Digital Multimeter MASTECH MS8218
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 140.00
Contact
sales team
Overview
1.24 kg Warranty: 6 months
High-accuracy and multifunctional. PC - interface RS 232C. Root-mean-square measuring. (True RMS). Digital display with 50-segmented analog scale.
USD 140.00
Contact
sales team
Compare
Compare
USD 140.00
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT71A
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT71A
USD 112.96
Add to wishlist
Add to cart
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, as well as diode and continuity tests. Data hold, peak hold, auto ranging, relative measurements.
Bestseller
Availability in stock: HK
Shipping cost
ID: 834632 0.95 kg
Digital Multimeter UNI T UT71E
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT71E
USD 212.78
Add to wishlist
Add to cart
A digital multimeter for AC/DC current and voltage, resistance, capacitance, frequency, temperature, duty cycle, power measurements and diode and continuity tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 819452 1.7 kg
Digital Multimeter UNI T UT61B+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT61B+
USD 42.60
Add to wishlist
Add to cart
True RMS multimeter used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, duty cycle, and also to test diode and continuity.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898457 0.8 kg
Description

MASTECH MS8218 – High-accuracy and multifunctional. PC - interface RS 232C. Root-mean-square measuring. (True RMS). Digital display with 50-segmented analog scale.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Read more
Description

MASTECH MS8218 – High-accuracy and multifunctional. PC - interface RS 232C. Root-mean-square measuring. (True RMS). Digital display with 50-segmented analog scale.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical specifications

Range auto/manual
Counts measurements 50000
DC voltage 50/500 mV/5/50/500/1000 V ±0.03%
DC + AC voltage 50/500 mV/5/50/500/100 V ±0.5%
DC current 500/5000 µA/50/500 mA/5/10 A ±0.15%
AC current 500/5000 µA/50/500 mA/5 A ±0.75%, 10 A ±1.5%
Resistence 500 Ω/5/50/500 kΩ/5 MΩ ±0.1%, 50 MΩ ±0.5%
Capacitance 50/500 nF/5/50 µF ±1%, 500/5000 µF ±2%
Comprobación de la integridad del cable Yes
Diode test Yes
Data Hold Yes
Full overload protection Yes
Indication for buttery low Yes
Secondary injection molding case Yes
Duty cycle 5Hz - 500 kHz
Display Yes
Buttery 6 × 1.5V (AA)
Dimensions, mm 200 × 100 × 40 mm
Infrared interface and PC Windows software Yes
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • porosity
Additional Functions
  • acoustic continuity test
  • data hold
  • connection to PC (RS232)
  • automatic shutdown/sleep mode
  • mnemonic
  • max / min
  • RMS measurement
  • relative measurements
  • diode test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 50 000
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 1000 V
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • yes
True RMS
  • yes
Backlight
  • yes
PC connection
  • RS232
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
Capacitance
  • up to 5000 μF
Resistance
  • up to 50 MOhm
Continuity test
  • yes
Frequency
  • up to 500 kHz
Battery Testing
  • no
