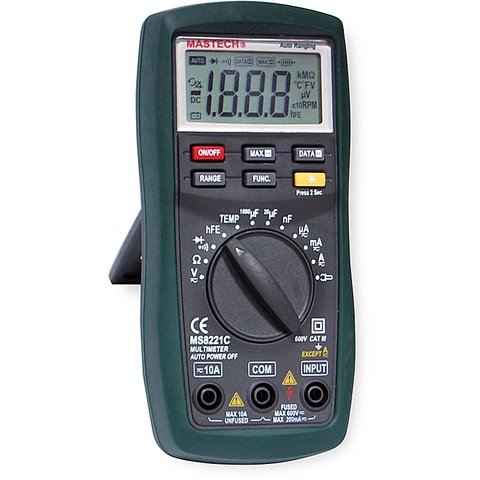

Digital Multimeter MASTECH MS8221C

id: 9374
Digital Multimeter MASTECH MS8221C
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
Overview
0.5 kg Warranty: 6 months
Capacity and temperature measurement. Display illumination. Digit capacity - 1999. Overload indication "1". Automatic shutdown function
Price coming soon
Contact
sales team
Compare
Compare
Price coming soon
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT55
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT55
USD 30.31
Add to wishlist
Add to cart
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, as well as diode, transistor and continuity tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 834629 0.82 kg
Digital Multimeter Accta AT 290
Bestseller
New
Add to wishlist
Digital Multimeter Accta AT-290
USD 22.00
Add to wishlist
Add to cart
True RMS digital multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, temperature and can be used for continuity, transistor and diode tests.
Bestseller
New
Availability in stock: HK
Shipping cost
ID: 891501 0.65 kg
A reliable True RMS multimeter used to measure AC/DC voltage and current, capacitance, frequency, resistance, duty cycle, and temperature, and to perform diode and continuity tests.
Bestseller
New
Availability in stock: HK
Shipping cost
ID: 891577 0.4 kg
Digital Multimeter UNI T UT136C+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT136C+
USD 18.86
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature, hFE (transistor measurement), and also performs diode and transistor tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 883716 0.5 kg
Description

Digital multimeter MASTECH MS8221C with capacity and temperature measurement function.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical specifications

Range Selection auto/manual
Display 31/2 (1999 counts), a digit is 15 mm high
DC voltage 200 mV/2/20/200/600 V ±0.7%
AC voltage 200 mV/2/20/200 V ±0.8%, 600 V ±1.0%
DC current 200 µA/2/20/200 mA/2/10 A
AC current 200 µA/2/20/200 mA/2/10 A
AC current frequency 40 - 500 Hz
Resistance 200Ω/2/200 kΩ/2/20 MΩ
Temperature measurement C-20°C - + 1000°C
Continuity checking with buzzer Yes
Capacitance 20/200 nF/2/200/2000 µF
Conductivity wire identification Yes
Diode / transistor hFE test Yes
Automatic power-off Yes
Data Hold function Yes
Charge battery indication Yes
Overload indication "1" Yes
Display illumination Yes
Power Source 4,5 V / 3 × 1,5 V (AAA)
Dimensions, mm 158 × 74 × 31 mm
Weight 220 g
Read more
Description

Digital multimeter MASTECH MS8221C with capacity and temperature measurement function.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical specifications

Range Selection auto/manual
Display 31/2 (1999 counts), a digit is 15 mm high
DC voltage 200 mV/2/20/200/600 V ±0.7%
AC voltage 200 mV/2/20/200 V ±0.8%, 600 V ±1.0%
DC current 200 µA/2/20/200 mA/2/10 A
AC current 200 µA/2/20/200 mA/2/10 A
AC current frequency 40 - 500 Hz
Resistance 200Ω/2/200 kΩ/2/20 MΩ
Temperature measurement C-20°C - + 1000°C
Continuity checking with buzzer Yes
Capacitance 20/200 nF/2/200/2000 µF
Conductivity wire identification Yes
Diode / transistor hFE test Yes
Automatic power-off Yes
Data Hold function Yes
Charge battery indication Yes
Overload indication "1" Yes
Display illumination Yes
Power Source 4,5 V / 3 × 1,5 V (AAA)
Dimensions, mm 158 × 74 × 31 mm
Weight 220 g
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • frequency
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • diode test
  • transistors test
  • backlight
  • peak hold
Range Selection
  • auto range
Digit Capacity
  • 1999
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 20 MOhm
DC
  • up to 10 A
AC
  • up to 10 A
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
Capacitance
  • up to 2000 μF
Battery Testing
  • no
