Digital Multimeter MASTECH MS8226

id: 9376

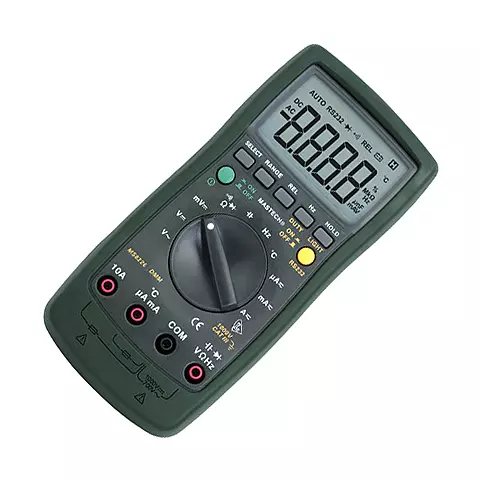

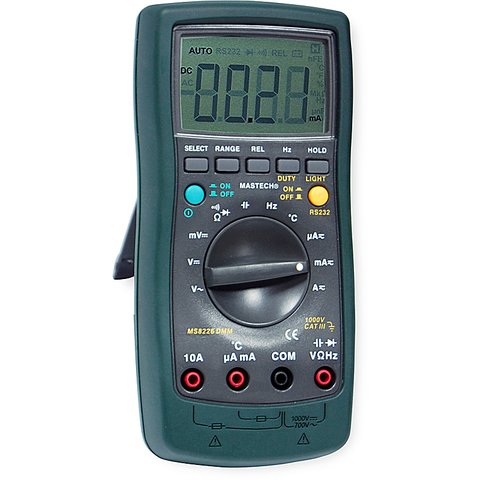

Digital Multimeter MASTECH MS8226
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
Overview
1.42 kg Warranty: 6 months
High-accuracy and multifunctional. Measurement of temperature, pulse ratio , frequency and capacity. Relative measurement mode (REL). Software and PC interface. Overload indication. Illumination. Automatic shutdown.
Price coming soon
Contact
sales team
Compare
Compare
Price coming soon
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT58E
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT58E
USD 53.62
Add to wishlist
Add to cart
A digital multimeter for AC/DC current and voltage, resistance, capacitance, frequency, temperature measurements, and diode, continuity and transistor tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 819446 0.67 kg
Digital Multimeter UNI T UT136C+
Add to wishlist
Digital Multimeter UNI-T UT136C+
USD 18.86
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature, hFE (transistor measurement), and also performs diode and transistor tests.
Availability in stock: HK
Shipping cost
ID: 883716 0.5 kg
Digital Multimeter Accta AT 280
Bestseller
New
Add to wishlist
Digital Multimeter Accta AT-280
USD 27.00
Add to wishlist
Add to cart
True RMS multimeter that measures AC/DC current and voltage, resistance, inductance, conductance, capacitance, frequency, and temperature. May be used for diode and transistor testing.
Bestseller
New
Availability in stock: HK
Shipping cost
ID: 891572 0.714 kg
Digital Multimeter UNI T UT39C+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT39C+
USD 15.26
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature and hFE (transistor measurement). Diode, continuity and non-contact voltage (NCV) testing. Manual range selection.
Bestseller
Availability in stock: HK
Shipping cost
ID: 883714 0.5 kg
Description

High precision and multifunctional professional digital multimeter MASTECH MS8226 provides temperature, pulse ratio, frequency and capacity measuring. Relative measurement mode (REL). Software and PC interface. Overload indication. Display illumination. Automatic shutdown.

This model is compatible with MASTECH T3009 test leads.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Counts 4000
DC voltage  400 mV/4/40/400 V ±0.5%, 1000 V±0.8%
AC voltage 4/40/400 V ±0.8%, 700 V ±1.2%
DC current  400/4000 µA/40/400 mA ±1.2%, 10 A ±2.0%
AC current  400/4000 µA/40/400 mA ±1.5%, 10 A ±3%
Frequency 5/50/500 Hz/5/50 kHz ±2.0%
Resistance 400 Ω/4/40/400 kΩ/4 MΩ ±1.0%, 40 MΩ ±2.0%
Temperature measurement range t°C -20°C - 1000°C
Capacitance 50 nF ±5.0%, 500 nF/5/50/100 µF ±3.0%
Conductivity wire identification yes
Diode, transistor test yes
Automatic power-off yes
Data Hold yes
Display illumination yes
Measurement mode of relative quantity yes
Pulse ratio 0,1% – 99,9%
PC interface PC compatible
Read more
Description

High precision and multifunctional professional digital multimeter MASTECH MS8226 provides temperature, pulse ratio, frequency and capacity measuring. Relative measurement mode (REL). Software and PC interface. Overload indication. Display illumination. Automatic shutdown.

This model is compatible with MASTECH T3009 test leads.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Counts 4000
DC voltage  400 mV/4/40/400 V ±0.5%, 1000 V±0.8%
AC voltage 4/40/400 V ±0.8%, 700 V ±1.2%
DC current  400/4000 µA/40/400 mA ±1.2%, 10 A ±2.0%
AC current  400/4000 µA/40/400 mA ±1.5%, 10 A ±3%
Frequency 5/50/500 Hz/5/50 kHz ±2.0%
Resistance 400 Ω/4/40/400 kΩ/4 MΩ ±1.0%, 40 MΩ ±2.0%
Temperature measurement range t°C -20°C - 1000°C
Capacitance 50 nF ±5.0%, 500 nF/5/50/100 µF ±3.0%
Conductivity wire identification yes
Diode, transistor test yes
Automatic power-off yes
Data Hold yes
Display illumination yes
Measurement mode of relative quantity yes
Pulse ratio 0,1% – 99,9%
PC interface PC compatible
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • porosity
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • connection to PC (RS232)
  • automatic shutdown/sleep mode
  • relative measurements
  • diode test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 1000 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 100 μF
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • yes
PC connection
  • RS232
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
AC Voltage
  • up to 700 V
Continuity test
  • yes
Frequency
  • up to 50 kHz
Battery Testing
  • no
