Digital Multimeter MASTECH MS8264
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
Video
Video
0.72 kg Warranty: 6 months
Capacity, temperature and frequency measurement. Digit capacity - 1999. Self-repair safety device
You may also like
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT55
USD 30.31
Add to wishlist
Add to cart
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, as well as diode, transistor and continuity tests.
Bestseller
Availability in stock:
HK
ID: 834629 0.82 kg
Bestseller
New
Add to wishlist
Digital Multimeter Accta AT-280
USD 19.12
Add to wishlist
Add to cart
True RMS multimeter that measures AC/DC current and voltage, resistance, inductance, conductance, capacitance, frequency, and temperature. May be used for diode and transistor testing.
Bestseller
New
Availability in stock:
HK
ID: 891572 0.714 kg
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT39C+
USD 15.26
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature and hFE (transistor measurement). Diode, continuity and non-contact voltage (NCV) testing. Manual range selection.
Bestseller
Availability in stock:
HK
ID: 883714 0.5 kg
Bestseller
Add to wishlist

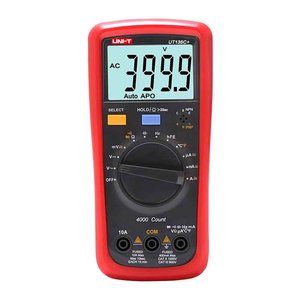

Digital Multimeter UNI-T UT136C+
USD 18.86
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature, hFE (transistor measurement), and also performs diode and transistor tests.
Bestseller
Availability in stock:
HK
ID: 883716 0.5 kg
Description

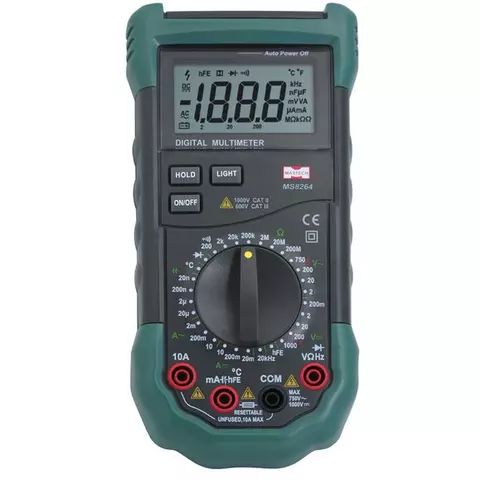

Self-repair safety device MASTECH MS8264 with measurement of capacity, temperature and frequency option.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Counts | 1999 |
| DC voltage | 200 mV/2/20/200 V ±0.5%, 1000 V ±0.8% |
| AC voltage | 2/20/200 V ±0.8%, 750 V ±1.2% |
| DC current | 20 mA/200 mA ±1.5%, 10 A ±2.0% |
| AC current | 2 mA ±1.0%, 200 mA ±1.8%, 10 A ±3.0% |
| Resistance | 200 Ω/2/20/200/20 MΩ ±1.0%, 200 MΩ ±5.0% |
| Temperature measurement range t°C | -20°C-1000°C ±2.0% |
| Transistors current gain rate | up to 1000 |
| Capacitance | 2/20/200 nF/2/20 µF ±4.0% |
| Conductivity wire identification | yes |
| Diode, transistor test | yes |
| Automatic power-off | yes |
| Data Hold | yes |
| Overload protection | yes |
| Display illumination | yes |
| Power source | 6F22 (9 V) |
Read more
Description
Self-repair safety device MASTECH MS8264 with measurement of capacity, temperature and frequency option.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Counts | 1999 |
| DC voltage | 200 mV/2/20/200 V ±0.5%, 1000 V ±0.8% |
| AC voltage | 2/20/200 V ±0.8%, 750 V ±1.2% |
| DC current | 20 mA/200 mA ±1.5%, 10 A ±2.0% |
| AC current | 2 mA ±1.0%, 200 mA ±1.8%, 10 A ±3.0% |
| Resistance | 200 Ω/2/20/200/20 MΩ ±1.0%, 200 MΩ ±5.0% |
| Temperature measurement range t°C | -20°C-1000°C ±2.0% |
| Transistors current gain rate | up to 1000 |
| Capacitance | 2/20/200 nF/2/20 µF ±4.0% |
| Conductivity wire identification | yes |
| Diode, transistor test | yes |
| Automatic power-off | yes |
| Data Hold | yes |
| Overload protection | yes |
| Display illumination | yes |
| Power source | 6F22 (9 V) |
