Digital Multimeter MASTECH MY65

id: 9358

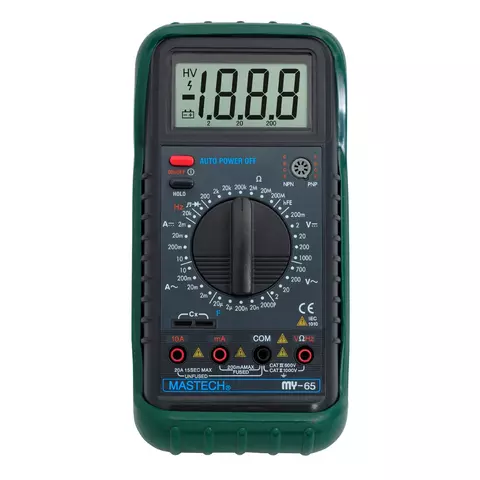

Digital Multimeter MASTECH MY65
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 26.00
Contact
sales team
Overview
0.75 kg Warranty: 6 months
Resolution 4 &#189 digits LCD. Capacitance and frequency measurment. High input resistance doesn't break measuring of parameters.
USD 26.00
Contact
sales team
Compare
Compare
USD 26.00
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT55
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT55
USD 30.31
Add to wishlist
Add to cart
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, as well as diode, transistor and continuity tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 834629 0.82 kg
Digital Multimeter UNI T UT53
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT53
USD 27.97
Add to wishlist
Add to cart
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, temperature, as well as diode, transistor and continuity tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 834628 0.85 kg
Digital Multimeter UNI T UT58E
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT58E
USD 53.62
Add to wishlist
Add to cart
A digital multimeter for AC/DC current and voltage, resistance, capacitance, frequency, temperature measurements, and diode, continuity and transistor tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 819446 0.67 kg
Digital Multimeter UNI T UT39A+
Add to wishlist
Digital Multimeter UNI-T UT39A+
USD 13.99
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, hFE (transistor measurement), Performs continuity and diode testing. Manual range selection.
Availability in stock: HK
Shipping cost
ID: 883715 0.5 kg
Digital Multimeter UNI T UT39C+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT39C+
USD 15.26
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature and hFE (transistor measurement). Diode, continuity and non-contact voltage (NCV) testing. Manual range selection.
Bestseller
Availability in stock: HK
Shipping cost
ID: 883714 0.5 kg
Description

Digital multimeter Mastech MY65 with large 4 ½ digits LCD display provides high accuracy, measuring of capacitance and frequency.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Measuring number per second 2-3
Ranging manual
DC voltage  0,01mV - 1000V
AC voltage 0,1mV - 700V
DC current  0,1µA - 10A
AC current  0,1µA - 10A
Frequency 1 Hz - 20 kHz
Resistance 0,01Ω - 200MΩ
Input resistance  10MΩ
Transistors current gain rate up to 1000
Capacitance 0,1pF - 20µF
Conductivity wire identification <50 Ω
Diode, transistor test yes
Automatic power-off ~40 min
Data Hold yes
Charge battery indication yes
Overload indication "1". yes
Power source 9 V
Dimensions 91 × 189 × 31,5 mm
Read more
Description

Digital multimeter Mastech MY65 with large 4 ½ digits LCD display provides high accuracy, measuring of capacitance and frequency.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Measuring number per second 2-3
Ranging manual
DC voltage  0,01mV - 1000V
AC voltage 0,1mV - 700V
DC current  0,1µA - 10A
AC current  0,1µA - 10A
Frequency 1 Hz - 20 kHz
Resistance 0,01Ω - 200MΩ
Input resistance  10MΩ
Transistors current gain rate up to 1000
Capacitance 0,1pF - 20µF
Conductivity wire identification <50 Ω
Diode, transistor test yes
Automatic power-off ~40 min
Data Hold yes
Charge battery indication yes
Overload indication "1". yes
Power source 9 V
Dimensions 91 × 189 × 31,5 mm
Specifications
Type
  • digital
Range Selection
  • manual range
Digit Capacity
  • 3999
DC Voltage
  • up to 1000 V
Resistance
  • up to 200 MOhm
Capacitance
  • up to 20 μF
Frequency
  • up to 20 kHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
AC Voltage
  • up to 700 V
Continuity test
  • yes
Battery Testing
  • no
