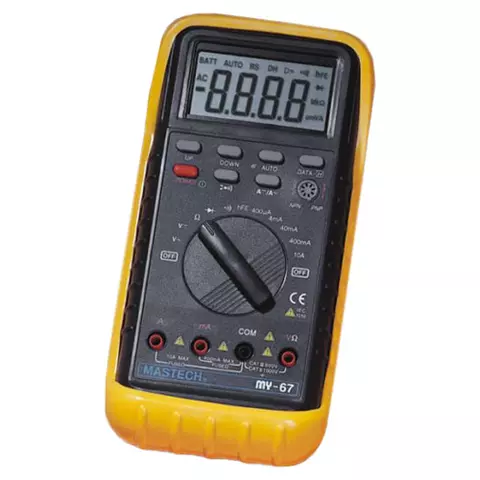

Digital Multimeter MASTECH MY67

id: 819040
Digital Multimeter MASTECH MY67
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
0.4 kg Warranty: 6 months
High-precision digital multimeter for AC/DC current and voltage, resistance, transistor current gain measurements and continuity, diod tests.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT53
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT53
USD 27.97
Add to wishlist
Add to cart
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, temperature, as well as diode, transistor and continuity tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 834628 0.85 kg
Digital Multimeter UNI T UT55
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT55
USD 30.31
Add to wishlist
Add to cart
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, as well as diode, transistor and continuity tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 834629 0.82 kg
Digital Multimeter UNI T UT136C+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT136C+
USD 18.86
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature, hFE (transistor measurement), and also performs diode and transistor tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 883716 0.5 kg
Description

High-precision digital multimeter measures AC/DC current and voltage, resistance, transistor current gain and tests continuity and diodes.

MASTECH MY67 Digital Multimeter Features

  • Functions:
    • AC/DC current and voltage
    • resistance
    • transistor current gain
    • continuity test (with buzzer)
    • diode test
  • Data Hold function
  • Automatic power off function after 40 min standstill
  • Auto ranging accept manual current ranging.
  • Low battery indicator
  • Analog-to-digital converter (ADC) with a use of double integration measurement method.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

MASTECH MY67 Digital Multimeter Technical Specifications

Display 3¾ digit LCD
DC voltage, V 400mV ±0.8%
4/40/400V ±0.5%
1000V ±0.8%
AC voltage, V 4/40/400V±0.6%
700V ±1.2%
DC current, A 0,4mA/4mA/40mA ±0.8%
400mA ±1.2%
10A ±2.0%
 AC current, A 0,4mA/4mA/40mA (± 0.8%)
400mA (± 1.2%)
10A (± 3.0%)
Resistance, Ω 400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±0.8%
40MΩ ±1.2%
Continuity test buzzer sounds if R <50Ω
Power Supply 9V battery
Dimensions (H × W × D), mm 189 × 91 × 31,5
Weight, g (with battery) 310
Read more
Description

High-precision digital multimeter measures AC/DC current and voltage, resistance, transistor current gain and tests continuity and diodes.

MASTECH MY67 Digital Multimeter Features

  • Functions:
    • AC/DC current and voltage
    • resistance
    • transistor current gain
    • continuity test (with buzzer)
    • diode test
  • Data Hold function
  • Automatic power off function after 40 min standstill
  • Auto ranging accept manual current ranging.
  • Low battery indicator
  • Analog-to-digital converter (ADC) with a use of double integration measurement method.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

MASTECH MY67 Digital Multimeter Technical Specifications

Display 3¾ digit LCD
DC voltage, V 400mV ±0.8%
4/40/400V ±0.5%
1000V ±0.8%
AC voltage, V 4/40/400V±0.6%
700V ±1.2%
DC current, A 0,4mA/4mA/40mA ±0.8%
400mA ±1.2%
10A ±2.0%
 AC current, A 0,4mA/4mA/40mA (± 0.8%)
400mA (± 1.2%)
10A (± 3.0%)
Resistance, Ω 400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±0.8%
40MΩ ±1.2%
Continuity test buzzer sounds if R <50Ω
Power Supply 9V battery
Dimensions (H × W × D), mm 189 × 91 × 31,5
Weight, g (with battery) 310
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • diode test
  • transistors test
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 1000 V
Resistance
  • up to 40 MOhm
DC
  • up to 10 A
AC
  • up to 10 A
Capacitance
  • does not measure the capacitance
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
AC Voltage
  • up to 700 V
Continuity test
  • yes
Battery Testing
  • no
