Digital Multimeter Pro'sKit 303-150NCS

id: 4973

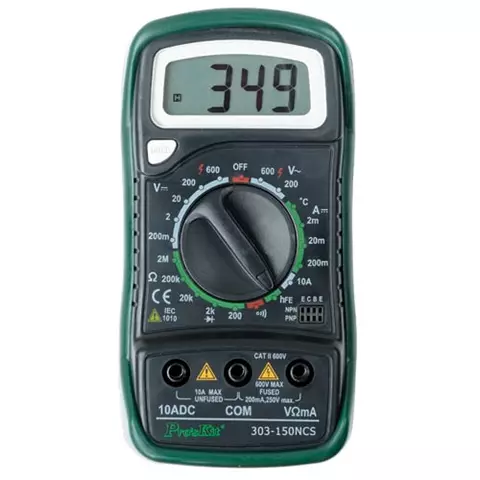

Digital Multimeter Pro'sKit 303-150NCS
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
Rate product
0.425 kg Warranty: 6 months
Digital multimeter with basic function package and temperature measurement function. Audible indication of wire identification function. Read more
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Multimeter Accta AT 205
New
Add to wishlist
ID: 890292
Digital Multimeter Accta AT-205
USD 9.63
Add to wishlist
Add to cart
True RMS multimeter used to measure AC/DC voltage and current, capacitance, frequency and resistance. May be used to perform diode and continuity tests.
Availability in stock: HK
Shipping cost
ID: 890292 0.4 kg
Description

Pro'sKit 303-150NCS is a digital multimeter with basic function package and temperature measurement function. With audible indication of wire identification function.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Digits 3 1/2
Auto/Manual ranging manual
Counts 1999
DC voltage  200mV/2V ±0.5% 20/200/600V ±0.8%
AC voltage  200/600V ±1.2%
DC current  200µ A/2/20m A ±1.0%, 200m A ±21.5%, 10A ±3.0%
Resistance  200Ω/2K/20K/200K Ω ±0.8%
2M Ω ±1.0%
Temperature  -20~0/0~400 ±1%
1000°C ±2%
Transistors current gain rate up to 1000
Conductivity with beeper yes
Diode, transistor test yes
Data Hold yes
EN61010-1 CAT II/CAT III 600/300V
Power source 6F22(9V) x 1
Dimensions 138 x 69 x31mm
Weight (with battery) 325g
Specifications
Type
  • digital
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 2 MOhm
DC
  • up to 10 A
AC
  • does not measure the AC
Capacitance
  • does not measure the capacitance
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
Battery Testing
  • no
