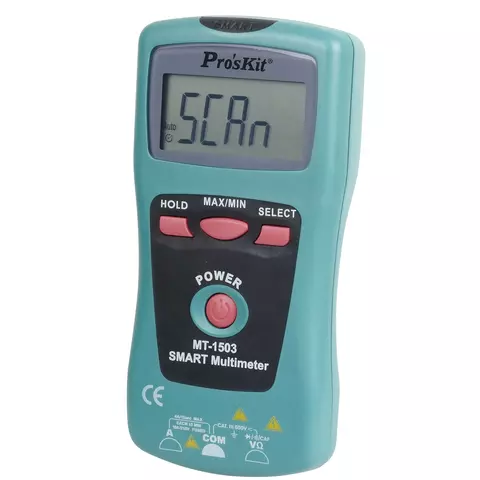

Digital Multimeter Pro'sKit MT-1503

id: 818915
0.35 kg Warranty: 6 month (s)
Digital multimeter for AC/DC voltage and current, resistance, capacitance measurements, and for continuity and diode tests.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

Digital multimeter measures AC/DC voltage and current, resistance, capacitance, tests continuity and diodes.

Pro'sKit MT-1503 Digital Multimeter Features

  • Large 3¾ digit LCD (3999)
  • 0.5% best accuracy
  • Functions:
    • AC/DC voltage and current
    • resistance
    • capacitance
    • continuity (with buzzer)
    • diode test
  • Data hold function
  • Min/Max measurements
  • Auto/Manual ranging
  • Auto power off
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Pro'sKit MT series Digital Multimeters Comparative Specifications

Model MT-1610 MT-1620 MT-1503
Display  3½ digit (1999) LCD 3¾ digit (3999) LCD
DC voltage, V 200mV/2V/20V/200V ±(0.8%+2d)
1000V ±(1.2%+3d)
400mV/4V/40V/400V ±(0.7%+2d)
600V ±(1.0%+2d)
400mV/4V/40V/400V ±(0.5%+3d)
500V ±(0.8%+3d)
AC voltage, V 200mV±(1.2%+3d)
2V/20V/200V ±(0.8%+3d)
700V ±(1.2%+5d)
4V/40V/400V ±(0.8%+3d)
600V ±(1.5%+5d)
400mV ±(1.2%+3d)
4V/40V/400V ±(0.8%+3d)
500V ±(1.2%+3d)
DC current, A 200μA/2mA/20mA ±(0.8%+3d)
200mA ±(1.5%+2d)
10A ±(2.0%+5d)
40mA/400mA ±(1.2%+3d)
10A ±(2.0%+10d)
5mA - 400mA ±(2.0%+5d)
4A ±(2.0%+5d)
AC current, A 200μA ±(2.0%+3d)
2mA/20mA ±(1.0%+3d)
200mA ±(1.8%+3d)
10A ±(3.0%+5d)
40mA/400mA ±(1.5%+5d)
10A ±(3.0%+10d)
5mA - 400mA ±(2.5%+5d)
4A ±(2.5%+5d)
Resistance, Ω 200Ω ±(0.8%+3d)
2kΩ/20kΩ/200kΩ/2MΩ ±(0.8%+2d)
20MΩ ±(1.0%+2d)
200MΩ ±(5.0%+10d)
400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±(1.2%+2d)
40MΩ ±(2.0%+5d)
400Ω ±(1.0%+5d)
4kΩ/40kΩ/400kΩ/4MΩ ±(1.0%+3d)
40MΩ ±(2.0%+3d)
Special functions RJ-45/RJ-11 cable test for open circuits, shorts, miswires, reversals, and split pairs
Battery test 1.5/3/9V approx.
Humidity: 30~90% ±5.0%RH
Sound level: 35~100dB ±3.5dB
Illuminance: 4000/40000Lux ±(5.0%+10d)
Smart multimeter
Frequency, Hz - 10Hz ±(2.0%+5d)
100Hz/1000Hz/10kHz ±(1.5%+5d)
100kHz/200kHz ±(2.0%+5d)
-
Capacitance, F - 4nF/40nF/400nF/4μF/40μF ±(3.0%+3d)
200μF ±(8.0%+10d)
4nF/40nF/400nF/4μF/40μF ±(3.0%+5d)
400μF-4000μF ±(20.0%+5d)
Temperature, ºC - -200~0ºC ±(5.0%+5d)
0~400ºC ±(1.0%+3d)
400~1000ºC ±(2.0%+3d)
-20~0ºC ±(5.0%+3ºC)
0ºC~20ºC ±(3.0%+3ºC)
20ºC~400ºC ±(2.0%+3ºC)
-
EN61010-1 CAT II/III CATII 1000V/ CATIII 600V
Battery 6F22, 9V ( not included) 1.5V AAA × 2
Size (D × W × H), mm 185 × 85 × 44 178 × 85 × 40 158 × 78.2 × 33.6
Weight, g 360 (including battery) 320 290 (including battery)
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • max / min
  • diode test
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 500 V
AC Voltage
  • up to 500 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 4000 μF
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
DC
  • up to 4 A
AC
  • up to 4 A
Battery Testing
  • no
