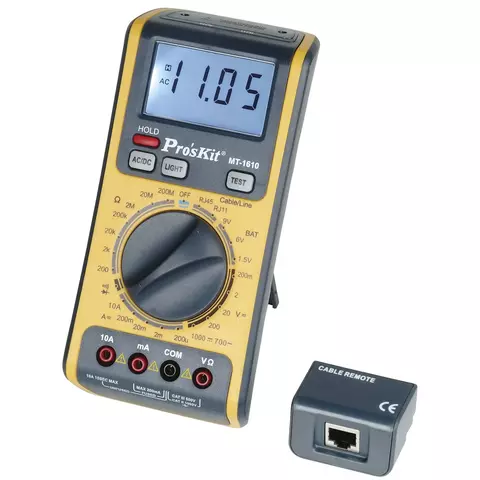

Digital Multimeter Pro'sKit MT-1610

id: 818916
0.55 kg Warranty: 6 month (s)
Digital multimeter for AC/DC voltage and current, resistance measurements and for continuity, diode, 1.5/3/9V battery and RJ-45/RJ-11 cable tests.
Contact
sales team
Contact
sales team
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

Digital multimeter measures AC/DC voltage and current, resistance, tests continuity, diodes, 1.5/3/9V batteries and RJ-45/RJ-11 cables.

Pro'sKit MT-1610 Digital Multimeter Features

  • Large 3½ digit LCD (1999)
  • 0.8% best accuracy
  • Functions:
    • AC/DC voltage and current
    • resistance
    • continuity (with buzzer)
    • diode test
    • RJ-45/RJ-11 cable test for open circuits, shorts, miswires, reversals, and split pairs
    • battery test 1.5/3/9V approx.
  • Data hold function
  • Auto/Manual ranging
  • Auto power off
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Pro'sKit MT series Digital Multimeter Comparative Specifications

Model MT-1610 MT-1620 MT-1503
Display 3½ digit (1999) LCD 3¾ digit (3999) LCD
DC voltage, V 200mV/2V/20V/200V ±(0.8%+2d)
1000V ±(1.2%+3d)
400mV/4V/40V/400V ±(0.7%+2d)
600V ±(1.0%+2d)
400mV/4V/40V/400V ±(0.5%+3d)
500V ±(0.8%+3d)
AC voltage, V 200mV±(1.2%+3d)
2V/20V/200V ±(0.8%+3d)
700V ±(1.2%+5d)
4V/40V/400V ±(0.8%+3d)
600V ±(1.5%+5d)
400mV ±(1.2%+3d)
4V/40V/400V ±(0.8%+3d)
500V ±(1.2%+3d)
DC current, A 200μA/2mA/20mA ±(0.8%+3d)
200mA ±(1.5%+2d)
10A ±(2.0%+5d)
40mA/400mA ±(1.2%+3d)
10A ±(2.0%+10d)
5mA - 400mA ±(2.0%+5d)
4A ±(2.0%+5d)
AC current, A 200μA ±(2.0%+3d)
2mA/20mA ±(1.0%+3d)
200mA ±(1.8%+3d)
10A ±(3.0%+5d)
40mA/400mA ±(1.5%+5d)
10A ±(3.0%+10d)
5mA - 400mA ±(2.5%+5d)
4A ±(2.5%+5d)
Resistance, Ω 200Ω ±(0.8%+3d)
2kΩ/20kΩ/200kΩ/2MΩ ±(0.8%+2d)
20MΩ ±(1.0%+2d)
200MΩ ±(5.0%+10d)
400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±(1.2%+2d)
40MΩ ±(2.0%+5d)
400Ω ±(1.0%+5d)
4kΩ/40kΩ/400kΩ/4MΩ ±(1.0%+3d)
40MΩ ±(2.0%+3d)
Special functions RJ-45/RJ-11 cable test for open circuits, shorts, miswires, reversals, and split pairs
Battery test 1.5/3/9V approx.
Humidity:30~90% ±5.0%RH
Sound level:35~100dB ±3.5dB
Illuminance:4000/40000Lux ±(5.0%+10d)
Smart multimeter
Frequency, Hz - 10Hz ±(2.0%+5d)
100Hz/1000Hz/10kHz ±(1.5%+5d)
100kHz/200kHz ±(2.0%+5d)
-
Capacitance, F - 4nF/40nF/400nF/4μF/40μF ±(3.0%+3d)
200μF ±(8.0%+10d)
4nF/40nF/400nF/4μF/40μF ±(3.0%+5d)
400μF-4000μF ±(20.0%+5d)
Temperature, ºC - -200~0ºC ±(5.0%+5d)
0~400ºC ±(1.0%+3d)
400~1000ºC ±(2.0%+3d)
-20~0ºC ±(5.0%+3ºC)
0ºC~20ºC ±(3.0%+3ºC)
20ºC~400ºC ±(2.0%+3ºC)
-
EN61010-1 CAT II/III CATII 1000V/ CATIII 600V
Battery 6F22, 9V ( not included) 1.5V AA × 2
Size (D × W × H), mm 185 × 85 × 44 178 × 85 × 40 158 × 78 × 34
Weight, g 360 (including battery) 320 290 (including battery)
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • diode test
  • cable tester
  • battery test
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 1000 V
Resistance
  • up to 200 MOhm
DC
  • up to 10 A
AC
  • up to 10 A
Capacitance
  • does not measure the capacitance
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
AC Voltage
  • up to 700 V
Continuity test
  • yes
NCV
  • no
Battery Testing
  • yes
