Digital Multimeter Pro'sKit MT-1705
id: 861892
Digital Multimeter Pro'sKit MT-1705
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
1 kg Warranty: 12 months
True RMS digital multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency and can be used for continuity and diode tests. Read more
You may also like
New
ID: 890293
Digital Multimeter Accta AT-201
USD 6.75
Add to cart
A reliable and compact multimeter designed to measure AC/DC voltage, DC current and resistance, and also to perform diodes and batteries testing.
Availability in stock:
HK
ID: 890293 0.4 kg
New
Add to wishlist
ID: 890292
Digital Multimeter Accta AT-205
USD 9.63
Add to wishlist
Add to cart
True RMS multimeter used to measure AC/DC voltage and current, capacitance, frequency and resistance. May be used to perform diode and continuity tests.
Availability in stock:
HK
ID: 890292 0.4 kg
New
Add to wishlist
ID: 891577
Pocket Digital Multimeter Accta AT-180
USD 13.06
Add to wishlist
Add to cart
A reliable True RMS multimeter used to measure AC/DC voltage and current, capacitance, frequency, resistance, duty cycle, and temperature, and to perform diode and continuity tests.
Availability in stock:
HK
ID: 891577 0.4 kg
Description

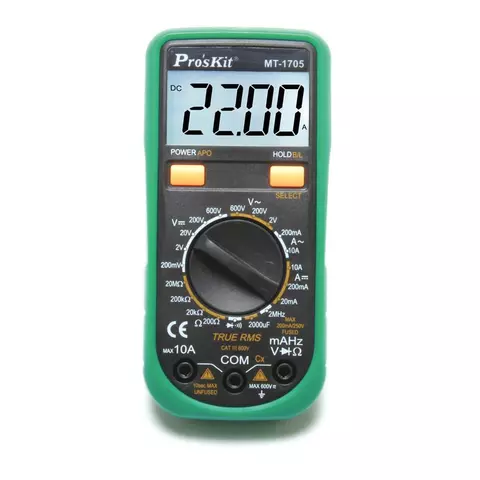

Pro'sKit MT-1705 is a True RMS digital multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency and can be used for continuity and diode tests.
Features
- Measurement functions:
- AC/DC voltage
- AC/DC current
- capacitance
- resistance
- frequency
- diode test
- continuity test
- True RMS measurements
- Data hold
- Auto power-off
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Display | 1999 counts, 3 1/2 digits, LCD, backlight | |
| DC voltage | Range | 200 mV / 2 V / 20 V / 200 V / 600 V |
| Accuracy | ±(0.5%+3) | |
| AC voltage | Range | 2 V / 200 V / 600 V |
| Accuracy | ±(8.0%+15) | |
| DC current | Range | 20 mA / 200 mA / 10 A |
| Accuracy | ±(1.2%+8) | |
| AC current | Range | 200 mA / 10 A |
| Accuracy | ±(8.0%+15) | |
| Resistance | Range | 200 Ω / 20 kΩ / 200 kΩ / 20 MΩ |
| Accuracy | ±(0.8％+3) | |
| Capacitance | Range | 20 nF / 200 nF / 2 μF / 20 μF / 200 μF / 2 mF |
| Accuracy | ±(5.0％+10) | |
| Frequency | 10 Hz - 2 MHz | |
| Power | 1.5 V AAA battery × 2 pcs. | |
| Dimensions | 150 × 73.5 × 35 mm | |
Package Contents
- Multimeter Pro'sKit MT-1705 (1 pc.)
- Test leads (1 pair)
- User manual (1 pc.)
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| Frequency |
|
| Capacitance |
|
| NCV |
|
| Battery Testing |
|
