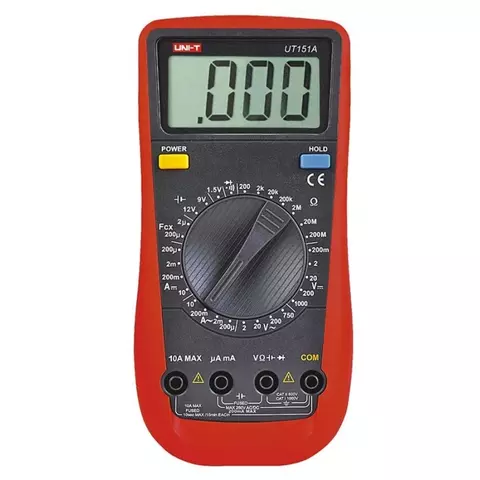

Digital Multimeter UNI-T UT151A

id: 886862
0.5 kg Warranty: 24 month (s)
Digital multimeter used for measuring functions AC/DC voltage, AC/DC current, resistance, capacitance, as well as for diode, battery and continuity testing. Manual-ranging.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

UNI-T UT151A is a manual ranging digital multimeter used for measuring functions AC/DC voltage, AC/DC current, resistance and capacitance, as well as for diode, battery and continuity testing.

Features

  • Capacitance, voltage, resistance and current measuring.
  • Manual ranging.
  • Data hold function.
  • Diode, battery and continuity testing.
  • Auto power off.
  • Low battery indication.

Technical Specifications

Functions Accuracy
DC voltage 200 mV / 2 V / 20 V / 200 V / 1000 V 0,5%+1
AC voltage 2 V / 20 V / 200 V / 750 V 0,8%+3
DC current 200 μA / 2 mA / 200 mA / 20 A 0,8%+1
AC current 200 μA / 2 mA / 200 mA / 20 A 1,0%+3
Resistance 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ 1,0%+2
Capacitance 20 μF / 200 μF 5,0%+4
Battery testing 12 V, 9 V, 1.5 V 2,5%+2
General Specifications
Power 9 V battery (6F22)
Display 63 x 29 mm, 1999 count
Dimensions 186 × 91 × 39 mm
Weight ~ 300 g

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

User Manual

PDF  Download UNI-T UT151A User Manual.

Package Contents

  • Digital Multimeter UNI-T UT151A – 1 pc.
  • Test leads – 2 pcs.
  • Battery – 1 pc.
  • User Manual – 1 pc.
Specifications
Type
  • digital
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 200 MOhm
Capacitance
  • up to 200 μF
DC
  • up to 10 A
AC
  • up to 10 A
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • yes
