Digital Multimeter UNI-T UT151F

id: 849280
0.7 kg Warranty: 24 month (s)
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, as well as diode and continuity tests.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

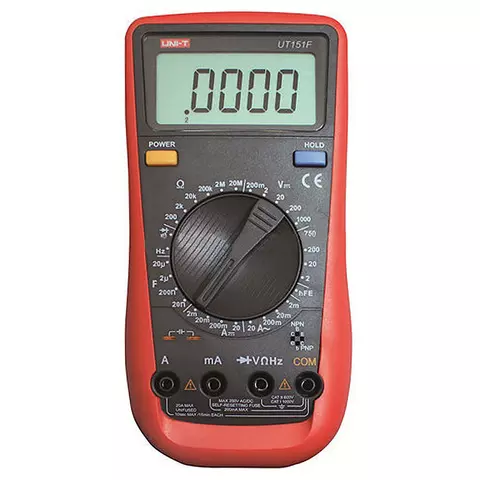

UNI-T UT151F is a high-quality multifunction digital multimeter. UNI-T UT151F is perfect for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, as well as preforming diode and continuity tests.

Features

  • LCD display with backlight.
  • Auto power-off function.
  • Data hold function.
  • Manual ranging.
  • Multiple measurements:
    • AC voltage
    • DC voltage
    • AC current
    • DC current
    • resistance
    • capacitance
    • frequency
    • diode testing
    • continuity test

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Function Range Accuracy
DC Voltage 200 mV / 2 V / 20 V / 200 V / 1000 V ±(0.05%+3)
AC Voltage 200 mV / 2 V / 20 V / 200 V / 750 V ±(0.5%+10)
DC Current 2 mA / 20 mA / 200 mA / 20 A ±(0.5%+5)
AC Current 2 mA / 20 mA / 200 mA / 20 A ±(0.8%+10)
Resistance 200 Ω / 2 KΩ / 20 KΩ / 200 KΩ / 2 MΩ / 20 MΩ ±(0.3%+1)
Capacitance 20 nF / 200 nF / 2 μF / 20 μF ±(4%+20)
Frequency 20 kHz ±(1.5%+5)
Imput Impedance for DC Voltage Measurement ≥ 10 MΩ
General Characteristics
Power Supply 9 V Battery (6F22)
Display LCD, 63 × 29 mm
Size 186 × 91 × 39 mm
Weight 300 g

Package Contents

  • UNI-T UT151F digital multimeter unit (1 pc.)
  • Test leads (1 pair)
  • Battery (1 pc.)
  • User manual (1 pc.)
Specifications
Type
  • digital
Range Selection
  • manual range
Digit Capacity
  • 19 999
DC Voltage
  • up to 600 V
AC Voltage
  • up to 600 V
Resistance
  • up to 200 MOhm
Capacitance
  • up to 20 μF
Frequency
  • up to 20 kHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
