Digital Multimeter UNI-T UT151G
Digital Multimeter UNI-T UT151G
USD 49.00
ID: 844700 1 kg
Out of stock
Warranty: 24 month (s)

USD 49.00

Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, as well as diode and continuity tests.
  • Overview
  • Specifications
  • Similar Items
  • Delivery
  • Payment
  • Warranty

Overview

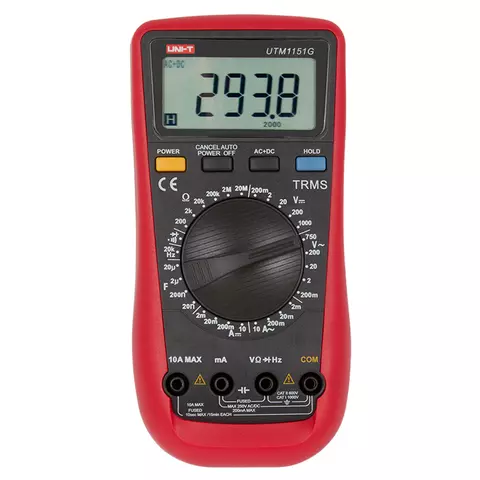

UNI-T UT151G is a high-quality multifunction pocket digital multimeter. UNI-T UT151G is perfect for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, as well as preforming diode and continuity tests.

Features

  • True RMS
  • Compact and lightweight pocket-size device.
  • LCD display with backlight.
  • Auto power-off function.
  • Data hold function.
  • Manual ranging.
  • Multiple measurements:
    • AC voltage
    • DC voltage
    • AC current
    • DC current
    • resistance
    • capacitance
    • frequency
    • diode testing
    • continuity test

Video

Technical Specifications

Function Range Accuracy
DC Voltage 200 mV / 2 V / 20 V / 200 V / 1000 V ±(0.05%+3)
AC Voltage 200 mV / 2 V / 20 V / 200 V / 750 V ±(0.8%+20)
DC Current 2 mA / 20 mA / 200 mA / 10 A ±(0.5%+5)
AC Current 2 mA / 20 mA / 200 mA / 10 A ±(1%+20)
Resistance 200 Ω / 2 KΩ / 20 KΩ / 200 KΩ / 2 MΩ / 20 MΩ ±(0.3%+1)
Capacitance 20 nF / 200 nF / 2 μF / 20 μF ±(4%+20)
Frequency 20 kHz ±(1.5%+5)
Imput Impedance for DC Voltage Measurement ≥ 10 MΩ
General Characteristics
Power 9 V Battery (6F22)
Display LCD, 63 × 29 mm
Size 186 × 91 × 39 mm
Weight 300 g

Package Contents

  • UNI-T UT151G digital multimeter unit (1 pc.)
  • Test leads (1 pair)
  • Battery (1 pc.)
  • User manual (1 pc.)

Specifications

Type
  • digital
Range Selection
  • manual range
Digit Capacity
  • 19 999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 20 MOhm
Capacitance
  • up to 20 μF
Frequency
  • up to 20 kHz
DC
  • up to 20 A
AC
  • up to 20 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • yes
Continuity test
  • yes
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
