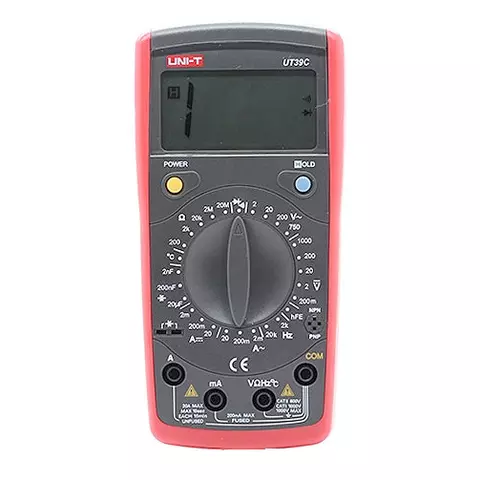

Digital Multimeter UNI-T UT39C
when in stock
You may also like
This digital multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, temperature, and tests diodes, continuity and transistors.
Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy UNI-T UT-T03 Temperature Probe.
Manual
This digital multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, temperature, and tests diodes, continuity and transistors.
Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy UNI-T UT-T03 Temperature Probe.
Manual
Download UNI-T UT39C Digital Multimeter User Manual (English)
Features
- Functions:
- AC/DC current and voltage
- resistance
- capacitance
- frequency
- temperature
- continuity test (with buzzer)
- diode test
- transistor test
- Data Hold function
- Manual ranging
- Sleep mode
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Comparative Specifications
| Model | UT39C | UT39E |
|---|---|---|
| Display | LCD 63 × 32 mm, max. 1999 | LCD 61 × 32 mm, max. 19999 |
| DC voltage, V | 200mV/2V/20V/200V/1000V ±(0.5%+1) |
200mV/2V/20V/200V/1000V ±(0.05%+3) |
| AC voltage, V | 2V/20V/200V/750V ±(0.8%+3) |
2V/20V/200V/750V ±(0.5%+10) |
| DC current, A | 2mA/200mA/20A ±(0.8%+1) |
2mA/200mA/20A ±(0.5%+5) |
| AC current, A | 2mA/200mA/20A ±(1%+3) |
2mA/200mA/20A ±(0.8%+5) |
| Resistance, Ω | 200Ω/2kΩ/20kΩ/2MΩ/20MΩ ±(0.8%+10) |
200Ω/2kΩ/20kΩ/2MΩ/20MΩ ±(0.3%+1) |
| Capacitance, F | 2nF/200nF/2µF/20µF ±(4%+3) |
2nF/20nF/200nF/20µF ±(4%+3) |
| Frequency, Hz | 2kHz/20kHz ±(1.5%+5) |
|
| Temperature, ºC | -40ºC ~ 1000ºC ±(2%+8) |
- |
| Sampling rate | 2-3x/s | |
| Power | 9V battery: NEDA 1604, 6F22 or 006P | |
| Dimensions, (H × W × D) mm | 172 × 83 × 38 | |
| Weight, g kg | 310 | |
Package Contents
- Multimeter UT39C
- Test lead
- Point contact temperature probe
- User manual
Note! Batteries are not included in the package.
Optional Accessories
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Capacitance |
|
| Frequency |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| NCV |
|
| Battery Testing |
|
