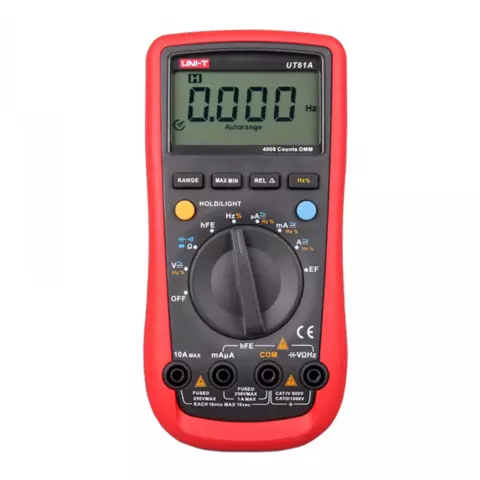

Digital Multimeter UNI-T UT61A

id: 886863
0.5 kg Warranty: 24 month (s)
Multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, as well as diode and continuity tests.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

UNI-T UT61A Digital Multimeter with auto range function is suitable for advanced electronics and electrical users. The device has a CAT IV 600V safety class.

Features

  • Auto range
  • MAX/MIN/REL mode
  • Auto power off
  • LCD backlight
  • Analog bar graph
  • Non-Contact Voltage Indication (EF)
  • Low battery indication
  • Transistor measurement
  • Diode/continuity buzzer
  • Data hold
  • Input protection

Technical Specifications

Function Range Accuracy
DC voltage 1000 V ±(0.5%+1)
AC voltage 750 V ±(1%+3)
DC current 10 A ±(1%+2)
AC current 10 A ±(1.2%+5)
Resistance 40 MΩ ±(1%+2)
Capacitance 4000 μF ±(3%+5)
Frequency 10 Hz~10 MHz ±(0.1%+4)
Duty cycle 0.1%~99.9%
General Characteristics
Power 9 V battery (6F22)
Display LCD, 65 × 43 mm
Size 180 × 87 × 47 mm
Weight 370 g

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

User Manual

PDF  Download UNI-T UT61A User Manual.

Package Contents

  • UNI-T UT61A Digital Multimeter — 1 pc.
  • Test leads — 1 set
  • Multi-purpose socket — 1 pc.

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 4000 μF
Frequency
  • up to 10 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • yes
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
