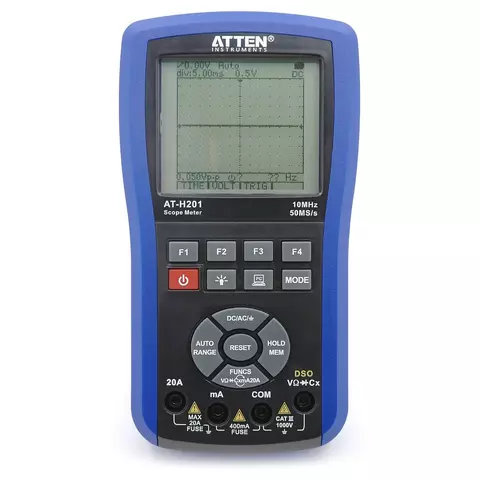

Digital Oscilloscope ATTEN AT-H201

id: 834137
Digital Oscilloscope ATTEN AT-H201
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 245.00
Contact
sales team
Overview
1.5 kg 110, 220 V Warranty: 12 months
Handheld digital oscilloscope/multimeter with 10 MHz bandwidth.
USD 245.00
Contact
sales team
Compare
Compare
USD 245.00
Contact
sales team
Impossible to estimate the shipping cost
Description

ATTEN AT-H201 digital oscilloscope is a high-quality handheld digital oscilloscope (10 MHz). This compact lightweight digital oscilloscope was specially designed for easy and quick on-site testing and diagnostic operations. ATTEN AT-H201 combines all functions of a digital multimeter and a digital oscilloscope.

ATTEN AT-H201 digital oscilloscope is ideal for household applications, as well as production tests, field service, research, design and all other applications involving circuit tests and troubleshooting.

ATTEN AT-H201 Digital Oscilloscope Features

  • Bandwidth: 10 MHz.
  • Sample rate: 50 M Sa/s.
  • Software calibration.
  • Calibrated data storage.
  • Ability to save & reproduce up to 100 waveforms.
  • Mesuring AC/DC voltage and current, RMS value, resistance, capacitance, frequency, diode test.
  • Display: LED back-lit, asjustable contrast.
  • Auto power-off function.
  • Adjustable standby time: 5 min to 6 min.
  • Lithium polymer rechargeable battery.
  • Battery lifetime: 8 hours.
  • External AC charger.
  • USB interface.
  • Comfortable keypad.
  • Compact design, small dimensions, light weight.

ATTEN AT-H201 Digital Oscilloscope Technical Specifications

Interface USB
Battery lifetime 8 hours
Charger 6 V (AC)

Digital Oscilloscope Functional Characteristics

Bandwidth 10 MHz
Sample rate 50 M Sa/s
Input DC, AC, GND
Input impedance 1 Mohm
Vertical sensitivity range 50 mV/div – 200 V/div
Offset range 50 mV/div – 200 V/div ± (5% + 0.1 div)
Sweep rate 0.2 μs/div – 20 s/div
Time base accuracy ± (0.01% + 0.1 div)
Trigger modes Auto, Normal, Single
Auto mersuring accuracy ± (5% + 0.1 div)

Digital Multimeter Functional Characteristics

DC voltage 400.0 mV ~ 1000 V ± (0.75%+10)
AC voltage 400.0 mV ~ 750 V ± (1%+10)
DC current 40 mA ~ 20 A ± (1.2% + 10)
AC current 40 mA ~ 20 A ± (1.2% + 10)
Resistance 400.0 Ω ~ 40.00 MΩ ± (1.0%+5)
Capacitance 51.20 nF ~ 100.0 uF ± (2% + 10)
Frequency 5.12 Hz ~ 10 kHz ± (1.0% + 5)
Duty cycle 0.1 ~ 99.9%
Max testing current 1.5 mA

ATTEN AT-H201 Digital Oscilloscope Package Contents

  • ATTEN AT-H201 digital oscilloscope (1 pc.)
  • Charger (1 pc.)
  • Probes (2 pcs.)
  • User manual (1 pc.)
Read more
Description

ATTEN AT-H201 digital oscilloscope is a high-quality handheld digital oscilloscope (10 MHz). This compact lightweight digital oscilloscope was specially designed for easy and quick on-site testing and diagnostic operations. ATTEN AT-H201 combines all functions of a digital multimeter and a digital oscilloscope.

ATTEN AT-H201 digital oscilloscope is ideal for household applications, as well as production tests, field service, research, design and all other applications involving circuit tests and troubleshooting.

ATTEN AT-H201 Digital Oscilloscope Features

  • Bandwidth: 10 MHz.
  • Sample rate: 50 M Sa/s.
  • Software calibration.
  • Calibrated data storage.
  • Ability to save & reproduce up to 100 waveforms.
  • Mesuring AC/DC voltage and current, RMS value, resistance, capacitance, frequency, diode test.
  • Display: LED back-lit, asjustable contrast.
  • Auto power-off function.
  • Adjustable standby time: 5 min to 6 min.
  • Lithium polymer rechargeable battery.
  • Battery lifetime: 8 hours.
  • External AC charger.
  • USB interface.
  • Comfortable keypad.
  • Compact design, small dimensions, light weight.

ATTEN AT-H201 Digital Oscilloscope Technical Specifications

Interface USB
Battery lifetime 8 hours
Charger 6 V (AC)

Digital Oscilloscope Functional Characteristics

Bandwidth 10 MHz
Sample rate 50 M Sa/s
Input DC, AC, GND
Input impedance 1 Mohm
Vertical sensitivity range 50 mV/div – 200 V/div
Offset range 50 mV/div – 200 V/div ± (5% + 0.1 div)
Sweep rate 0.2 μs/div – 20 s/div
Time base accuracy ± (0.01% + 0.1 div)
Trigger modes Auto, Normal, Single
Auto mersuring accuracy ± (5% + 0.1 div)

Digital Multimeter Functional Characteristics

DC voltage 400.0 mV ~ 1000 V ± (0.75%+10)
AC voltage 400.0 mV ~ 750 V ± (1%+10)
DC current 40 mA ~ 20 A ± (1.2% + 10)
AC current 40 mA ~ 20 A ± (1.2% + 10)
Resistance 400.0 Ω ~ 40.00 MΩ ± (1.0%+5)
Capacitance 51.20 nF ~ 100.0 uF ± (2% + 10)
Frequency 5.12 Hz ~ 10 kHz ± (1.0% + 5)
Duty cycle 0.1 ~ 99.9%
Max testing current 1.5 mA

ATTEN AT-H201 Digital Oscilloscope Package Contents

  • ATTEN AT-H201 digital oscilloscope (1 pc.)
  • Charger (1 pc.)
  • Probes (2 pcs.)
  • User manual (1 pc.)
Specifications
Screen Size
  • 3.1" LCD display
Number of channels
  • single-channel
Type
  • portable
  • multimeter
Bandwidth
  • 10 MHz
Sample Rate
  • 50 MSa/s
