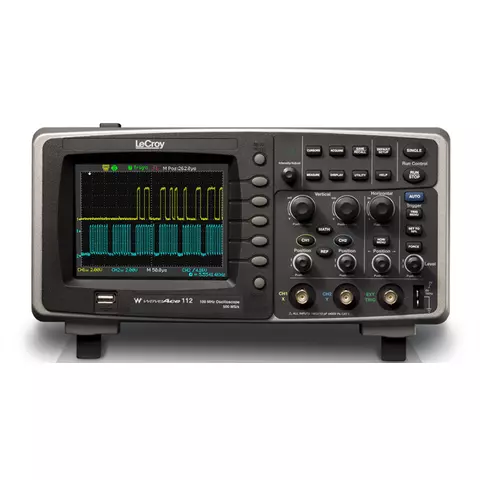

Digital Oscilloscope LeCroy WaveAce 112

id: 832023
5.9 kg 110, 220 V Warranty: 24 month (s)
100 MHz, 2-channel digital oscilloscope with 250 MS/s real-time sampling rate, 4 kpts/ch memory and with 5.7" color LCD.
Price coming soon
Contact
sales team
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

LeCroy WaveAce 112 is a dual-channel digital oscilloscope with 100 MHz bandwith, 250 MS/s real-time sampling rate, 4 kpts/ch memory and with 5.7" color LCD.

Features

  • 2 channels.
  • Bandwidth — 100 MHz.
  • Rise time < 3.5 ns.
  • Long Waveform Memory — 4 kpts/ch.
  • Advanced Triggering — Edge, Pulse Width, Video, Slope (Rise Time).
  • Color TFT 5.7" LCD, 320 × 234 pixels.
  • Multi-language user interface.
  • Context sensitive help.
  • Mathematical capabilities including add, subtract, multiply, divide and FFT.
  • 32 automated measurement parameters.
  • USB Host and Device connections for printers, memory sticks and PC remote control.
  • 10:1, 1:1 switchable passive probes (one per channel).

Manuals

Download LeCroy WaveAce 112 User Manual

Technical Specifications

Vertical System
Bandwidth 100 MHz
Rise Time (Typical) < 3.5 ns
Input Channels 2
Input Impedance 1 MΩ || 13 pF
Input Coupling AC, DC, GND
Max Input Voltage 400 V Pk
Vertical Resolution 8 bits
Sensitivity 2 mV-5 V/div (1-2-5 order)
Offset Range ±2 V @ 2–100 mV/div
±40 V @ 200 mV – 5 V/div
Offset Accuracy ±3.0%
Horizontal System
Timebase Range 2.5 ns/div – 50 s/div
Acquisition
Acquisition Memory 4 kpts
Peak Detect 10 ns
Real Time Sampling Rate 250 MS/s
Interleaved Sampling Rate 500 MS/s
Equivalent Sampling Rate 50 GS/s
Triggering
Trigger Modes Auto, Normal, Single
Trigger Types Edge, Pulse, Video, Slope, Alternative
Trigger Coupling AC, DC, LF Reject, HF Reject
Trigger Slope Positive, Negative
Holdoff Range 100 ns - 1.5 s
External Trigger Range CH1, CH2, ±6 div from center of screen
EXT: ±1.2 V
EXT/5: ±6 V

General Specifications

Input Voltage 100-240 VAC, Automatic AC Voltage Selection
Frequency 50/60/400 Hz
Power 50 VA max.
Interfaces USB, RS-232, LAN
Data Storage .BMP, .CSV
Display Color TFT 5.7" LCD, 320 × 234 pixels
Waveform Display Mode Point, Vector
Setup Storage up to 20 setups to internal memory; USB storage
Math Add, Subtract, Multiply, Divide, FFT
Temperature operating +10 °C to +40 °C
storage -20 °C to +60 °C
Humidity operating 5 to 80% RH (non-condensing)
storage 5 to 95% RH (non-condensing)
Altitude operating up to 3 000 m
storage up to 15 000 m
Dimensions 154 × 133 × 305 mm | 6.06" × 5.23" × 12"
Weight ~ 2.3 kg | 5 lbs

Package Contents

  • LeCroy WaveAce 112 Digital Oscilloscope Unit — 1 pc.
  • Passive Probes — 2 pcs.
  • USB Cable — 1 pc.
  • Power Cable — 1 pc.
  • CD with EasyScope PC Software — 1 pc.
  • User Manual and Quick Reference Guide — 1 pc.
Specifications
Screen Size
  • 5.6" TFT display
Number of channels
  • dual-channel
Storage Capacity
  • 4 kB
Bandwidth
  • 100 MHz
Type
  • desktop
Sample Rate
  • 500 MS/s
