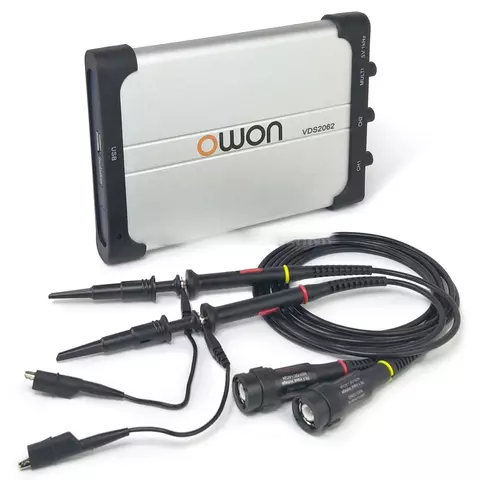

Digital Oscilloscope OWON VDS2062

id: 888004
0.26 kg Warranty: 12 month (s)
2-channel digital oscilloscope with 60 MHz bandwidth, 1 GSa/s sample rate and 10 Mpts wavelength.
Price coming soon
Contact
sales team
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

OWON VDS2062 is a dual-channel digital USB oscilloscope with 60 MHz a bandwidth, 1 GSa/s sample rate and 10 Mpts wavelength. The compact and inexpensive device has excellent technical characteristics of a virtual oscilloscope, which makes it ideal for industrial and home environment usage. It can also be used for education and training.

Features

  • Friendly UI: FFT, or X-Y, and waveform 2 views displayed on the same screen.
  • Multi-trigger option: edge, video, slope, pulse, alternate.
  • Interface: USB.
  • USB isolation: less signal interference, more PC protection.
  • Ultra-thin design for good portability.

Technical Specifications

Bandwidth 60 MHz
Rise Time ≤5.8 ns
Channel 2+1 (multi)
Sample Rate 1 GSa/s
Record Length 10M pts
Vertical Resolution (A/D) 8 bits
Horizontal Scale (s/div) 5 ns/div - 100 s/div
Vertical Sensitivity 5 mV/div - 5 V/div
Input Coupling DC, AC, GND
Input Impedance 1 MΩ ± 2%, 10 pF ± 5 pF
Channels Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage 40V (PK - PK) (DC+AC, PK - PK)
Probe Attenuation Factor 1X, 10X, 100X, 1000X
Trigger Type Edge, Pulse, Video, Slope, Alternate
Cursor Measurements △V, △T
Automatic Measurement Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty
Math Functions Addition, Subtraction, Multiplication, Division, Invert, FFT
Lissajous Curve ±3º
Interface USB 2.0
Power Supply ≤5V/1.5A
Power Consumption ≤6.5W
Dimensions 170 × 120 × 18 mm
Weight 0,26 kg

User Manual

Download OWON VDS2062 User Manual

Package Contents

  • Digital Oscilloscope OWON VDS2062 — 1 pc.
  • Probes — 2 pcs.
  • USB Cable — 1 pc.
  • Software CD — 1 pc.
  • User Manual — 1 pc.
Specifications
Number of channels
  • dual-channel
Bandwidth
  • 60 MHz
Type
  • portable
  • USB
Sample Rate
  • 1 GS/s
Storage Capacity
  • 10 MB
