Overview
4.13 kg 110, 220 V Warranty: 36 months
Dual channel oscilloscope. Bandwidth - 60 MHz, real-time sample rate - 400 MSa/s, equivalent sample rate - 25 GSa/s
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Oscilloscope RIGOL DS1052E
Bestseller
Add to wishlist
Digital Oscilloscope RIGOL DS1052E
USD 389.00
Add to wishlist
Add to cart
50 MHz bandwidths, 1 GSa/s maximum real-time sample rate, 10 GSa/s maximum equivalent-time sample rate and 1Mpts long memory depth.
Bestseller
Availability in stock: HK
Shipping cost
ID: 811980 7.5 kg 110, 220
Description

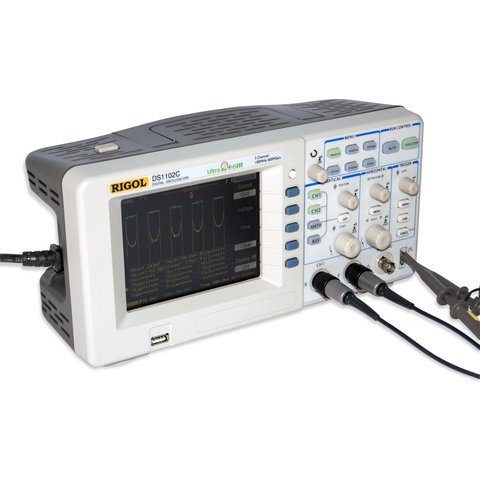

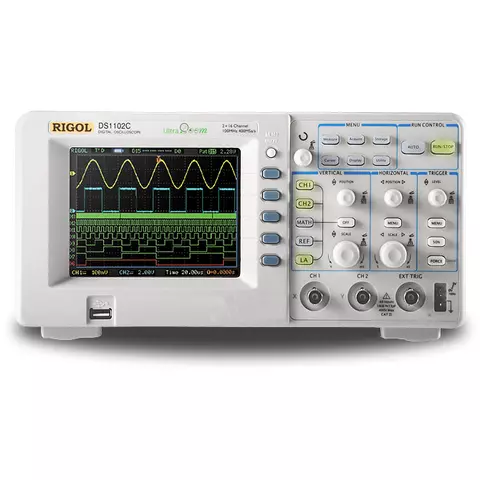

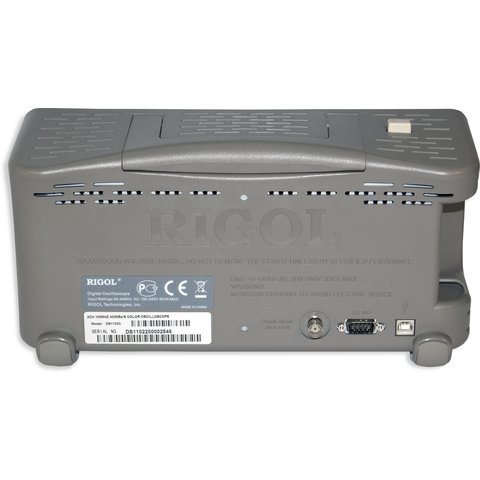

RIGOL DS1062C digital oscilloscope offers exceptional waveform viewing and measurements in a compact, lightweight package. RIGOL DS1062C digital oscilloscope is ideal for production tests, field service, research and design and all of the applications involving analog/digital circuits test and troubleshooting, as well as education and training.

RIGOL DS1062C Digital Oscilloscope Features

  • Ultra compact design, small dimensions
  • 5.7-inch color LCD display
  • Memory depth: 1M points (Single Channel), 512K points (Dual Channels)
  • Versatile trigger modes: Edge, Video, Pulse Width, Slope, Alternative, Pattern and Duration
  • Adjustable trigger sensitivity: filters noise from the trigger signal to avoid false triggers
  • 400 MSa/s maximum real-time sample rate and 25 GSa/s maximum equivalent time sample rate
  • 20 automatic measurements
  • Cursor measurements: Manual, Track and Auto Measure Modes
  • 10 waveforms, 10 setups, BMP and CSV storage
  • Math functions: Add, Subtract, Multiply, FFT, Invert
  • Automatic self calibration
  • Special digital filter and waveform recorder
  • Built-in hardware frequency counter
  • Dual channels plus external trigger

RIGOL DS1062C Digital Oscilloscope User Manual

Download RIGOL DS1062C digital oscilloscope user manual

RIGOL DS1062C Digital Oscilloscope Technical Specifications

Bandwidth 60 MHz
Real time sample rate 400 MSa/s
Equivalent sample rate 25 GSa/s
Memory depth
  • 1M points (single channel)
  • 512K points (dual channels)
  • 512K points (logic analyzer)
Rise time 5.8 ns
Time base range 5 ns/div - 50 s/div
Trigger modes Edge, Video, Pulse Width, Slope, Alternate
Input impedance 1 M Ω II 15 pF
Vertical sensitivity 2 mV/div - 5 V/div
Vertical resolution 8 bits
Maximum input voltage 400 V (DC+AC peak)
Scroll range 500 ms/div - 50 s/div
Automatic measurements Vpp, Vmax, Vmin,  Vtop, Vbase, Vamp,Vrms, Vavg, Vover, Vpre, Freq, Period, Rise, Fall, +Width, -Width, +Duty, -Duty, DelayA, DelayB
Math Add, Subtract, Multiply, FFt, Invert
Storage
  • internal: 10 waveforms and 10 setups
  • USB: BMP, CSV, waveforms and setups
Display 5.7-inch color LCD, 320 x 234
Power source 100-240 V / 50 VA max
Weight 2.3 kg

RIGOL DS1062C Digital Oscilloscope Package

  • RIGOL DS1062C digital oscilloscope (1 pc.)
  • Power cable (1 pc.)
  • Test leads (2 pcs.)
  • USB data cable (1 pc.)
  • User manual (1 pc.)
  • Software (1 pc.)
Read more
Description

RIGOL DS1062C digital oscilloscope offers exceptional waveform viewing and measurements in a compact, lightweight package. RIGOL DS1062C digital oscilloscope is ideal for production tests, field service, research and design and all of the applications involving analog/digital circuits test and troubleshooting, as well as education and training.

RIGOL DS1062C Digital Oscilloscope Features

  • Ultra compact design, small dimensions
  • 5.7-inch color LCD display
  • Memory depth: 1M points (Single Channel), 512K points (Dual Channels)
  • Versatile trigger modes: Edge, Video, Pulse Width, Slope, Alternative, Pattern and Duration
  • Adjustable trigger sensitivity: filters noise from the trigger signal to avoid false triggers
  • 400 MSa/s maximum real-time sample rate and 25 GSa/s maximum equivalent time sample rate
  • 20 automatic measurements
  • Cursor measurements: Manual, Track and Auto Measure Modes
  • 10 waveforms, 10 setups, BMP and CSV storage
  • Math functions: Add, Subtract, Multiply, FFT, Invert
  • Automatic self calibration
  • Special digital filter and waveform recorder
  • Built-in hardware frequency counter
  • Dual channels plus external trigger

RIGOL DS1062C Digital Oscilloscope User Manual

Download RIGOL DS1062C digital oscilloscope user manual

RIGOL DS1062C Digital Oscilloscope Technical Specifications

Bandwidth 60 MHz
Real time sample rate 400 MSa/s
Equivalent sample rate 25 GSa/s
Memory depth
  • 1M points (single channel)
  • 512K points (dual channels)
  • 512K points (logic analyzer)
Rise time 5.8 ns
Time base range 5 ns/div - 50 s/div
Trigger modes Edge, Video, Pulse Width, Slope, Alternate
Input impedance 1 M Ω II 15 pF
Vertical sensitivity 2 mV/div - 5 V/div
Vertical resolution 8 bits
Maximum input voltage 400 V (DC+AC peak)
Scroll range 500 ms/div - 50 s/div
Automatic measurements Vpp, Vmax, Vmin,  Vtop, Vbase, Vamp,Vrms, Vavg, Vover, Vpre, Freq, Period, Rise, Fall, +Width, -Width, +Duty, -Duty, DelayA, DelayB
Math Add, Subtract, Multiply, FFt, Invert
Storage
  • internal: 10 waveforms and 10 setups
  • USB: BMP, CSV, waveforms and setups
Display 5.7-inch color LCD, 320 x 234
Power source 100-240 V / 50 VA max
Weight 2.3 kg

RIGOL DS1062C Digital Oscilloscope Package

  • RIGOL DS1062C digital oscilloscope (1 pc.)
  • Power cable (1 pc.)
  • Test leads (2 pcs.)
  • USB data cable (1 pc.)
  • User manual (1 pc.)
  • Software (1 pc.)
Specifications
Screen Size
  • 5.6" TFT display
Number of channels
  • dual-channel
Storage Capacity
  • 1 MB
Bandwidth
  • 60 MHz
Type
  • desktop
Sample Rate
  • 400 MSa/s
