Digital Oscilloscope RIGOL DS1062CD

id: 810628
Digital Oscilloscope RIGOL DS1062CD
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
4.6 kg 110, 220 V Warranty: 36 months
Dual channel digital oscilloscope with logic analyzer and bandwidth – 60 MHz, real-time sample rate – 400 MSa/s, equivalent sample rate – 25 GSa/s.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

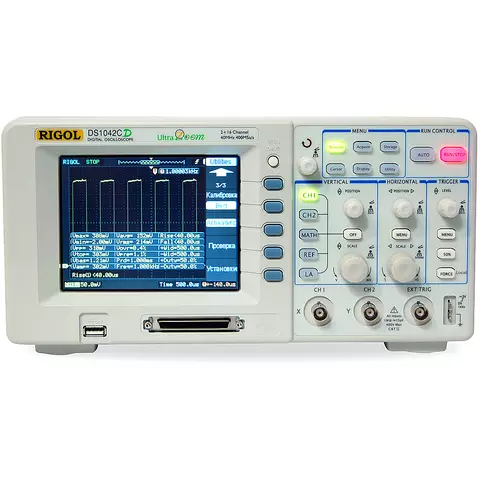

RIGOL DS1062CD digital oscilloscope provides exceptionally accurate waveform viewing and measurements in a compact, lightweight package. RIGOL DS1062CD digital oscilloscope is ideal for production tests, field service, research, design and other applications involving analog/digital circuits test and troubleshooting, as well as education and training.

RIGOL DS1062CD Digital Oscilloscope Features

  • Ultra compact design, small dimensions
  • Bandwidth: 60 MHz
  • Dual channels
  • Real-time sample rate: 400 MSa/s maximum
  • Equivalent time sample rate: 25 GSa/s maximum
  • Memory depth: 1 M points (Single Channel), 512 K points (Dual Channels)
  • 20 automatic measurements
  • Versatile trigger modes: Edge, Pulse, Slope, Video, Alternative, Pattern and Duration
  • Adjustable trigger sensitivity
  • 10 waveforms, 10 setups, BMP and CSV storage
  • Math functions: Add, Subtract, Multiply, FFT, Invert
  • Automatic self-calibration
  • Special digital filter and waveform recorder
  • Built-in hardware frequency counter
  • 5.7-inch color LCD display
  • Multi-language user interface, built-in help system

RIGOL DS1062CD Digital Oscilloscope User Manual

Download RIGOL DS1062CD digital oscilloscope user manual

RIGOL DS1062CD Digital Oscilloscope Technical Specifications

Bandwidth 60 MHz
Real time sample rate 400 MSa/s
Equivalent sample rate 25 GSa/s
Memory depth
  • 1 M points (single channel)
  • 512 K points (dual channels)
  • 512 K points (logic analyzer)
Rise time 5.8 ns
Time base range 5 ns/div - 50 s/div
Trigger modes Edge, Video, Pulse Width, Slope, Alternate
Input impedance 1 M Ω || 13 pF
Vertical sensitivity 2 mV/div - 5 V/div
Vertical resolution 8 bits
Maximum input voltage 400 V (DC+AC peak)
Scroll range 500 ms/div - 50 s/div
Automatic measurements Vpp, Vmax, Vmin,  Vtop, Vbase, Vamp,Vrms, Vavg, Vover, Vpre, Freq, Period, Rise, Fall, +Width, -Width, +Duty, -Duty, DelayA, DelayB
Math Add, Subtract, Multiply, FFt, Invert
Storage
  • internal: 10 waveforms and 10 setups
  • USB: BMP, CSV, waveforms and setups
Display 5.7-inch color LCD, 320 x 234
Power source 100-240 V / 50 VA max
Weight 2.3 kg

RIGOL DS1062CD Digital Oscilloscope Package

  • RIGOL DS1062CD digital oscilloscope (1 pc.)
  • Power cable (1 pc.)
  • Test leads (2 pcs.)
  • Logic analyzer module (1 pc.)
  • Logic analyzer clips (16 pcs.)
  • Logic analyzer data connector (1 pc.)
  • USB data cable (1 pc.)
  • User manual (1 pc.)
  • Software (1 pc.)
Read more
Description

RIGOL DS1062CD digital oscilloscope provides exceptionally accurate waveform viewing and measurements in a compact, lightweight package. RIGOL DS1062CD digital oscilloscope is ideal for production tests, field service, research, design and other applications involving analog/digital circuits test and troubleshooting, as well as education and training.

RIGOL DS1062CD Digital Oscilloscope Features

  • Ultra compact design, small dimensions
  • Bandwidth: 60 MHz
  • Dual channels
  • Real-time sample rate: 400 MSa/s maximum
  • Equivalent time sample rate: 25 GSa/s maximum
  • Memory depth: 1 M points (Single Channel), 512 K points (Dual Channels)
  • 20 automatic measurements
  • Versatile trigger modes: Edge, Pulse, Slope, Video, Alternative, Pattern and Duration
  • Adjustable trigger sensitivity
  • 10 waveforms, 10 setups, BMP and CSV storage
  • Math functions: Add, Subtract, Multiply, FFT, Invert
  • Automatic self-calibration
  • Special digital filter and waveform recorder
  • Built-in hardware frequency counter
  • 5.7-inch color LCD display
  • Multi-language user interface, built-in help system

RIGOL DS1062CD Digital Oscilloscope User Manual

Download RIGOL DS1062CD digital oscilloscope user manual

RIGOL DS1062CD Digital Oscilloscope Technical Specifications

Bandwidth 60 MHz
Real time sample rate 400 MSa/s
Equivalent sample rate 25 GSa/s
Memory depth
  • 1 M points (single channel)
  • 512 K points (dual channels)
  • 512 K points (logic analyzer)
Rise time 5.8 ns
Time base range 5 ns/div - 50 s/div
Trigger modes Edge, Video, Pulse Width, Slope, Alternate
Input impedance 1 M Ω || 13 pF
Vertical sensitivity 2 mV/div - 5 V/div
Vertical resolution 8 bits
Maximum input voltage 400 V (DC+AC peak)
Scroll range 500 ms/div - 50 s/div
Automatic measurements Vpp, Vmax, Vmin,  Vtop, Vbase, Vamp,Vrms, Vavg, Vover, Vpre, Freq, Period, Rise, Fall, +Width, -Width, +Duty, -Duty, DelayA, DelayB
Math Add, Subtract, Multiply, FFt, Invert
Storage
  • internal: 10 waveforms and 10 setups
  • USB: BMP, CSV, waveforms and setups
Display 5.7-inch color LCD, 320 x 234
Power source 100-240 V / 50 VA max
Weight 2.3 kg

RIGOL DS1062CD Digital Oscilloscope Package

  • RIGOL DS1062CD digital oscilloscope (1 pc.)
  • Power cable (1 pc.)
  • Test leads (2 pcs.)
  • Logic analyzer module (1 pc.)
  • Logic analyzer clips (16 pcs.)
  • Logic analyzer data connector (1 pc.)
  • USB data cable (1 pc.)
  • User manual (1 pc.)
  • Software (1 pc.)
Specifications
Screen Size
  • 5.6" TFT display
Number of channels
  • dual-channel
  • with 16 channel logic analyzer
Storage Capacity
  • 1 MB
Bandwidth
  • 60 MHz
Type
  • desktop
  • mixed-signal
Sample Rate
  • 400 MSa/s
Delivery
Payment
Warranty

Customers Feedback

Chat with us
English Online Español Offline Русский Offline Technical Support Offline
See the entire catalogue
Sales chat
 English online
 Español offline
 Русский offline
 Technical Support offline
Contacts
Phone:
Email:
Compare
No items in compare list
Sales chat
Contacts
Compare
