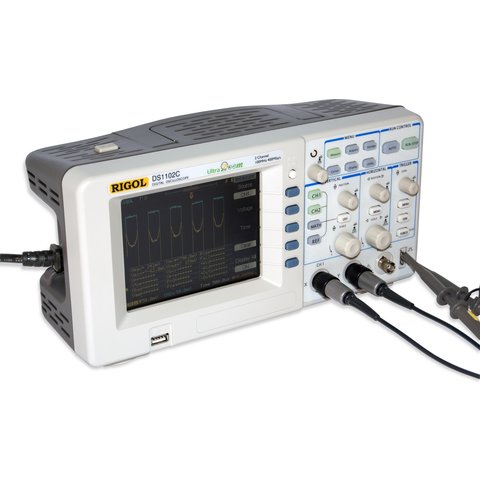

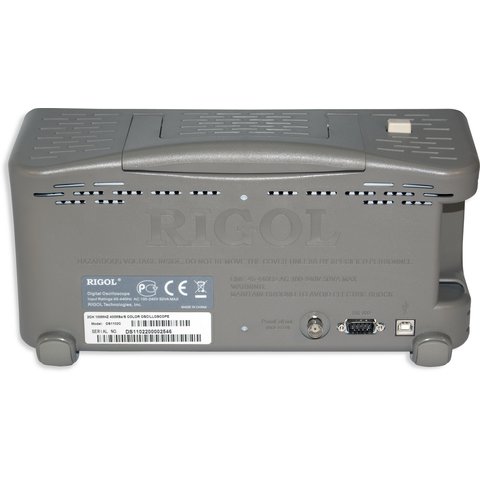

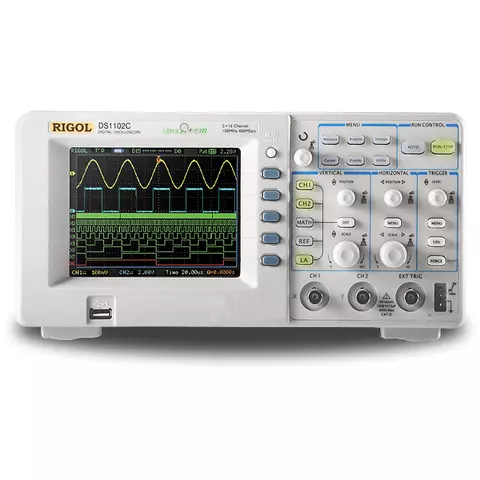

Digital Oscilloscope RIGOL DS1102C
id: 810634
Digital Oscilloscope RIGOL DS1102C
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
4.15 kg 110, 220 V Warranty: 36 months
Dual channel digital oscilloscope with bandwidth – 100 MHz, real-time sample rate – 400 MSa/s, equivalent sample rate – 25 GSa/s.
You may also like
Bestseller
Add to wishlist
Digital Oscilloscope RIGOL DS1102E
USD 449.00
USD 404.10
Add to wishlist
Add to cart
2 channels. 100 MHz bandwidth. 1 GSa/s maximum real-time sample rate, 25 GSa/s maximum equivalent sample rate. 1 Mpts memory depth.
Bestseller
Availability in stock:
HK
ID: 811977 7.1 kg 110, 220
Bestseller
Add to wishlist
Digital Oscilloscope SIGLENT SDS1102DL+
USD 300.00
Add to wishlist
Add to cart
2-channel digital oscilloscope with 100 MHz bandwidth, 500 MSa/s real-time sample rate, and 50 GSa/s equivalent sample rate, 32 K memory, LAN interface.
Bestseller
Availability in stock:
HK
ID: 891797 6 kg
Bestseller
Add to wishlist
Digital Oscilloscope SIGLENT SDS1104X-U
USD 399.00
USD 359.10
Add to wishlist
Add to cart
4-channel digital oscilloscope with 100 MHz bandwidth, up to 1 GSa/s real-time sampling rate, and up to 14 Mpts record length.
Bestseller
Availability in stock:
HK
ID: 898512 6 kg
Description
RIGOL DS1102C digital oscilloscope provides exceptionally accurate waveform viewing and measurements in a compact, lightweight package. RIGOL DS1102C is ideal for production tests, field service, research, design and other applications involving analog/digital circuits tests and troubleshooting, as well as education and training.
RIGOL DS1102C Digital Oscilloscope Features
- Ultra compact design, small dimensions
- 5.7' color LCD
- Memory depth: 1 M points (Single Channel), 512 K points (Dual Channels)
- Versatile trigger modes: Edge, Video, Pulse width, Slope, Alternative, Pattern, Duration
- Adjustable trigger sensitivity
- 400 MSa/s maximum real-time sample rate and 25 GSa/s maximum equivalent time sample rate
- 20 automatic measurements
- 10 waveforms, 10 setups, BMP and CSV storage
- Math functions: Add, Subtract, Multiply, FFT, Invert
- Automatic self calibration
- Special digital filter and waveform recorder
- Built-in hardware frequency counter
- Dual channels
- Standard interface: USB Device, RS-232; USB Host, to support USB flash memory and USB printer
- Multi-language user interface, built-in help system
RIGOL DS1102C Digital Oscilloscope User Manual
Download RIGOL DS1102C digital oscilloscope user manual
RIGOL DS1102C Digital Oscilloscope Technical Specifications
| Bandwidth | 100 MHz |
| Real time sample rate | 400 MSa/s |
| Equivalent sample rate | 25 GSa/s |
| Memory depth |
|
| Rise time | 3.5 ns |
| Time base range | 5 ns/div - 50 s/div |
| Trigger modes | Edge, Video, Pulse Width, Slope, Alternative, Pattern, Duration |
| Input impedance | 1 M Ω || 13 pF |
| Vertical sensitivity | 2 mV/div - 5 V/div |
| Vertical resolution | 8 bits |
| Maximum input voltage | 400 V (DC+AC peak) |
| Automatic measurements | Vpp, Vmax, Vmin, Vtop, Vbase, Vamp,Vrms, Vavg, Vover, Vpre, Freq, Period, Rise, Fall, +Width, -Width, +Duty, -Duty, DelayA, DelayB |
| Math | Add, Subtract, Multiply, FFt, Invert |
| Storage |
|
| Display | 5.7-inch color LCD, 320 x 234 |
| Power source | 100-240 V / 50 VA max |
| Weight | 2.3 kg |
RIGOL DS1102C Digital Oscilloscope Package
- RIGOL DS1102C digital oscilloscope (1 pc.)
- Power cable (1 pc.)
- Test leads (2 pcs.)
- USB data cable (1 pc.)
- User manual (1 pc.)
- Software (1 pc.)
Read more
Description
RIGOL DS1102C digital oscilloscope provides exceptionally accurate waveform viewing and measurements in a compact, lightweight package. RIGOL DS1102C is ideal for production tests, field service, research, design and other applications involving analog/digital circuits tests and troubleshooting, as well as education and training.
RIGOL DS1102C Digital Oscilloscope Features
- Ultra compact design, small dimensions
- 5.7' color LCD
- Memory depth: 1 M points (Single Channel), 512 K points (Dual Channels)
- Versatile trigger modes: Edge, Video, Pulse width, Slope, Alternative, Pattern, Duration
- Adjustable trigger sensitivity
- 400 MSa/s maximum real-time sample rate and 25 GSa/s maximum equivalent time sample rate
- 20 automatic measurements
- 10 waveforms, 10 setups, BMP and CSV storage
- Math functions: Add, Subtract, Multiply, FFT, Invert
- Automatic self calibration
- Special digital filter and waveform recorder
- Built-in hardware frequency counter
- Dual channels
- Standard interface: USB Device, RS-232; USB Host, to support USB flash memory and USB printer
- Multi-language user interface, built-in help system
RIGOL DS1102C Digital Oscilloscope User Manual
Download RIGOL DS1102C digital oscilloscope user manual
RIGOL DS1102C Digital Oscilloscope Technical Specifications
| Bandwidth | 100 MHz |
| Real time sample rate | 400 MSa/s |
| Equivalent sample rate | 25 GSa/s |
| Memory depth |
|
| Rise time | 3.5 ns |
| Time base range | 5 ns/div - 50 s/div |
| Trigger modes | Edge, Video, Pulse Width, Slope, Alternative, Pattern, Duration |
| Input impedance | 1 M Ω || 13 pF |
| Vertical sensitivity | 2 mV/div - 5 V/div |
| Vertical resolution | 8 bits |
| Maximum input voltage | 400 V (DC+AC peak) |
| Automatic measurements | Vpp, Vmax, Vmin, Vtop, Vbase, Vamp,Vrms, Vavg, Vover, Vpre, Freq, Period, Rise, Fall, +Width, -Width, +Duty, -Duty, DelayA, DelayB |
| Math | Add, Subtract, Multiply, FFt, Invert |
| Storage |
|
| Display | 5.7-inch color LCD, 320 x 234 |
| Power source | 100-240 V / 50 VA max |
| Weight | 2.3 kg |
RIGOL DS1102C Digital Oscilloscope Package
- RIGOL DS1102C digital oscilloscope (1 pc.)
- Power cable (1 pc.)
- Test leads (2 pcs.)
- USB data cable (1 pc.)
- User manual (1 pc.)
- Software (1 pc.)
