2-channel digital oscilloscope with 50 MHz bandwidth, 500 MSa/s real-time sample rate, and 50 GSa/s equivalent sample rate, 32 K memory, LAN interface.
Availability in stock:
HK
ID: 868901 6 kg 110, 220

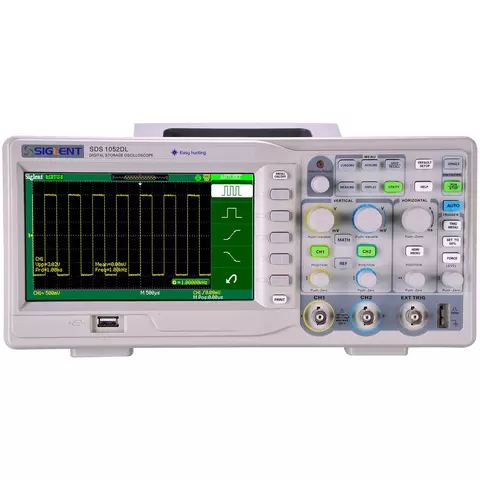

Digital Oscilloscope SIGLENT SDS1052DL
id: 844897
Digital Oscilloscope SIGLENT SDS1052DL
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Overview
Video
Video
Video
Video
Video
6.4 kg 110, 220 V Warranty: 24 months
Dual-channel digital oscilloscope with 50 MHz bandwidth, 500 MSa/s real-time sample rate, and 50 GSa/s equivalent sample rate. Memory: 32 K. Read more
You may also like
Description
SIGLENT SDS1052DL digital oscilloscope is a desktop dual-channel digital oscilloscope with a 50 MHz bandwidth. 7-inch color LCD of the oscilloscope ensures bright and vivid waveform representation and backlit buttons ensure user comfort. SIGLENT SDS1052DL has a multi-language user interface and online help.
SIGLENT SDS1052DL digital oscilloscope is a good choice for industrial control and measurements, R&D, electronic circuit design and testing and all other applications involving testing and troubleshooting, as well as education and training.
Software
Download SIGLENT SDS1052DL digital oscilloscope software
Features
- Bandwidth: 50 MHz
- 2 channels + 1 external triggering channel
- Real-time sample rate: 500 MSa/s
- Equivalent sample rate: 50 GSa/s
- Memory depth: 32 Kpts
- Vertical sensitivity range: 2 mV/div – 10 V/div
- Versatile trigger modes: Edge, Pulse, Slope, Video and Alternate
- 7" TFT color LCD
- Backlit buttons
- Unique digital filter and data recorder function
- USB host, USB device, RS-232
- Pass/Fail Output
- Multi-language menu (12 languages)
- Online help
- Compact design for saving desktop space.
Technical Specifications
| Bandwidth | 50 MHz | |
| Channels | 2 + 1 external triggering channel | |
| Real time sample rate | Single channel mode: 500 MSa/s Dual channel mode: 250 MSa/s |
|
| Equivalent sample rate | 50 GSa/s | |
| Memory depth | 32 Kpts | |
| Vertical sensitivity range | 2 mV/div – 10 V/div | Vertical resolution | 8 bits |
| Rise time | ≤7 ns | |
| Time base range | 10 ns/div – 50 s/div | |
| Input impedance | 1 MΩ || 17 pF | |
| Cursor measurements | Manual, Track, Auto measure | |
| Math | Add, Subtract, Multiply, Divide, FFT | |
| Trigger types | Edge, Pulse, Video, Slope, Alternate | |
| Input coupling | DC, AC, GND | |
| General Characteristics | ||
|---|---|---|
| Display | 7" TFT color LCD (480 × 234) | |
| Interface | USB host, USB device, RS-232, P/F output | |
| Power source | AC 100 ~ 240 V, 47 ~ 440 Hz, 50 VA Max | |
| Max. input voltage | 1 MΩ 17 pF 400 V (DC + PK-PK) CATI, CATII | |
Additional Information
Download SIGLENT SDS1052DL Data Sheet.
Video
We introduce the video review of SIGLENT SDS1000 series of oscilloscopes on the example of SIGLENT SDS1102CML Digital Oscilloscope.
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- SDS1052DL digital oscilloscope — 1 pc.
- Probes — 1 pair
- Power supply — 1 pc.
- Power cable — 1 pc.
- User manual — 1 pc.
- Software CD — 1 pc.
Specifications
| Screen Size |
|
| Number of channels |
|
| Storage Capacity |
|
| Bandwidth |
|
| Type |
|
| Sample Rate |
|
