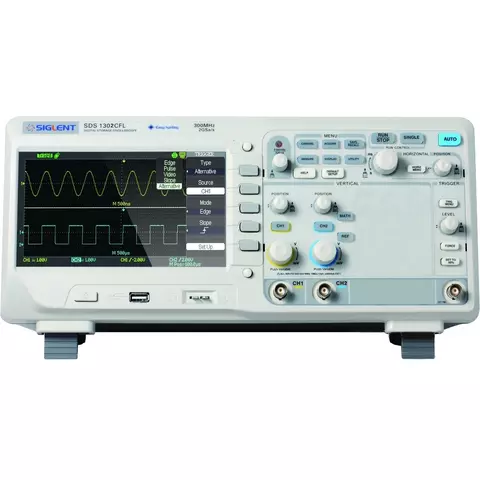

Digital Oscilloscope SIGLENT SDS1072CFL

id: 836639
7.5 kg 110, 220 V Warranty: 24 month (s)
Dual-channel desktop digital oscilloscope with 70 MHz bandwidth, 2 GSa/s real-time sample rate (single channel), 50 GSa/s equivalent sample rate, 24K memory.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

SIGLENT SDS1072CFL Digital Oscilloscope is a compact desktop dual-channel digital oscilloscope with a 70 MHz bandwidth. 7-inch TFT color liquid-crystal display of the oscilloscope ensures bright and vivid waveform representation and backlit buttons ensure user comfort. 24 K memory allows storing up to 20 waveforms and 20 setups. SIGLENT SDS1072CFL has a multi-language user interface and online help.

SIGLENT SDS1072CFL Digital Oscilloscope is a good choice for industrial control and measurements, R&D, electronic circuit design and testing and all other applications involving testing and troubleshooting, as well as education and training.

SIGLENT SDS1072CFL Digital Oscilloscope Features

  • Bandwidth: 70 MHz.
  • 2 channels + 1 external triggering channel.
  • Real-time sample rate: 2 GSa/s (single channel) / 1 GSa/s (dual channels) .
  • Equivalent sample rate: 50 GSa/s.
  • Memory: 24 K.
  • Vertical sensitivity range: 2 mV/div – 5 V/div.
  • Versatile trigger modes: Edge, Pulse, Slope, Video and Alternate.
  • Unique digital filter and data recorder function.
  • 7" TFT color LCD, bright and vivid waveform display.
  • USB Host, USB Device, RS-232.
  • Pass/Fail Output.
  • Multi-language display (12 languages): English, French, Spanish, Portuguese, German, Italian, Russian, Arabic, Japanese, Korean, Simplified Chinese, Traditional Chinese.
  • Online help.
  • Safety standards: EMC: EN61326; LVD: EN61010-1.
  • Compact design for saving desktop space.

SIGLENT SDS1072CFL Digital Oscilloscope Technical Specifications

Bandwidth 70 MHz
Channels 2 + 1 ext. ch.
Real time sample rate 2 GSa/s (Single channel)
1 GSa/s (Dual channels)
Equivalent sample rate 50 GSa/s
Memory depth 24 K
Vertical sensitivity range 2 mV/div – 5 V/div
Vertical resolution 8 bits
Rise time < 5 ns
Time base range 5 ns/div – 50 s/div
Input impedance 1 MΩ || 13 pF, 50 Ω
Cursor measurements Manual, Track, Auto measure
Math Add, Subtract, Multiply, Divide, Invert, FFT
Trigger modes Edge, Pulse, Video, Slope, Alternate
Storage Internal: 20 setups, 20 waveforms (storage/recall), 4 reference waveforms
External (USB): BMP, CSV, waveforms and setups
Input coupling DC, AC, GND
General Characteristics
Display 7" TFT color LCD (480 × 234)
Interface USB Host, USB Device, RS-232, P/F output
Power source 100 – 240 V AC, 45 Hz – 440 Hz, 50 VA max
Max. input voltage 400 V (Vpp)
Weight 4.5 kg
Dimensions 358 × 156 × 118 mm

Additional Information

Download SIGLENT SDS1072CFL Data Sheet.

Video

Youtube video

Youtube video

Youtube video

Youtube video

SIGLENT SDS1072CFL Digital Oscilloscope Package Contents

  • Digital oscilloscope unit (1 pc.)
  • Probe (1:1, 10:1) Problex (1 pc.)
  • Power cord (1 pc.)
  • USB cable (1 pc.)
Specifications
Screen Size
  • 7.0" TFT display
Number of channels
  • dual-channel
Type
  • desktop
Sample Rate
  • 2 GS/s
Bandwidth
  • 70 MHz
Storage Capacity
  • 24 KB
