Four-channel desktop digital oscilloscope with 100 MHz bandwidth, 2 GSa/s real-time sample rate (single channel), 50 GSa/s equivalent sample rate, 24K memory. Read more
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Oscilloscope SIGLENT SDS1104X U
Bestseller
Add to wishlist
ID: 898512
Digital Oscilloscope SIGLENT SDS1104X-U
5 (2)
USD 419.00
Add to wishlist
Add to cart
4-channel digital oscilloscope with 100 MHz bandwidth, up to 1 GSa/s real-time sampling rate, and up to 14 Mpts record length.
Availability in stock: HK
Shipping cost
ID: 898512 6.5 kg
4-channel phosphor oscilloscope with 100 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Availability in stock: HK
Shipping cost
ID: 874773 6 kg
4-channel phosphor oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Availability in stock: HK
Shipping cost
ID: 876393 6 kg
Description

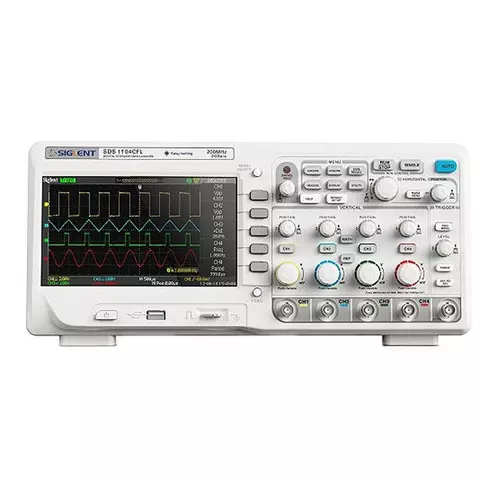

SIGLENT SDS1104CFL Digital Oscilloscope is a compact desktop four-channel digital oscilloscope with a 100 MHz bandwidth. 7-inch TFT color liquid-crystal display of the oscilloscope ensures bright and vivid waveform representation and backlit buttons ensure user comfort. 24 K memory allows storing up to 20 waveforms and 20 setups. SIGLENT SDS1104CFL has a multi-language user interface and online help.

SIGLENT SDS1104CFL Digital Oscilloscope is a good choice for industrial control and measurements, R&D, electronic circuit design and testing and all other applications involving testing and troubleshooting, as well as education and training.

Features

  • Bandwidth: 100 MHz.
  • 4 channels + 1 external triggering channel.
  • Real-time sample rate: 2 GSa/s. (single channel)
  • Equivalent sample rate: 50 GSa/s.
  • Memory: 24 K.
  • Vertical sensitivity range: 2 mV/div – 5 V/div.
  • Versatile trigger modes: Edge, Pulse, Slope, Video and Alternate.
  • Unique digital filter and data recorder function.
  • 7" TFT color LCD, bright and vivid waveform display.
  • USB Host, USB Device, RS-232.
  • Pass/Fail Output.
  • Multi-language display (12 languages): English, French, Spanish, Portuguese, German, Italian, Russian, Arabic, Japanese, Korean, Simplified Chinese, Traditional Chinese.
  • Online help.
  • Safety standards: EMC: EN61326; LVD: EN61010-1.
  • Compact design for saving desktop space.

Technical Specifications

Bandwidth 100 MHz
Channels 4 + 1 ext. ch.
Real time sample rate 2 GSa/s (Single channel)
1 GSa/s (Dual channels)
Equivalent sample rate 50 GSa/s
Memory depth 24 K
Vertical sensitivity range 2 mV/div – 5 V/div
Vertical resolution 8 bits
Rise time < 1.7 ns
Time base range 2,5 ns/div – 50 s/div
Input impedance 1 MΩ || 13 pF, 50 Ω
Cursor measurements Manual, Track, Auto measure
Math Add, Subtract, Multiply, Divide, Invert, FFT
Trigger modes Edge, Pulse, Video, Slope, Alternate
Storage Internal: 20 setups, 20 waveforms (storage/recall), 4 reference waveforms
External (USB): BMP, CSV, waveforms and setups
Input coupling DC, AC, GND
General Characteristics
Display 7" TFT color LCD (480 × 234)
Interface USB Host, USB Device, RS-232, P/F output
Power source 100 – 240 V AC, 45 Hz – 440 Hz, 50 VA max
Max. input voltage 400 V (Vpp)
Weight 4.5 kg
Dimensions 358 × 156 × 118 mm

Additional Information

Download SIGLENT SDS1104CFL Data Sheet.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Package Contents

  • Digital oscilloscope unit (1 pc.)
  • Probe (1:1, 10:1) Problex (4 pcs.)
  • Power cord (1 pc.)
  • USB cable (1 pc.)
Specifications
Screen Size
  • 7.0" TFT display
Number of channels
  • 4-channel
Bandwidth
  • 100 MHz
Type
  • desktop
Sample Rate
  • 2 GS/s
Storage Capacity
  • 24 KB
Video
Youtube video
Youtube video
Youtube video
