Digital Oscilloscope SIGLENT SDS2202
id: 850728
Digital Oscilloscope SIGLENT SDS2202
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Overview
Video
9 kg 110, 220 V Warranty: 36 months
Desktop 2-channel mixed-signal digital oscilloscope with 200 MHz bandwidth, 2 GSa/s real-time sample rate, 28 MB of memory depth. Built-in waveform generator. Logic analyzer. Read more
You may also like
2 channel Super Phosphor Oscilloscop with a 100 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.
Availability in stock:
HK
ID: 893077 9.8 kg
4 channel Super Phosphor Oscilloscop with a 200 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.
Availability in stock:
HK
ID: 893075 9 kg
Description

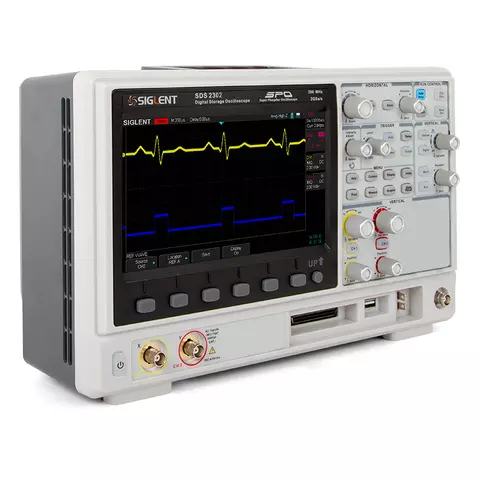

SIGLENT SDS2202 is a desktop dual-channel mixed-signal digital oscilloscope with maximum bandwidth of 200 MHz. 8-inch TFT color LCD of the oscilloscope ensures bright and vivid waveform representation and backlit buttons ensure user comfort. SIGLENT SDS2202 has up to 28 MB of memory and waveform capture rate up to 110,000 waveforms per second.
Features
- Bandwidth: 200 MHz.
- 2 channels.
- Real-time sample rate: 2 GSa/s.
- Memory depth: 28 MB.
- Built-in 25 MHz function/arbitrary waveform generator.
- logic analyzer.
- Innovative SPO (Super Phosphor Oscilloscope) technology for increased measurement accuracy and rate.
- Vertical sensitivity range: 2 mV/div – 10 V/div.
- Trigger types: Edge, Pulse, Video, Slope, Interval, Runt, Window, Pattern, DropOut, Series Protocol Trigger.
- 8" TFT color LCD, bright and vivid waveform display.
- Support for HDTV trigger.
- Support history function and segmented memory with up to 80,000 frames.
- Hardware-based zoom function.
- High speed pass/fail function technology.
- 32 kinds of automatic waveform measurements with support measurement statistics function.
- Advanced waveform math operations (FFT, differential, integral and square root)
- Complete connectivity: USB host, USB device (USBTMC, PictBridge, LAN (VXI-11), EXT TRIG, PASS/FAIL, TRIG OUT.
- Multi-language user interface and built-in online help system.
Video
Technical Specifications
| Bandwidth | 200 MHz | |
| Channels | 2 | |
| Real time sample rate | Max: 2 GSa/s | |
| Memory depth | 28 MB | |
| Vertical sensitivity range | 2 mV/div – 10 V/div | Vertical resolution | 8 bits |
| Rise time | ≤1.2 ns | |
| Time base range | 1.0 ns/div – 50 s/div | |
| Math | A+B, A-B, AxB, A/B, FFT, Diff, Intg, Sqrt | |
| Trigger types | Edge, Pulse, Video, Slope, Interval, Runt, Window, Pattern, DropOut, Series Protocol Trigger | |
| Storage | Internal: 2 sets of reference waveforms, 20 sets of setups, 20 sets of captured waveforms (store/recall function) | |
| Input coupling | DC, AC, GND | |
| General Characteristics | ||
|---|---|---|
| Display | 8" TFT color LCD (800 × 480) | |
| Interface | USB Host (supports USB-GPIB), USB Device, LAN, EXT TRIG, Aux (TRIG OUT/Pass/Fail) | |
| Power source | 100 ~ 240 V AC | |
| Weight | 3.5 kg | |
| Dimensions | 352 × 112 × 224 mm | |
Additional Information
Download SIGLENT SDS2202 Data Sheet.
Package Contents
- SIGLENT SDS2202 oscilloscope (1 pc.)
- 1:1/10:1 probes (2 pcs.)
- USB cable (1 pc.)
- Power cable (1 pc.)
- CD with user manual and software (1 pc.)
