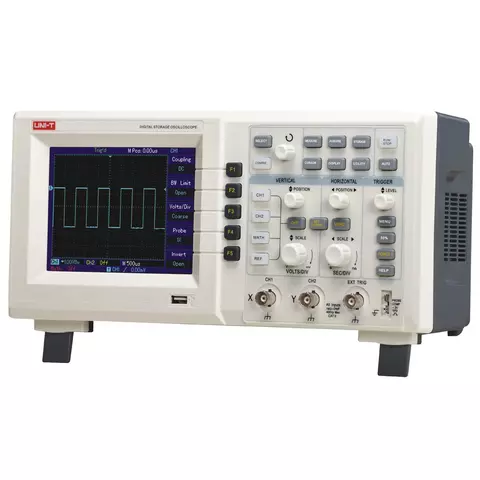

Digital Oscilloscope UNI-T UTD2042CE

id: 834639
Digital Oscilloscope UNI-T UTD2042CE
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
7 kg 110, 220 V Warranty: 24 months
Dual-channel digital oscilloscope with 40 MHz bandwidth, 1 GSa/s real-time sample rate, 50 GSa/s equivalent sample rate, 2 × 512 k memory.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Oscilloscope RIGOL DS1102E
Add to wishlist
Digital Oscilloscope RIGOL DS1102E
USD 449.00
USD 404.10
Add to wishlist
Add to cart
2 channels. 100 MHz bandwidth. 1 GSa/s maximum real-time sample rate, 25 GSa/s maximum equivalent sample rate. 1 Mpts memory depth.
Availability in stock: HK
Shipping cost
ID: 811977 7.1 kg 110, 220
Description

UNI-T UTD2042CE Digital Oscilloscope is a compact and lightweight dual-channel digital oscilloscope (40 MHz). Convenient 5.7-inch color liquid-crystal display of the oscilloscope ensures bright and sharp waveform representation.

UNI-T UTD2042CE Digital Oscilloscope is a good choice for production tests, R&D, design and all other applications involving testing and troubleshooting, as well as education and training.

UNI-T UTD2042CE Digital Oscilloscope Features

  • Bandwidth: 40 MHz.
  • 2 analog channels.
  • Real-time sample rate: 1 GSa/s.
  • Memory: 2 × 512 k.
  • 28 auto measurements.
  • Special digital filter and waveform recorder.
  • 5.7-inch color LCD.
  • Vertical sensitivity: 2 mV/div – 5 V/div.
  • Versatile trigger modes: Edge, Pulse, Video and Alternate.
  • Math functions: Add, Subtract, Multiply, Divide, FFT.
  • Standard interface: USB Host & Device, to support USB flash memory and USB printer.
  • Optional interface: LAN.
  • Compact design, small dimensions, light weight.

UNI-T UTD2042CE Digital Oscilloscope Technical Specifications

Bandwidth 40 MHz
Channels 2
Real time sample rate 1 GSa/s
Equivalent sample rate 50 GSa/s
Memory 2 × 512 k
Vertical sensitivity range 2 mV/div – 5 V/div
Rise time ≤ 8.7 ns
Time base range 5 ns/div – 50 s/div
Math Add, Subtract, Multiply, Divide, FFT
Trigger modes Edge, Pulse, Video and Alternate
Storage 10 setups and 10 waveforms (.bmp, .csv)
General Characteristics
Display 5.7" (145 mm) color LCD (320 × 240), 64 k
Interface Standard: USB Host / Device
Optional: LAN
Power source 100–240 V AC RMS, 45 Hz – 440 Hz, CAT II
Weight 2.5 kg
Dimensions 320 × 150 × 130 mm

UNI-T UTD2042CE Digital Oscilloscope User Manual

Download UNI-T UTD2042CE Digital Oscilloscope User Manual & Software Installation Guide.

UNI-T UTD2042CE Digital Oscilloscope Sofware

Download UNI-T UTD2042CE Digital Oscilloscope Sofware.

UNI-T UTD2042CE Digital Oscilloscope Package Contents

  • UNI-T UTD2042CE Digital Oscilloscope (1 pc.)
  • Probes (2 pcs.)
    • 1x
    • 10x
  • Power Cord (1 pc.)
  • User Manual & Software Installation Guide (1 pc.)
Read more
Description

UNI-T UTD2042CE Digital Oscilloscope is a compact and lightweight dual-channel digital oscilloscope (40 MHz). Convenient 5.7-inch color liquid-crystal display of the oscilloscope ensures bright and sharp waveform representation.

UNI-T UTD2042CE Digital Oscilloscope is a good choice for production tests, R&D, design and all other applications involving testing and troubleshooting, as well as education and training.

UNI-T UTD2042CE Digital Oscilloscope Features

  • Bandwidth: 40 MHz.
  • 2 analog channels.
  • Real-time sample rate: 1 GSa/s.
  • Memory: 2 × 512 k.
  • 28 auto measurements.
  • Special digital filter and waveform recorder.
  • 5.7-inch color LCD.
  • Vertical sensitivity: 2 mV/div – 5 V/div.
  • Versatile trigger modes: Edge, Pulse, Video and Alternate.
  • Math functions: Add, Subtract, Multiply, Divide, FFT.
  • Standard interface: USB Host & Device, to support USB flash memory and USB printer.
  • Optional interface: LAN.
  • Compact design, small dimensions, light weight.

UNI-T UTD2042CE Digital Oscilloscope Technical Specifications

Bandwidth 40 MHz
Channels 2
Real time sample rate 1 GSa/s
Equivalent sample rate 50 GSa/s
Memory 2 × 512 k
Vertical sensitivity range 2 mV/div – 5 V/div
Rise time ≤ 8.7 ns
Time base range 5 ns/div – 50 s/div
Math Add, Subtract, Multiply, Divide, FFT
Trigger modes Edge, Pulse, Video and Alternate
Storage 10 setups and 10 waveforms (.bmp, .csv)
General Characteristics
Display 5.7" (145 mm) color LCD (320 × 240), 64 k
Interface Standard: USB Host / Device
Optional: LAN
Power source 100–240 V AC RMS, 45 Hz – 440 Hz, CAT II
Weight 2.5 kg
Dimensions 320 × 150 × 130 mm

UNI-T UTD2042CE Digital Oscilloscope User Manual

Download UNI-T UTD2042CE Digital Oscilloscope User Manual & Software Installation Guide.

UNI-T UTD2042CE Digital Oscilloscope Sofware

Download UNI-T UTD2042CE Digital Oscilloscope Sofware.

UNI-T UTD2042CE Digital Oscilloscope Package Contents

  • UNI-T UTD2042CE Digital Oscilloscope (1 pc.)
  • Probes (2 pcs.)
    • 1x
    • 10x
  • Power Cord (1 pc.)
  • User Manual & Software Installation Guide (1 pc.)
Specifications
Screen Size
  • 5.6" TFT display
Number of channels
  • dual-channel
Storage Capacity
  • 1 MB
Bandwidth
  • 40 MHz
Type
  • desktop
Sample Rate
  • 1 GS/s
