Digital Vibration Tester UNI-T UT315A

id: 894018
Digital Vibration Tester UNI-T UT315A
Overview
Description
Delivery
Payment
Warranty
USD 291.19
Add to cart
Overview
Rate product
1.2 kg
Availability in stock: HK
Warranty: 24 months
A tool used to measure displacement (1~1.999 mm), velocity (0~19.99 cm/s), and acceleration of rotating and reciprocating machinery (0~199.9m/s²). Read more
USD 291.19
Add to cart
Compare
Compare
USD 291.19
Add to cart
Impossible to estimate the shipping cost
Note! This item is shipped within 10 working days.
Description

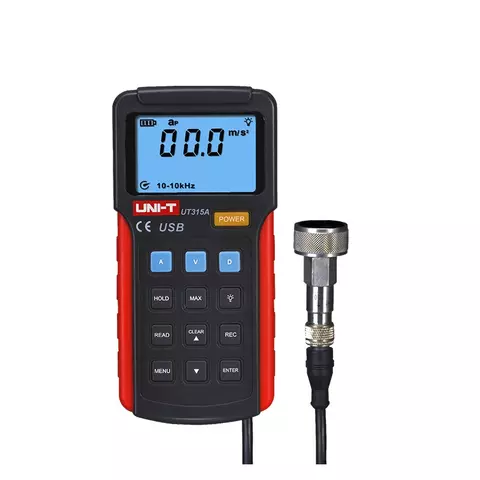

UNI-T UT315A is a portable digital vibration tester designed for measuring displacement, velocity, and acceleration of rotating and reciprocating machinery. UNI-T UT315 can be widely used in mechanical manufacturing, electric power, petroleum chemical industry, metallurgy, aerospace and other fields.

Features

  • Large backlit LCD.
  • Acceleration, velocity and displacement measurement.
  • Highly sensitive probes provide accurate measurements.
  • The short and long probes are suitable for measurement in various places.
  • Comes with a magnetic chuck.
  • Low battery indication.
  • Auto power off.
  • Max. value display.
  • USB communication.
  • Data hold and data storage.

Technical Specifications

Acceleration measurement (O-P) 0~199.9 m/s2; frequency response: 10 Hz-10 kHz, accuracy: ±(5%+0.2 m/s2)
Velocity measurement (RMS) 0~19.99 cm/s; frequency response: 10 Hz~1 kHz, accuracy: ±(5%+0.02 cm/s)
Displacement measurement (P-P) 1~1.999 mm; frequency response: 10 Hz~500 Hz, accuracy: ±(5%+0.002 mm)
Battery life up to 8 hours of continuous measuring
Display count 2000
Power 9V battery (6F22)
Weight 395 g
Dimensions 166 mm × 80 mm × 30 mm

User Manual

PDF  Download UNI-T UT315A User Manual.

Package Contents

  • Digital Vibration Tester UNI-T UT315A — 1 pc.
  • User Manual — 1 pc.
  • Long Probe — 1 pc.
  • Short Probe — 1 pc.
  • Magnetic Chuck — 1 pc.

Note! Batteries are not included in the package.
