Overview
2 kg Warranty: 24 months
Powerful three phase True RMS instrument designed for analyzing the energy and power quality of power systems.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

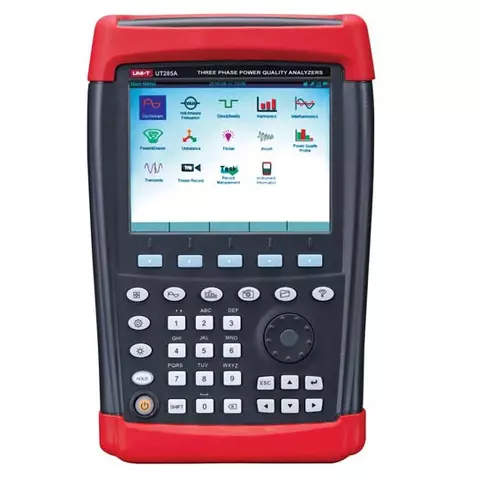

UNI-T UT285A is a powerful three phase True RMS instrument designed for analyzing the energy and power quality of power systems.

Features

  • Easy setup
  • Power Quality Profile mode to get a general impression of the power quality of a power system
  • Other measurement functions, such as Dips and Swells, Harmonics, Flicker, Unbalance, Inrush Current
  • Analyze power quality on PC by using the accompanied AccupoView software
  • Kensington lock

Technical Specifications

Parameter Range Accuracy Resolution
Vrms 0.1~1000 V 0.1% 0.1 V
Arms 3000 A 1% 0.01 A
Power 9000 KW 1% 0.1 W
Frequency 45~65 Hz 0.01 Hz 0.001 Hz
Phase Angle 0~359.99° ±0.1° 0.01°
Harmonics 0~50 times A Class 0.01 V
Interharmanics 0~50 times A Class 0.01 V
Voltage Unbalance 0~50% 0.2% 0.01%
Current Unbalance 0~50% 1% 0.01%
Flicker 0.00~20.00 5% 0.01
Dip / Swell / Interrupt 0.0~200% 0.1 V 0.01 V
General
Power Li-battery 7.4 V, 3000 mAh
Size 263 × 168 × 60 mm
Weight 1950 g

Package Contents

  • UNI-T UT285A Energy and Power Quality Analyzer – 1 pc.
  • Flexible current probe – 4 pcs.
  • Battery – 1 pc.
Read more
Description

UNI-T UT285A is a powerful three phase True RMS instrument designed for analyzing the energy and power quality of power systems.

Features

  • Easy setup
  • Power Quality Profile mode to get a general impression of the power quality of a power system
  • Other measurement functions, such as Dips and Swells, Harmonics, Flicker, Unbalance, Inrush Current
  • Analyze power quality on PC by using the accompanied AccupoView software
  • Kensington lock

Technical Specifications

Parameter Range Accuracy Resolution
Vrms 0.1~1000 V 0.1% 0.1 V
Arms 3000 A 1% 0.01 A
Power 9000 KW 1% 0.1 W
Frequency 45~65 Hz 0.01 Hz 0.001 Hz
Phase Angle 0~359.99° ±0.1° 0.01°
Harmonics 0~50 times A Class 0.01 V
Interharmanics 0~50 times A Class 0.01 V
Voltage Unbalance 0~50% 0.2% 0.01%
Current Unbalance 0~50% 1% 0.01%
Flicker 0.00~20.00 5% 0.01
Dip / Swell / Interrupt 0.0~200% 0.1 V 0.01 V
General
Power Li-battery 7.4 V, 3000 mAh
Size 263 × 168 × 60 mm
Weight 1950 g

Package Contents

  • UNI-T UT285A Energy and Power Quality Analyzer – 1 pc.
  • Flexible current probe – 4 pcs.
  • Battery – 1 pc.
