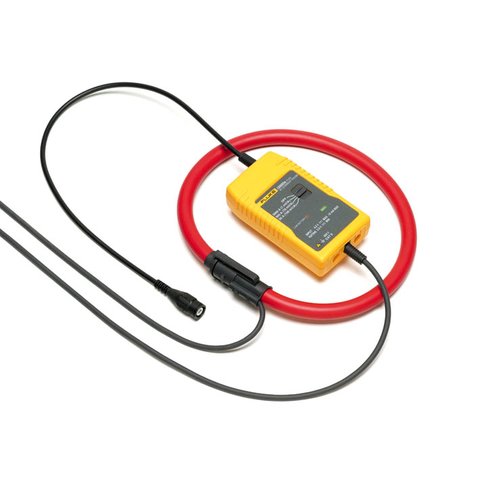

Flexible AC Current Clamp Fluke i3000s Flex-24
id: 812028
Flexible AC Current Clamp Fluke i3000s Flex-24
Overview
Description
Delivery
Payment
Warranty
USD 750.00
Contact
sales team
sales team
Overview
USA brand
0.61 kg Warranty: 12 months
Flexible AC current clamp (24" / 610 mm). Three ranges: 30 A, 300 A & 3000 A; 1, 10 or 100 mV/A output.
Buy wholesale and save
Description
Fluke i3000s Flex-24 is an AC current clamp utilizing the Rogowski principle. It can be used to measure currents up to 3000 A when used in conjunction with oscilloscopes, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas.
Fluke i3000s Flex-24 – Features
- Three ranges: 30 A, 300 A & 3000 A; 1, 10 or 100 mV/A output
- Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
- Maximum conductor diameter 178 mm (7 in.)
- CAT III 600V safety rating
Fluke i3000s Flex-24 – Manuals
Download Fluke i3000s Flex-24 user manual
Fluke i3000s Flex-24 – Technical Specifications
| Electrical Specifications | |
|---|---|
| Current ranges | 30 A / 300 A / 3000 A AC rms |
| Output sensitivity (AC-coupled) | 100 mV / 10 mV / 1 mV per A |
| Load impedance | 100 kΩ minimum |
| Accuracy | at +25 °C ± 1 % of range (45 Hz to 65 Hz) |
| Linearity | 10 % to 100 % of range ± 0.2 % of reading |
| Noise | 8 mV AC rms (30 A) / 2 mV AC rms (300 A, 3000 A) |
| Frequency range | 10 Hz to 50 kHz (-3 dB) |
| Phase error | < ± 1 º (45 Hz to 65 Hz) ± 10 º (at 20 kHz) |
| Position sensitivity | with cable > 25 mm from the coupling ± 2 % of range |
| External field | with cable > 200 mm from the head ± 1 % of range |
| Power supply | 2 x AA/MN 1500/LR6 Alkaline, , 400 hours, low battery indicator or dedicated external power supply |
| Temperature coefficient | ± 0.08% of reading per °C |
| General Specifications | |
| Head circumference | 610 mm (24 in) |
| Head cable diameter | 14.3 mm (0.56 in) |
| Head bend radius | 38.1 mm (1.5 in) |
| Cable length (head to electronics) | 2 m (6.56 ft) |
| Output connection | 0.5 m cable terminated with safety BNC connector |
| Operating temperature range | -20 °C to +90 °C (-4 °F to 190 °F) (head) -20 °C to +85 °C (-4 °F to 185 °F) (electronics) |
| Storage temperature range | -40 °C to +105 °C (-40 °F to 221 °F) (head) -20 °C to +85 °C (-4 °F to 185 °F) (electronics) |
| Operating humidity | 15 % to 85 % (non-condensing) |
| Weight | 180 g (0.396 lb) (head) 190 g (0.419 lb) (electronics) |
| Safety standards | BS EN 61010-1: 2001 BS EN 61010-2-032: 2002 BS EN 61010-031: 2002 600 V rms, Category III, Pollution Degree 2 |
| EMC standards | EN 61326: 1998 +A1, A2, & A3 |
Read more
