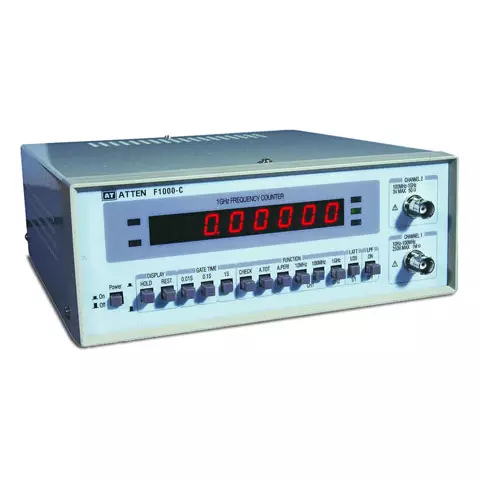

Frequency Counter ATTEN F1000C
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
3.4 kg 220 V Warranty: 6 months
This unit measures frequency within 10Hz to 1000MHz range. Period measurement.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

This unit measures frequency within 10 Hz to 1000 MHz range. High precision, sensitivity and versatility makes it extremely valuable tool for scientists, engineers, experimentalists and experts in the field of communications.

ATTEN F1000C Frequency Counter Features

  • 8-digit LED display
  • Large-scale microprocessor
  • Microprocessor controlled station. It allows to obtain high accuracy and resolution measurement within short time
  • Attenuator
  • Totaling measurements
  • Self-checking function
  • Period measurement

ATTEN F1000C Frequency Counter Manual

Download ATTEN F1000C Frequency Counter User Manual

ATTEN F1000C and F27000C Frequency Counter Comparative Specifications

Model Frequency Range
AT-F1000C 10 Hz ~ 1000 MHz
AT-F2700C 10 Hz ~ 2700 MHz

ATTEN F1000C Frequency Counter Technical Specifications

Display 8 digits
Frequency range 10 Hz to 2700 MHz
Input impedance  1 MΩ channel 1,
50 Ω channel 2
Power  220 V ±10% 50~60 Hz
Dimensions (W × H × D), mm 230 × 210 × 76
Weight, kg 1.8
1st channel
Frequency range 10 Hz ~ 8 MHz: 75 mV
8 MHz ~ 10 MHz: 30 mV
10 MHz ~ 80 MHz: 30 mV
80 MHz ~ 100MHz: 30 mV
2nd channel
Frequency range 100 MHz ~ 1000 MHz: 30 mV
Read more
Description

This unit measures frequency within 10 Hz to 1000 MHz range. High precision, sensitivity and versatility makes it extremely valuable tool for scientists, engineers, experimentalists and experts in the field of communications.

ATTEN F1000C Frequency Counter Features

  • 8-digit LED display
  • Large-scale microprocessor
  • Microprocessor controlled station. It allows to obtain high accuracy and resolution measurement within short time
  • Attenuator
  • Totaling measurements
  • Self-checking function
  • Period measurement

ATTEN F1000C Frequency Counter Manual

Download ATTEN F1000C Frequency Counter User Manual

ATTEN F1000C and F27000C Frequency Counter Comparative Specifications

Model Frequency Range
AT-F1000C 10 Hz ~ 1000 MHz
AT-F2700C 10 Hz ~ 2700 MHz

ATTEN F1000C Frequency Counter Technical Specifications

Display 8 digits
Frequency range 10 Hz to 2700 MHz
Input impedance  1 MΩ channel 1,
50 Ω channel 2
Power  220 V ±10% 50~60 Hz
Dimensions (W × H × D), mm 230 × 210 × 76
Weight, kg 1.8
1st channel
Frequency range 10 Hz ~ 8 MHz: 75 mV
8 MHz ~ 10 MHz: 30 mV
10 MHz ~ 80 MHz: 30 mV
80 MHz ~ 100MHz: 30 mV
2nd channel
Frequency range 100 MHz ~ 1000 MHz: 30 mV
Specifications
Max. frequency
  • up to 1 GHz
