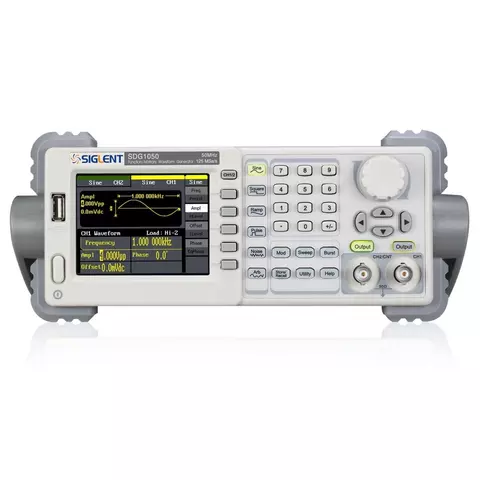

Function Arbitrary Waveform Generator SIGLENT SDG1050
Rate product
Brand: SIGLENT
5 kg Warranty: 36 months
Dual-channel function/arbitary waveform generator, with 50 MHz frequency, 125 MS/s sample rate, 14 bits vertical resolution, 16 Kpts waveform length, modulation functions: AM, FM, PM, FSK, ASK, PWM, Sweep, Burst. Read more
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Function Arbitrary Waveform Generator SIGLENT SDG1062X
Bestseller
Add to wishlist
ID: 869148
Function/Arbitrary Waveform Generator SIGLENT SDG1062X
5 (1)
USD 459.00
Add to wishlist
Add to cart
Dual-channel function/arbitary waveform generator with 60 MHz max. output frequency, 150 MSa/s sample rate, 14 bits vertical resolution.
Availability in stock: HK
Shipping cost
ID: 869148 6 kg 110, 220
Description

SDG1000 series arbitrary waveform / function generator is SIGLENT new family member with friendly design: 3.5 inch LCD display; built-in English language; online help function; support of the USB and internal storage, and files management; special connection terminal.

SIGLENT SDG1050 is a arbitrary waveform / function generator which is designed for providing of the stable, precise, pure and low distortion signal. The user-friendly interface design and panel layout of the SIGLENT SDG1050 gives users exceptional experience. The remote control of the generator can be easily done through different standard configuration interfaces, which provides more solutions for users.

Features

  • 9 standard waveforms:
    • Sine
    • Square
    • Ramp
    • Pulse
    • ExRise
    • ExpFall
    • Sinc
    • Noise
    • DC
  • DDS technology, dual channel output
  • 125 MSa/s sample rate, 14-bit vertical resolution
  • Unique channel coupling and duplication function
  • Built-in accurate frequency counter enables to measure range
  • High precision clock (1 ppm & 10 ppm) (optional)
  • Supplied with powerful arbitrary editable software
  • Remote control support

Technical Specifications

Standard waveforms
Waveforms Sine, Square, Triangular, Pulse, Gaussian Noise
Arbitrary waveforms
Sine 1 μHz ~ 50 MHz
Square 1 μHz ~ 25 MHz
Pulse 500 μHz ~ 5 MHz
Ramp/Triangular 1 μHz ~ 300 KHz
Gaussian white noise 50 MHz (-3 dB)
Arbitrary waveform 1 μHz ~ 5 MHz
Max. output frequency 50 MHz
Sample rate 125 MSa/s
Modulation AM, FM, PM, FSK, ASK, PWM, Sweep, Burst
Square wave characteristic
Rise/fall time <12 ns
Overshoot <5%
Duty cycle 1 μHz ~ 10 MHz 20%~80%
10 MHz ~ 20 MHz 40% ~ 60%
20 MHz ~ 25 MHz 50%
Jitter 0.1% of period
Pulse wave characteristics
Pulse width 1800 s, Max. 16 ns, Min. 8 ns resolution
Overshoot <5%
Jitter 8 ns
Arbitrary wave characteristics
Waveform length 16 K points
Vertical resolution 14 bits
Sample rate 125 MSa/s
Minimum rising /falling time 7 ns
Jitter (pk-pk) 8 ns (typical)
Output characteristics
Amplitude CH1 2 mVpp ~ 10 Vpp (50Ω,≤10MHz)
2 mVpp ~ 5 Vpp (50Ω,>10MHz)
4 mVpp ~ 20 Vpp (high impedance,≤10MHz)
4 mVpp ~ 10 Vpp (high impedance, >10 MHz)
CH2 2 mVpp ~ 3 Vpp (50 Ω)
4 mVpp ~ 6 Vpp (high impedance)
Accuracy (100 kHz sine) CH1 ±(0.3dB+1mVpp of setting value)
CH2 ±(0.3dB+1mVpp of setting value)
Amplitude flatness (compared to 100 kHz sine, 5 Vpp) ±0.3 dB
DC offset
Range CH1 ±5V(50Ω) ±10V(high impedance)
CH2 ±1.5V(50Ω) ±3V(high impedance)
Accuracy CH1 ±(|setting offset value|*1%+3mV)
CH2 ±(|setting offset value|*1%+3mV
AM modulation
Carrier waveforms Sine, Square, Ramp, Arbitrary (except DC)
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arbitrary (2 mHz ~ 20 kHz)
FM modulation
Carrier waveforms Sine, Square, Ramp, Arbitrary (except DC)
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arbitrary (2 mHz ~ 20 kHz)
PM modulation
Carrier waveforms Sine, Square, Ramp, Arbitrary (except DC)
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Noise, Arbitrary (2 mHz ~ 20 kHz)
Phase deviation 0° to 360°
ASK modulation
Carrier waveforms Sine, Square, Ramp, Arbitrary (except DC)
Source Internal / external
Modulating waveforms 50% duty cycle square
FSK modulation
Carrier waveforms Sine, Square, Ramp, Arbitrary (except DC)
Source Internal / external
Modulating waveforms 50% duty cycle square
PWM modulation
Frequency 500 μHz ~ 20 kHz
Source Internal / external
Modulating waveforms Sine, Square, Ramp, Arbitrary (except DC)
Sweep
Carrier waveforms Sine, Square, Ramp, Arbitrary (except DC)
Type Linear/logarithmic
Direction up or down
Start/Stop Frequency 1 μHz to 100 MHz
Sweep time 1 ms ~ 500 s
Trigger source Manual, external, internal
Burst
Waveforms Sine, Square, Ramp, Pulse, Arbitrary (except DC)
Type Count (1~50,000 periods), infinite
Internal period 1 μs ~ 500 s
Gate source External trigger
Trigger source Manual, External or Internal
General specification
Display 3.5-inch TFT LCD (320 × 240 pixels)
Interfaces USB Host, USB Device, LAN (optional)
Power 100 V ～ 240 V (45 Hz ～ 66 Hz), CATII
Dimentions 229 × 105 × 281 mm
Weight 3.4 kg

Additional Information

Download SIGLENT SDG1050 Data Sheet.

Video

Youtube video

Package Contents

  • SIGLENT SDG1050 arbitrary / function waveform generator (1 pc.)
  • Power cord (1 pc.)
  • USB cable (1 pc.)

Optional Accessories

  • BNC cable
  • GPIB-USB and LAN interfaces
Specifications
Channels
  • dual channel
Max. signal frequency
  • 50 MHz
